Bomford Eagle Arm Mower
The Eagle flail mower features a telescopic outer arm, giving it a maximum reach of 8.0 metres and the whole arm is mounted on a kingpost so that it can be slewed through 180 degrees for double sided, left or right-hand cutting.
The Eagle can be specified with either a gear or a piston system, and features wraparound steel hoses on the first arm and kingpost for durability and improved hose routing, along with weight saving.
Features Include:
- 8m reach
- Left and right handed cutting
- 137 l/min independent hydraulic system
- 1.2m, 1.5m or 2m cutting head

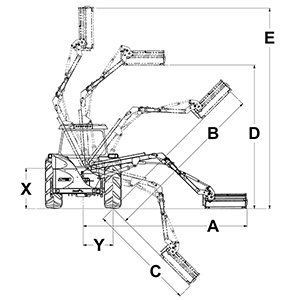

Bomford Eagle Mower – Working Reach Dimensions
Head Used for Calculations: 1.2m Pro Cut
Eagle 8.0m T (26'4")
A
8.0m (26'3")
B
7.8m (25'7")
C
6.2m (20'4")
D
7.0m (23')
E
8.8m (28'11")
X
1.2m (3'11")
Y
1.2m (3'11")
Specifications
Attachments
Controls
Photos
Video
Specifications
| MODELS | Eagle 8.0m T (26’4″) | ||
| Tractor Requirements | |||
| Minimum Horse Power | 160hp | ||
| Minimum Weight | 6500kg / 14330lbs | ||
| Overall Machine Parameters | |||
| Machine Weight with Oil and Head | 2590kg / 5710lbs | ||
| Capacity of Oil Tank | 138 Litres / 37USG | ||
| Weight of Machine with Oil but Without Head | 2230kg / 4916lbs | ||
| Hydraulic System | |||
| System Capability | 85hp | ||
| Pump Flow Rate | 137 Litres / 36USG | ||
| Pump Type (Gear / Piston / Helical) | Gear | ||
| Pump Arrangement (Twin / Inline) | Twin | ||
| Independent Hydraulics | Standard | ||
| Oil Cooler | Not Available | ||
| Arm Features and Main Frame | |||
| Forward Arm | Not Available | ||
| Forward Arm Reach | Not Available | ||
| Telescopic Arm | Standard | ||
| Telescopic Arm Stroke | 1300mm / 4’3″ | ||
| Power Slew | Standard | ||
| Power Slew Angle | 180° | ||
| Gravity Breakout Protection | Not Available | ||
| Hydraulic Breakout Protection | Standard | ||
| Arm Float – Manual | Standard | ||
| Arm Float – Electronic | Standard | ||
| Head Float – Manual | Standard | ||
| Head Float – Electronic | Standard | ||
| Left Hand Cutting | Standard | ||
| Right Hand Cutting | Standard | ||
| Left and Right Cutting | Standard | ||
Attachments
| MODELS | Eagle 8.0m T (26’4″) | ||
| Base Mounting Options | |||
| Front Mount | Not Available | ||
| Mid Mount | Not Available | ||
| Rear Mount | Standard | ||
| Three Point Linkage (CAT II) | Not Available | ||
| Axle Bracket | Standard | ||
| Arm Attachments Available | |||
| Variable Track Bracket (VTB) | Not Available | ||
| Sheartrim Cutter Bar | Optional | ||
| Pro-Saw | Optional | ||
| Ditch Cleaner | Optional | ||
| Rotary Head | Optional | ||
| Cutting Heads | |||
| 1.2m Pro Cut with 115mm Roller | Optional | ||
| 1.2m Pro Cut with 150mm Roller | Optional | ||
| 1.5m Pro Cut with 115mm Roller | Optional | ||
| 1.5m Pro Cut with 150mm Roller | Optional | ||
| 1.2m Pro Cut ISMP with 115mm Roller | Optional | ||
| 1.2m Pro Cut ISMP with 150mm Roller | Optional | ||
| 2m HD Head | Optional | ||
| Accessories | |||
| Road Lights | Standard | ||
| Debris Blower | Not Available | ||
| Warning Arrow – Magnetic/Fixed | Optional | ||
| Cab Guard Kit | Standard | ||
Controls
| MODELS | Eagle 8.0m T (26’4″) | ||
| Controls | |||
| Cable Control (CC) | Not Available | ||
| Low Pressure Hydraulics (LPH) | Not Available | ||
| Electronic Proportional Control (EPP) | Not Available | ||
| Intelligent Control System (ICS) | Standard | ||
| Cable Rotor Reverse | Not Available | ||
| Electronic Rotor Reverse | Standard | ||
