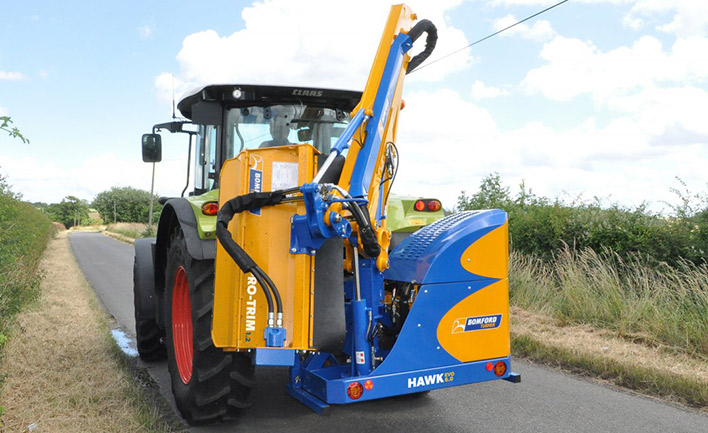

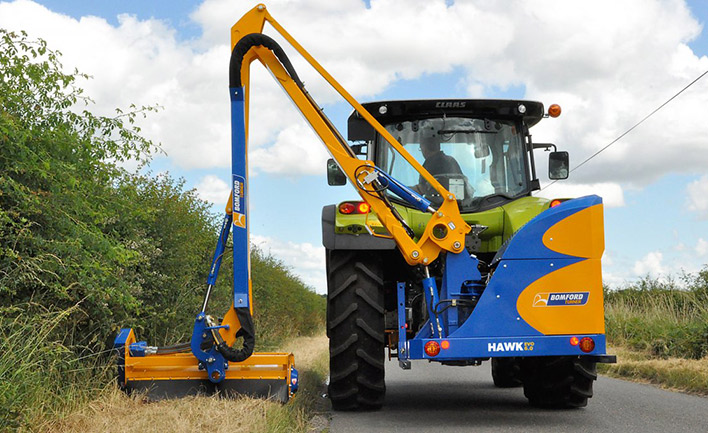

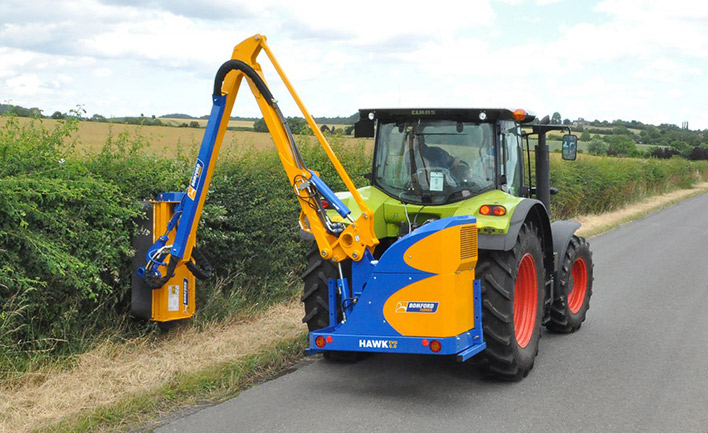

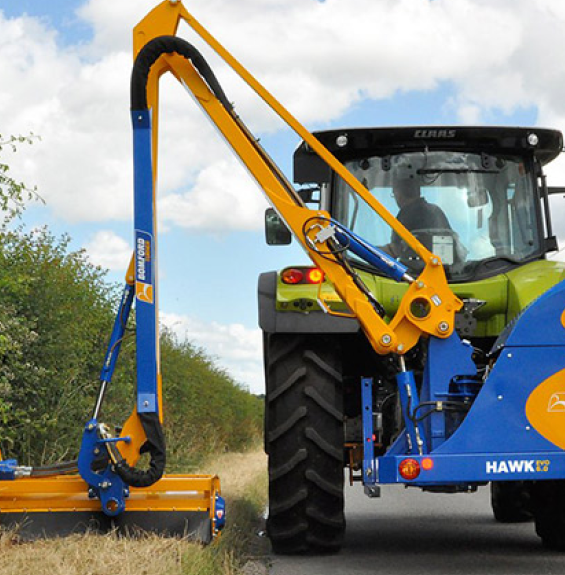

Bomford Hawk Evo Mower
Bomford Hawk Evo Mower
The Hawk Evo is perfect for farmers, contractors and municipal environments.
Fitted with a powerful 104 litre drive system, and options to upgrade to 125 litre, the Hawk Evo offers a machine for every application.
Features Include:
- 5.4m, 6.0m or 6.5m reach
- 1.2m Pro Trim head - 1.5m option on 5.4m & 6.5m
- 104 l/min independent hydraulic system
- 125 l/min option on 6.5m model
- 94º of slew (max non parallel systems)
Hawk Evo – Working Reach Dimensions
Head Used for Calculations: 1.2m Pro Trim
Evo 5.4m (P) (17'9")
Evo 6.0m (P) (19'8")
Evo 6.5m (P) (21'4")
A
5.35m (17'7")
5.95m (19'6")
6.47m (21'3")
B
5.39m (17'8")
6.11m (20'1")
6.21m (20'11")
C
3.64m (11'11")
4.32m (14'2")
4.68m (15'4")
D
4.25m (13'11")
4.74m (15'7")
4.97m (16'4")
E
5.89m (19'4")
6.39m (21')
6.62m (21'9")
X
1.35m (4'5" )
1.35m (4'5" )
1.35m (4'5" )
Y
1.00m (3'3")
1.00m (3'3")
1.00m (3'3")
Specifications
Attachments
Controls
Photos
Video
Specifications
| MODELS | Evo 5.4m (P) (17’9″) | Evo 6.0m (P) (19’8″) | Evo 6.5m (P) (21’4″) | |
| Tractor Requirements | ||||
| Minimum Horse Power | 65hp | 65hp | 65hp | |
| Minimum Weight | 3000kg / 6614Lbs | 3250kg / 7165Lbs | 3500kg / 7716Lbs | |
| Overall Machine Parameters | ||||
| Machine Weight with Oil and Head | 1340kg / 2954Lbs | 1490kg / 3285Lbs | 1740kg / 3836Lbs | |
| Capacity of Oil Tank | 180L / 47.6USG | 180L / 47.6USG | 200L / 52.8USG | |
| Weight of Machine with Oil but Without Head | 1100kg / 2425Lbs | 1250kg / 2756Lbs | 1500kg / 3307Lbs | |
| Hydraulic System | ||||
| System Capability | 60hp | 60hp | 65hp | |
| Pump Flow Rate | 104L / 27.5USG | 104L / 27.5USG | 125L / 33USG | |
| Pump Type (Gear / Piston / Helical) | Gear | Gear | Gear | |
| Pump Arrangement (Twin / Tandem Inline) | Twin | Twin | Twin | |
| Independent Hydraulics | Standard | Standard | Standard | |
| Oil Cooler | Optional | Optional | Optional | |
| Arm Features and Main Frame | ||||
| Telescopic Arm | Not Available | Not Available | Standard | |
| Telescopic Arm Stroke | Not Available | Not Available | 900mm | |
| Power Slew | Standard | Standard | Standard | |
| Power Slew Angle | 94° | 94° | 94° | |
| Gravity Breakout Protection | Not Available | Not Available | Not Available | |
| Hydraulic Breakout Protection | Standard | Standard | Standard | |
| Arm Float – Manual | Optional | Optional | Optional | |
| Arm Float – Electronic | Optional | Optional | Optional | |
| Head Float – Manual | Standard | Standard | Standard | |
| Head Float – Electronic | Optional | Optional | Optional | |
| Left Hand Cutting | Optional | Optional | Optional | |
| Right Hand Cutting | Optional | Optional | Optional | |
| Left and Right Cutting | Not Available | Not Available | Not Available | |
Attachments
| MODELS | Evo 5.4m (P) (17’9″) | Evo 6.0m (P) (19’8″) | Evo 6.5m (P) (21’4″) |
| Base Mounting Options | |||
| Front Mount | Not Available | Not Available | Not Available |
| Mid Mount | Not Available | Not Available | Not Available |
| Rear Mount | Standard | Standard | Standard |
| Three Point Linkage (CAT II) | Standard | Standard | Standard |
| Axle Bracket | Optional | Optional | Optional |
| Arm Attachments Available | |||
| Variable Track Bracket (VTB) | Not Available | Not Available | Not Available |
| Sheartrim Cutter Bar | Optional | Optional | Optional |
| Pro-Saw | Optional | Optional | Optional |
| Ditch Cleaner | Not Available | Not Available | Optional |
| Rotary Head | Not Available | Not Available | Optional |
| Cutting Heads | |||
| 1.2m Pro Trim with 115mm Roller | Optional | Optional | Optional |
| 1.2m Pro Trim with 150mm Roller | Optional | Optional | Optional |
| 1.2m Pro Trim ISMP with 115mm Roller | Optional | Optional | Optional |
| 1.2m Pro Trim ISMP with 150mm Roller | Optional | Optional | Optional |
| 1.5m Pro Trim with 115mm Roller | Optional | Optional | Optional |
| 1.5m Pro Trim with 150mm Roller | Optional | Optional | Optional |
| Accessories | |||
| Road Lights | Standard | Standard | Standard |
| Debris Blower | Optional | Optional | Optional |
| Warning Arrow – Magnetic | Optional | Optional | Optional |
| Cab Guard Kit | Standard | Standard | Standard |
Controls
| MODELS | Evo 5.4m (P) (17’9″) | Evo 6.0m (P) (19’8″) | Evo 6.5m (P) (21’4″) |
| Controls | |||
| Cable Control (CC) | Standard | Standard | Standard |
| Low Pressure Hydraulics (LPH) | Optional | Optional | Optional |
| Electronic Proportional Control (EPP) | Optional | Optional | Optional |
| Intelligent Control System (ICS) | Optional | Optional | Optional |
| Cable Rotor Reverse | Optional | Optional | Optional |
| Electronic Rotor Reverse | Optional | Optional | Optional |
