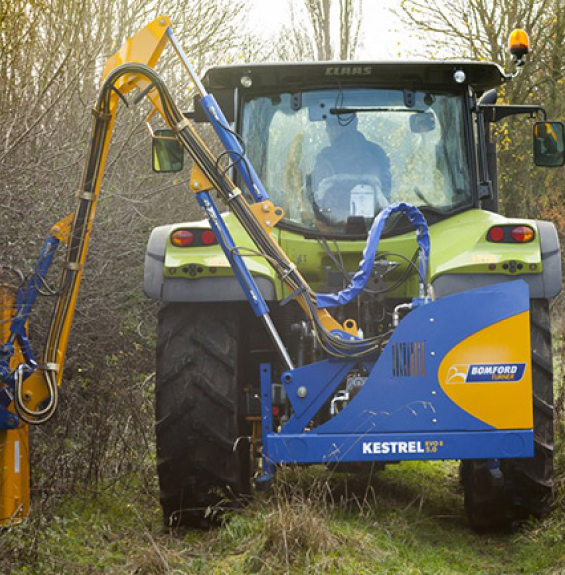

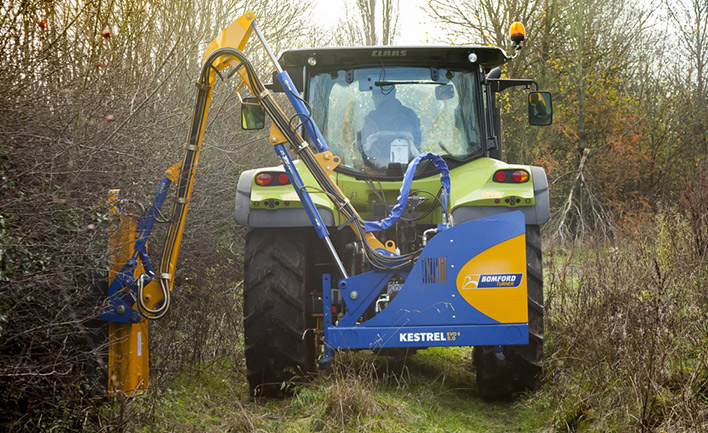

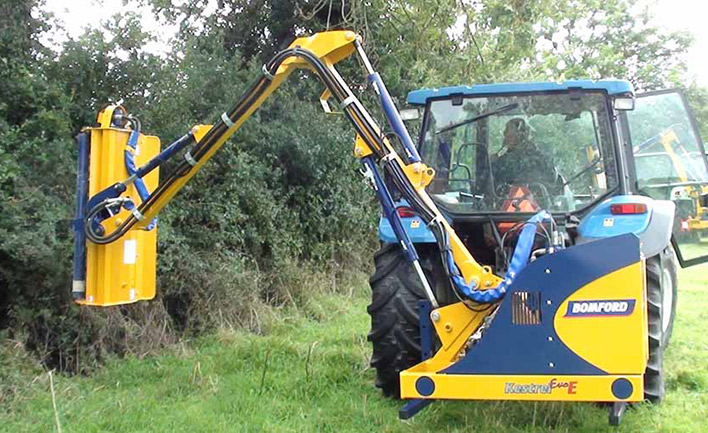

Bomford Kestrel E Evo Mower
Bomford Kestrel E Evo Mower
Features Include:
- 5m reach options – parallel standard
- Choice of heads or 1.5m cutter bar
- Twin Pump independent hydraulics
- Cat II three point linkage mounted
- Non parallel or parallel linkage options
- Mechanical breakout protection
With a 5.0m reach, the Bomford Kestrel Evo E is a well designed, and cost effective machine for any farmer. With mechanical breakout, and cable controls as standard, the Kestrel is the perfect model for small scale farmers, and infrequent users. The Kestrel is very popular with dairy farmers who wish to maintain stock boundary hedges and water courses with hassle free operation and economic cost.
Arm attachments can include a choice of flail heads for control of grass and hedges and light brush. There is with the Kestrel the upgarde option to the Pro Trim series of cutting head, and with this the option of the heavy duty Truecut flail.
Kestrel Evo E – Working Reach Dimensions
5.0m (16'5")
5.0m P (16'5")
A
5.06m (16'7")
4.96m (16'3")
B
4.97m (16'4" )
5.13m (16'10")
C
3.63m (11'11")
3.31m (10'10")
D
4.05m (13'3")
4.32m (14'2")
E
5.98m (19'7")
5.99mm (19'8")
X
1.00m (3'4")
1.00m (3'4")
Y
1.34m (4'7")
1.34m (4'7")
| MODELS | 5.0m (16’5″) | 5.0m P (16’5″) |
| Tractor Requirements | ||
| Minimum Horse Power | 50hp | 50hp |
| Minimum Weight | 3000kg / 6614Lbs | 3000kg / 6614Lbs |
| Overall Machine Parameters | ||
| Machine Weight with Oil and Head | 920kg / 2028Lbs | 1000kg / 2205Lbs |
| Capacity of Oil Tank | 160L / 35.2USG | 160L / 35.2USG |
| Weight of Machine with Oil but Without Head | 720kg / 1587Lbs | 800kg / 1764Lbs |
| Hydraulic System | ||
| System Capability | 45hp | 45hp |
| Pump Flow Rate | 74L / 16.3USG | 74L / 16.3USG |
| Pump Type (Gear / Piston / Helical) | Gear | Gear |
| Pump Arrangement (Twin / Tandem Inline) | Twin | Twin |
| Independent Hydraulics | Standard | Standard |
| Oil Cooler | Optional | Optional |
| Main Features | ||
| Fixed Forward Arm | Not Available | Not Available |
| Folding Forward Arm | Not Available | Not Available |
| Variable Forward Arm | Not Available | Not Available |
| Telescopic Arm | Not Available | Not Available |
| Telescopic Arm Stroke | Not Available | Not Available |
| Power Slew | Not Available | Not Available |
| Power Slew Angle | Not Available | Not Available |
| Gravity Breakout Protection | Standard | Standard |
| Hydraulic Breakout Protection | Not Available | Not Available |
| Armfloat – Manual | Optional | Optional |
| Armfloat – Electronic | Optional | Optional |
| Head Angle Float | Standard | Standard |
| Left Hand Cutting | Optional | Optional |
| Right Hand Cutting | Optional | Optional |
| Left and Right Cutting | Not Available | Not Available |
| MODELS | 5.0m (16’5″) | 5.0m P (16’5″) |
| Base Mounting Options | ||
| Front Mount | Not Available | Not Available |
| Mid Mount | Not Available | Not Available |
| Rear Mount | Standard | Standard |
| Three Point Linkage (CAT II) | Standard | Standard |
| Axle Bracket | Not Available | Not Available |
| Arm Attachments – Compatability | ||
| Variable Track Bracket (VTB) | Not Available | Not Available |
| Sheartrim Cutter Bar | Optional | Optional |
| Pro-Saw | Not Available | Not Available |
| Ditch Cleaner | Not Available | Not Available |
| Rotary Head | Not Available | Not Available |
| Cutting Heads | ||
| 1257mm head with 102mm roller | Optional | Optional |
| 1257mm head with 150mm roller | Optional | Optional |
| 1.2m Pro Trim head with 115mm roller | Optional | Optional |
| 1.2m Pro Trim head with 150mm roller | Optional | Optional |
| 1.5m Sheartrim cutterbar | Optional | Optional |
| Accessories | ||
| Road Lights | Optional | Optional |
| Debris Blower | Not Available | Not Available |
| Warning Arrow – Magnetic | Optional | Optional |
| Cab Guard Kit | Standard | Standard |
| MODELS | 5.0m (16’5″) | 5.0m P (16’5″) |
| Controls | ||
| Cable Control (CC) | Standard | Standard |
| Low Pressure Hydraulics (LPH) | Optional | Optional |
| Electronic Switch Control (ESC) | Optional | Optional |
| Electronic Proportional Control (EPP) | Optional | Optional |
| Intelligent Control System (ICS) | Not Available | Not Available |
| Cable Rotor Reverse | Optional | Optional |
| Electronic Rotor Reverse | Not Available | Not Available |
