Bomford Robin Arm Mower
Bomford Robin Arm Mower

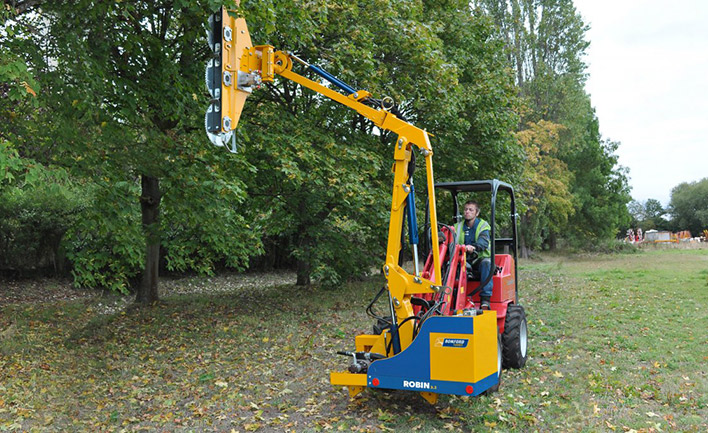

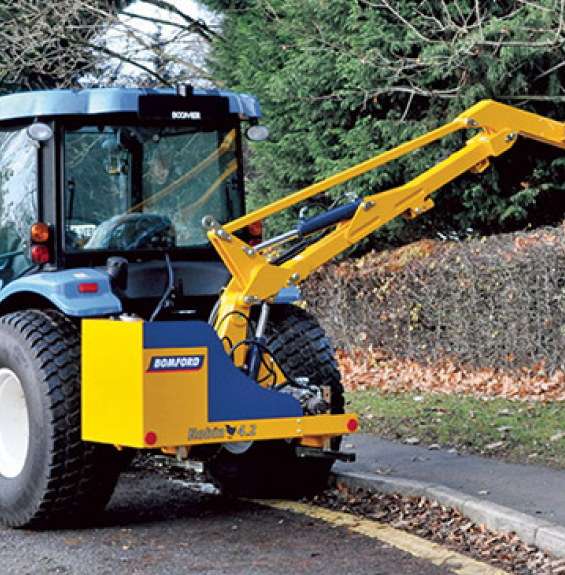

The Robin is a professional compact Arm mower – perfect for amenity and estate use and also a firm favourite with small farmers as it can verge mow or hedge trim just as well as some of our larger models.
Features Include:
- 3.4m or 4.3m reach options
- End drive cutting head or cutter bar
- Electronic Proportional Controlled (EPC) optional
- Front mount option
- Low friction cable control
Robin – Working Reach Dimensions
Head used for calcs: 905mm
3.4m (11'2")
4.3m (14'2")
A
3.4m (11'2")
4.3m (14'2")
B
3.0m (9′10″)
4.0m (13'2")
C
1.98m (6′6″)
2.98m (9'10")
D
3.3m (10'10")
4.3m (14'2")
E
4.3m (14'11")
5.3m (17'5")
X
1.00m (3'4")
1.00m (3'4")
Y
1.34m (4'7")
1.34m (4'7")
Specifications
Attachments
Controls
Photos
Specifications
| MODELS | 3.4m (11’2″) | 4.3m (14’2″) |
| Tractor Requirements | ||
| Minimum Horse Power | 30-40hp | 30-40hp |
| Minimum Weight | 1300kg / 2866 Lbs | 2000kg / 4409Lbs |
| Overall Machine Parameters | ||
| Machine Weight | 594kg / 1310Lbs | 670kg / 1477Lbs |
| Capacity of Oil Tank | 80L / 17.6USG | 80L / 17.6 USG |
| Weight of Machine with Oil but Without Head | 464kg / 1023Lbs | 530kg / 1168Lbs |
| Hydraulic System | ||
| System Capability | 30hp | 30hp |
| Pump Flow Rate | 50L / 13.2USG | 50L / 13.2USG |
| Pump Type (Gear / Piston / Helical) | Gear | Gear |
| Pump Arrangement (Twin / Tandem Inline) | Twin | Twin |
| Independent Hydraulics | Standard | Standard |
| Oil Cooler | Not Available | Not Available |
| Arm Features and Main Frame | ||
| Telescopic Arm | Not Available | Not Available |
| Telescopic Arm Stroke | Not Available | Not Available |
| Power Slew | Not Available | Not Available |
| Power Slew Angle | Not Available | Not Available |
| Gravity Breakout | Not Available | Not Available |
| Hydraulic Breakout | Standard | Standard |
| Armfloat – Manual | Optional | Optional |
| Armfloat – Electronic | Optional | Optional |
| Headfloat – Manual | Optional | Optional |
| Headfloat – Electronic | Optional | Optional |
| Left Hand Cutting | Optional | Optional |
| Right Hand Cutting | Optional | Optional |
Attachments
| MODELS | 3.4m (11’2″) | 4.3m (14’2″) |
| Base Mounting Options | ||
| Front Mount | Optional | Optional |
| Mid Mount | Not Available | Not Available |
| Rear Mount | Standard | Standard |
| Three Point Linkage (CAT II) | Standard | Standard |
| Axle Bracket | Not Available | Not Available |
| Arm Attachments Available | ||
| Variable Track Bracket (VTB) | Not Available | Not Available |
| Sheartrim Cutter Bar | Optional | Optional |
| Pro-Saw | Optional | Optional |
| Ditch Cleaner | Not Available | Not Available |
| Rotary Head | Not Available | Not Available |
| Cutting Heads | ||
| 905mm Flail Head 102mmRoller | Optional | Optional |
| 1000mm Flail Head with 102mm Roller | Optional | Optional |
| 1.2m and 1.5m Cutterbars | Optional | Optional |
| Accessories | ||
| Road Lights | Not Available | Not Available |
| Debris Blower | Not Available | Not Available |
| Warning Arrow – Magnetic | Optional | Optional |
| Cab Guard Kit | Optional | Optional |
Controls
| MODELS | 3.4m (11’2″) | 4.3m (14’2″) |
| Controls | ||
| Cable Control (CC) | Standard | Standard |
| Electronic Proportional Control (EPC) | Optional | Optional |
| Intelligent Control System (ICS) | Not Available | Not Available |
| Low Pressure Hydraulics (LPH) | Not Available | Not Available |
| Cable Rotor Reverse | Optional | Optional |
| Electronic Rotor Reverse | Optional | Optional |
