Turbo Mower Offset
Bomford Turbo Mower Offset
The Turbo Mower Offset range offers operators a choice of cutting widths at cost effective prices.
A well designed and constructed range, the Bomford Turbo Mower Offset is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
Features Include:
- 1.6m, 1.9m and 2.25m cutting widths
- Three-point linkage-mounting
- PTO overrun protection
- Choice of whale-tail or J flails
- 155 degrees of head movement
- Vertical and horizontal hydraulic adjustment
- Safety breakaway
- Double-skin protection
- Fuel-efficient, high-performance double spiral rotor
- Cutting height of 30mm - 80mm
- Maximum cutting diameter of 50mm
- Optional hydraulic floation system
Specifications
Photos
Specifications
| MODELS | 160 | 190 | 225 |
| Cutting Width (max width of cut) | 1.6m (5’3″) | 1.9m(6’3″) | 2.25m(7’4″) |
| HP Requirement (min hp requirement of tractor) | 47-60 | 71-93 | 80-117 |
| Attachment 3-Point Linkage (CAT II or III) | 3 Point Linkage | 3 Point Linkage | 3 Point Linkage |
| Hydraulic Offset | Hydraulic Operation | Hydraulic Operation | Hydraulic Operation |
| Weight | 665 kg | 735 kg | 775 kg |
| PTO Speed (Maximum RPM of PTO shaft) | 540 | 540 | 540 |
| No. of Flails (J flails on twisted shackle or back-to-back flail) | 20 | 24 | 28 |
| Maximum Downward Movement | -65° | -65° | -65° |
| Maximum Upward Movement | +90° | +90° | +90° |

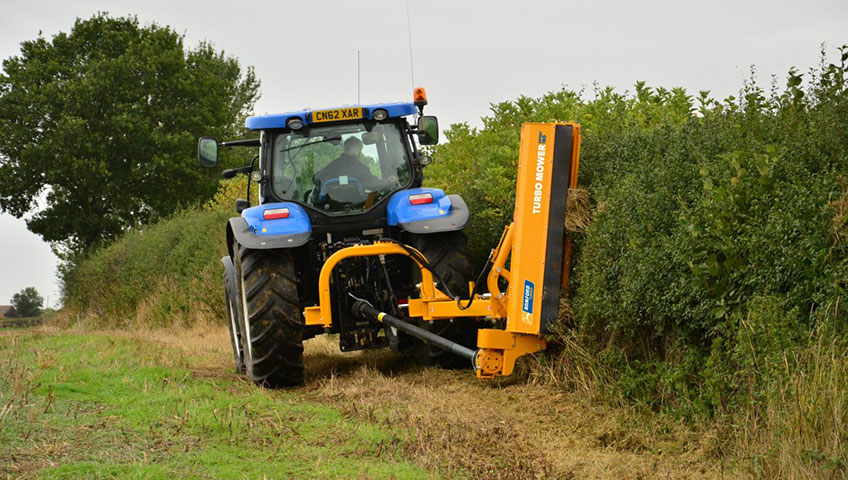

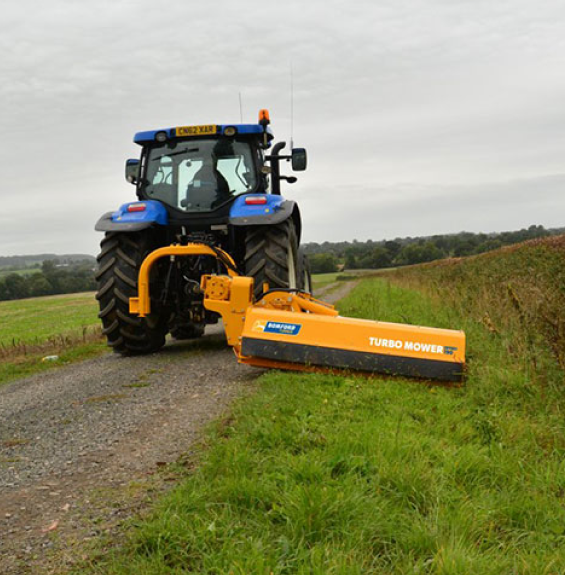

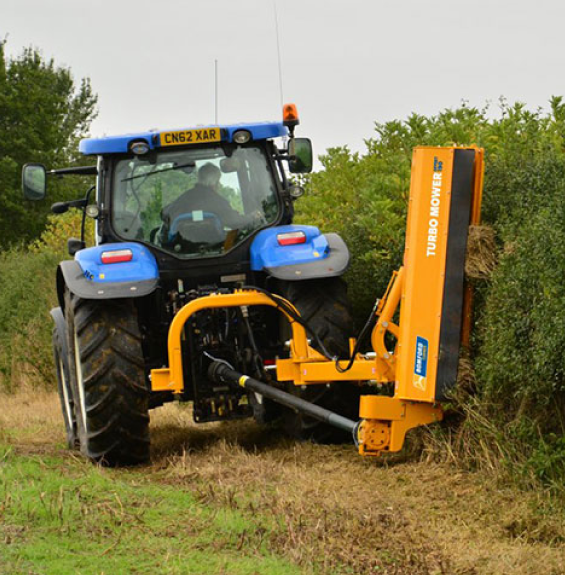

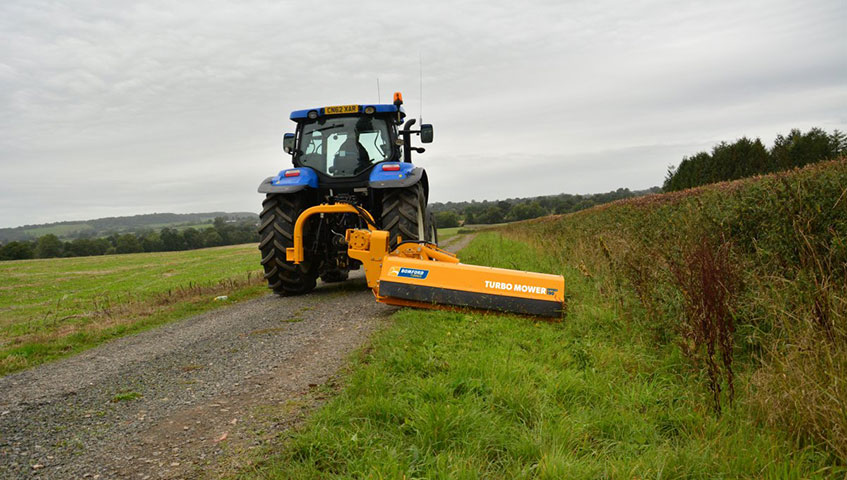

Photos
