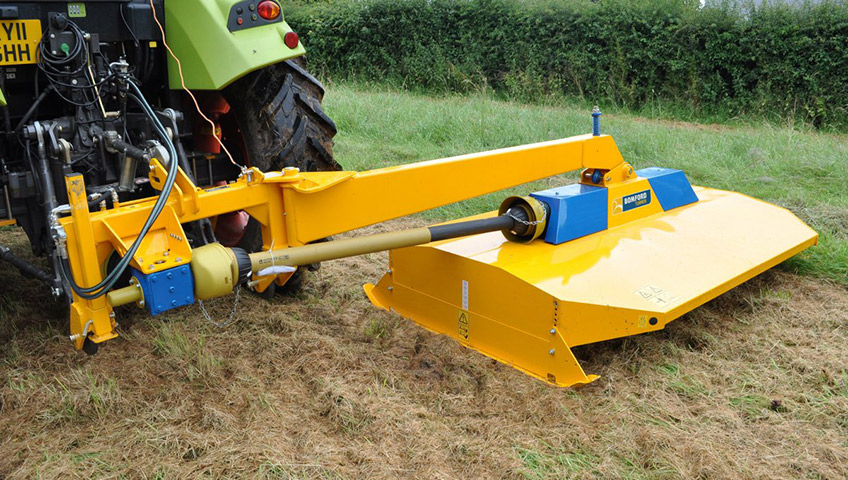

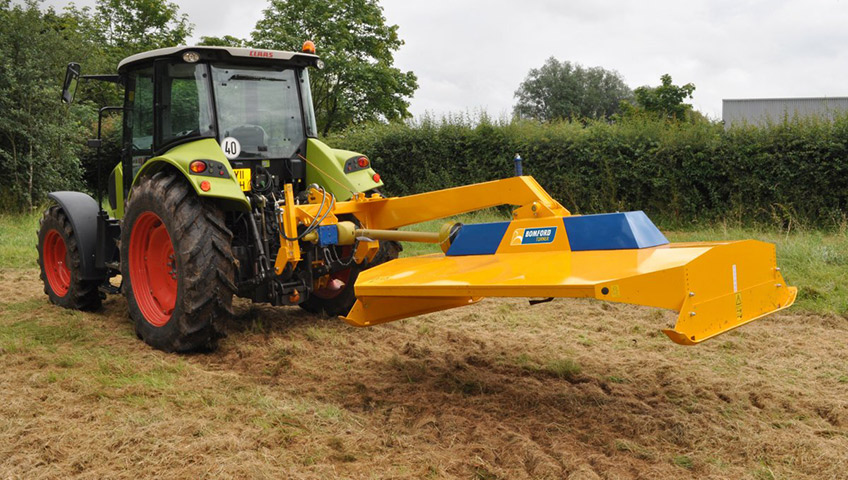

Bomford Twin-Blade Topper
The new more robust Bomford Twin-Blade is a flexible, efficient, in-line or offset topper. The Twin-Blade grass topper is perfect for paddocks and headlands.

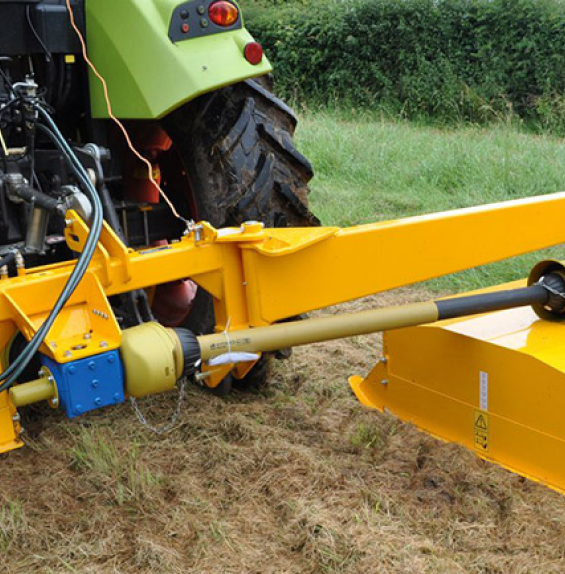

The range extends from 1.8m and semi-offset (2.4m/2.7m) to 2.4m fully offset. The Twin-Blade also features cast-iron gearboxes and protected drivelines. Simple, adjustable skids on this machine are key to a smooth operation.
Features Include:
- Shaft Driven
- 1.8m, 2.4m offset and 2.7m cutting width
- Variable cutting height
- Shearbolt and overrun gearbox protection
- Cat 1 or Cat II three point linkage
Specifications
Photos
Video
Specifications
| MODELS | TB180 | TB240 INLINE | TB270 | TB240 OFFSET |
| Cutting Width | 1800mm / 5’11” | 2400mm / 7’10” | 2800mm / 9’2″ | 2400mm / 7’10” |
| Overall Width (Transport) | 1970mm / 7’6″ | 2571mm / 8’5″ | 2971mm / 9’9″ | 1850mm / 6’1″ |
| Power Requirement (PTO) | 22kW (30hp) | 22kW (30hp) | 22kW (30hp) | 22kW (30hp) |
| Linkage Mounting | Cat I & II | Cat II | Cat II | Cat II |
| Offset Capability | Yes | Yes | No | Yes |
| Fully Offset Right of Centre | N/A | N/A | N/A | 4350mm / 14’3″ |
| PTO Speed | 540rpm | 540rpm | 540rpm | 540rpm |
| Number of Rotors | 1 | 2 | 2 | 2 |
| Number of Blade Carriers | 1 | 2 | 2 | 2 |
| Number of Blades | 2 | 4 | 4 | 4 |
| Number of Skids | 2 | 2 | 2 | 2 |
| Cutting Height | 30-150mm / 1¼”-6″ | 30-150mm / 1¼”-6″ | 30-150mm / 1¼”-6″ | 30-150mm / 1¼”-6″ |
| Weight | 290kg / 640lbs | 390kg / 681lbs | 430kg / 948lbs | 550kg / 1213lbs |
