Large Capacity Pick Up Sweeper

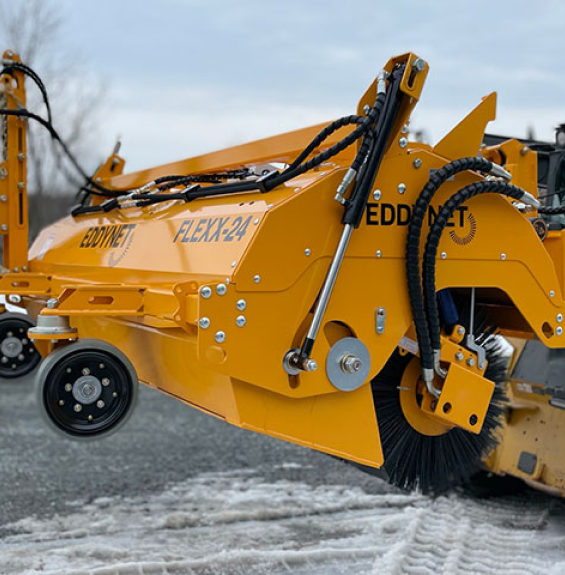

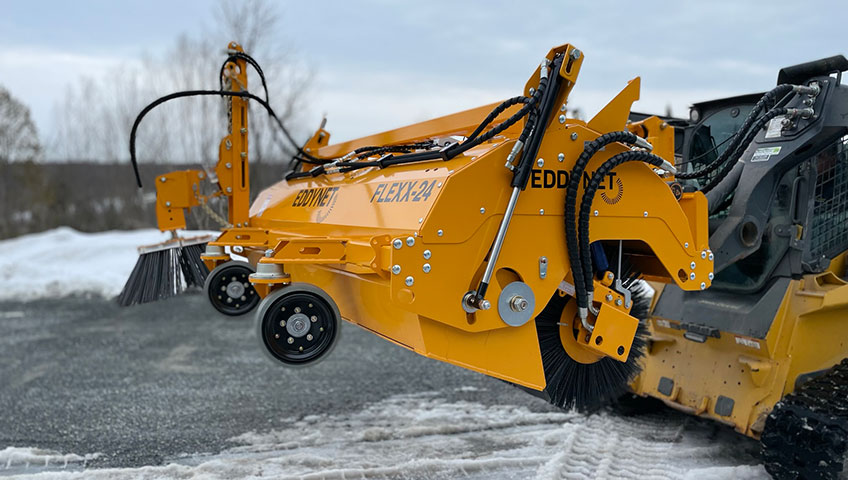

FLEXX24 – FLEXX32
The FLEXX24″ or 32″ series pick up / angle sweepers provide efficient sweeping while maximizing the collection of the debris on the ground. The high-capacity bucket makes it possible to efficiently pick up debris and dispose of it directly on the ground or in a dump truck. The sweeper can also sweep in the angled position.
Eddynet Pick Up Angle Sweeper Features:
- Sweeps when being pushed.
- Hydraulic drive.

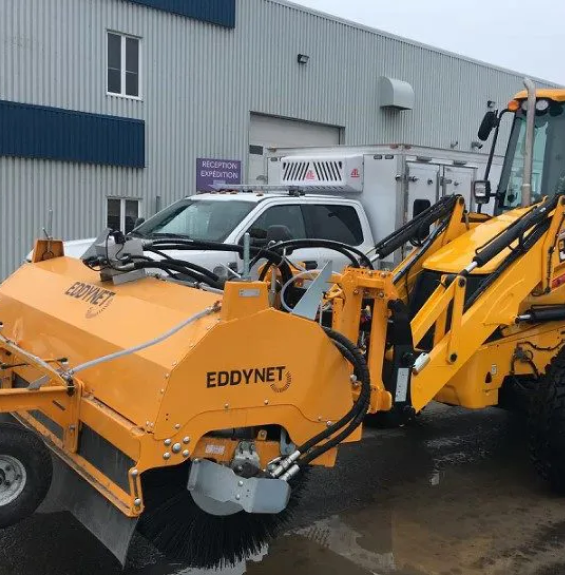

- Recommended to be installed on loader arm of tractor or backhoe.
- Brush diameter 24" or 32".
- The sweeper has a brush flotation system allowing it to follow the variations of the road.
- Pivoting quick coupler front/rear, left/right and 6" up/down slide.
- The brush is supported by two ball bearings.
- 4 anchor rings for handling and transportation.
- Rubber travelling springs.
- Adjustment of the brush pressure, on the ground, with two shock absorbers.
Brush Drive:
- Requires a minimum of 12 GPM at 2000 PSI.
- The brush is driven by one hydraulic motor mounted directly on the center core.
- Motor driven by the hydraulic system of the carrier machine and controlled by the sweepers valve block.
- The hydraulic holes from the pump to the third valve must be ¾" in diameter.
- Hydraulic valve block to supply the brush, the opening of the hopper (bucket), angulation, gutter brush and lifting (optional).
Brush (Model FLEXX-24):
- Replaceable disc brush, exterior diameter 24" with a 6 3/8" interior diameter (core).
- Choice of brushes: polypropylene only or polypropylene/wire.
Brush (Model FLEXX-32):
- Replaceable disc brush, exterior diameter 32" with a 10" interior diameter (core).
- Choice of brushes: polypropylene only or polypropylene/wire.
Hydraulic Angulation (25 degrees):
- Hydraulic angulation of 25° on each side.
Pick up Hopper (bucket) :
- Lifting of the hopper 4" off the ground when sweeping left/right.
- Pivoting of the hopper (bucket) by two hydraulic cylinders.
- Hardened steel runners under the hopper for protection.
Structure:
- Laser cut parts for a better design and smoother finish.
- Tubular structure, robust construction.
- 16 gauge steel hood, covering 180° of the brush.
Finish:
- Powder coat.
- All parts are painted individually.
Pivoting Wheels:
- 2 or 4 load bearing wheels 4" x 8" no maintenance required.
Options
Photos
Options
Options:
- 6 function electric solenoid valve.

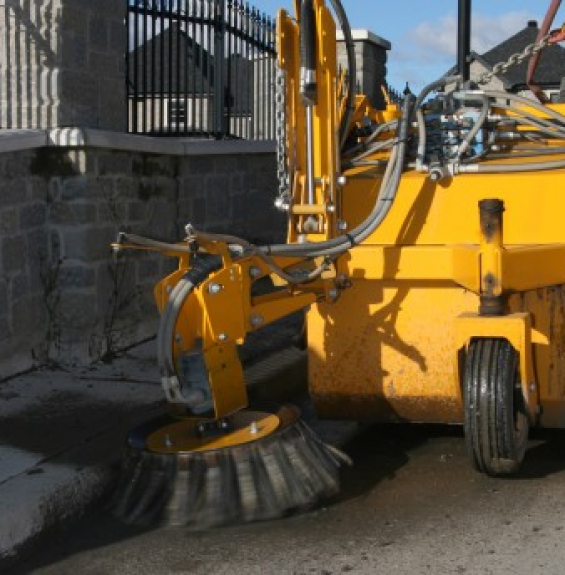

- Gutter brush (6 sections) with independent hydraulic lift function.
- Hydraulic selector for gutter brush.
- Electric hydraulic valve block to power the brush, opening / close the hopper, sweeper angulation right / left, move up / down and start the gutter brush hopper and angulation if only one flow control is provided on the carrier machine.
- Wireless remote control.
