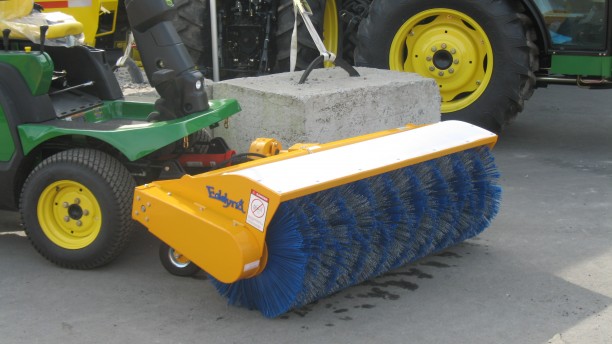

Eddynet Front-Mounted Mechanical Sweeper for 25hp Front Mower
Eddynet Front-Mounted Mechanical Sweeper for 25hp Front Mower
PM24-05 / PM24-06
Eddynet Sweeper Features:
- 16 gage hood which cover 180° of the brush.
- 24"Ø brush in polypropylene or polypropylene and steel.
- Brush width: 5'.
- Brush is adjustable by the weight of brush.
- Brush is supported by two ball bearings.
- 2 100 RPM to 150 RPM gear box.
Eddynet Sweeper Features:
- Anchor and lifting ring.
- Two front 10.5 caster wheels (carefree).
- Jack stands.
- Manual orientation : 30° on each side.
- Lifting device :two 2" tubes.
- Brush is powered by the 2100 RPM PTO (1", 15 teeth).
- Power transmission by sprockets and chains.
- The suspension of the brush, often called the floating device, allows the brush to work in conjunction with the road oscillations.
- Frontal and lateral oscillation.
- Epoxy primer and urethane paint.
- Approximate weight : 540 lbs (244 kg).
Options
Photos
Options
Eddynet Sweeper Options:
- 25 gallons water tank and support, pump and sprinklers.
- Hydraulic orientation: 30° on each side.
