Eddynet Pick-up Sweepers for Tractors
RTH24-05 / RTH24-06 / RTH24-07 / RTH24-08

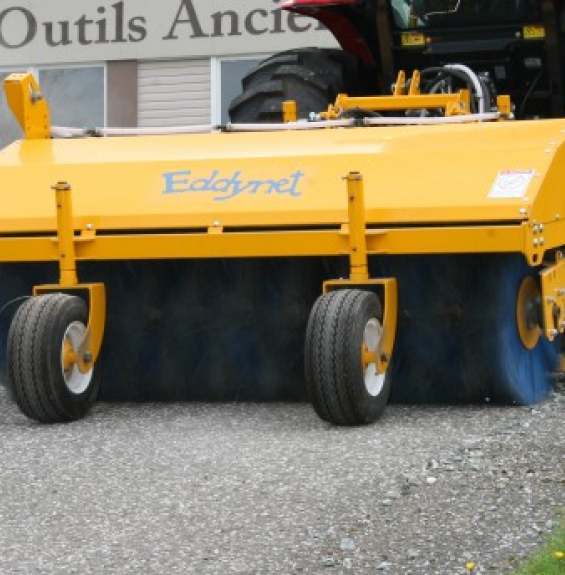

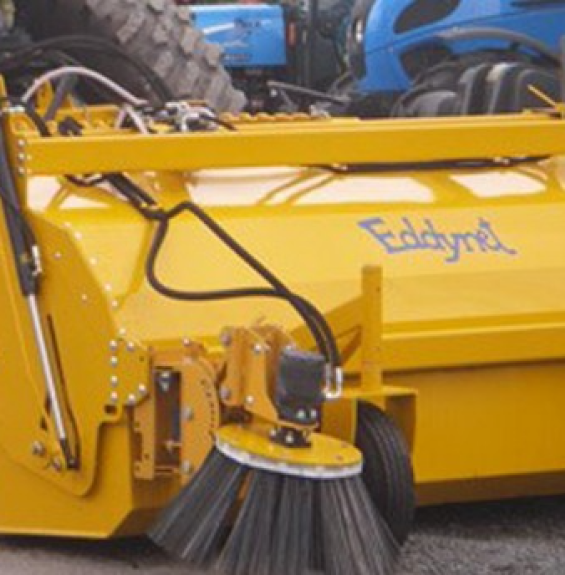

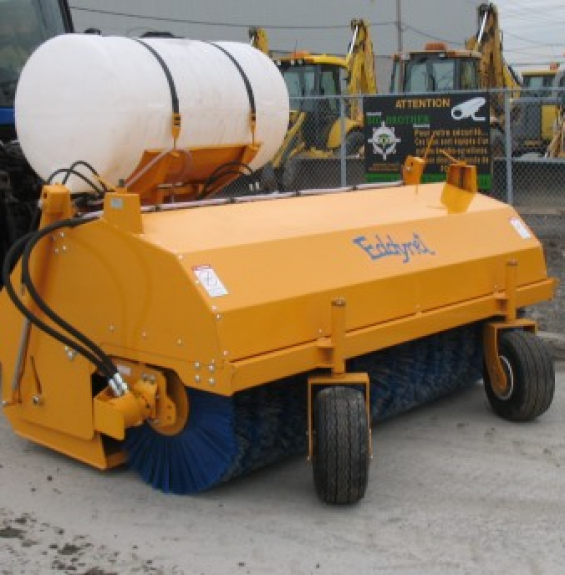

Eddynet hydraulic pick-up sweeper for tractors.
- Requires 16 GPM at 2000 PSI (60 LPM at 138 bars) for a recommended brush speed of 150 RPM.
- Brush speed is controlled by the equipment engine speed.
- Powered by single orbital motor mounted to the core of the brush.
- Third valve is required to operate the brush, a fourth valve is required to operate the hydraulic angle change and a fifth valve is required to open or close the upper.
- Hydraulic hoses that supply the third valve of the equipment must be 3/4" inside diameter.
- Choice of poly or poly / wire bristles.
RTH32-08 / RTH32-09-02
Eddynet rear-mounted hydraulic sweeper for 90hp tractor.
- Requires, 24 GPM at 2000 PSI (190 LPM at 138 bar) for a recommended brush speed of 150 RPM.
- Brush speed is controlled by the equipment engine speed.
- Powered dual hydraulic orbital motors mounted to the core of the brush.
- Third valve is required to operate the brush, a fourth valve is required to operate the hydraulic angle change and a fifth valve is required to open or close the upper.
- Hydraulic hoses that supply the third valve of the equipment must be 3/4" (19 mm) inside diameter.
