Eddynet Tow Behind Hydraulic Sweeper for Pickup Trucks

Tow Behind Sweepers For Pickup Trucks

Eddynet Tow Behind Hydraulic Sweeper for Pickup Trucks

RBRD-07 / RBRD-08 / RBRD-09 / RBRD-10 / RBRD-12

Eddynet Hydraulic Sweeper Features:

  • 16 gage hood which cover 180° of the brush.
  • 32"Ø brush in polypropylene or polypropylene and steel.
  • Brush width: 7', 8', 9', 10' 12'.
  • The brush is driven by single (7', 8') or dual (9', 10',12') hydraulic motor coupled directly to the core by a splined shaft
  • Swing arm device allows the brush to work in conjunction with the road oscillations.
  • Brush is adjustable by two springs.
  • Brush is supported by two ball bearings.
  • Anchor and lifting ring.

Eddynet Sweeper Features:

  • Dirt deflector with a sliding adjustment.
  • 30° right / left hydraulic angle.
  • Two 16.5-6.5-8 front caster wheels.

Trailer:

  • Wheel axle: 2727 kg capacity.
  • Two P235/75R15 tires.
  • Trailer safety chain grade 70.
  • 900 kg swivel jack.
  • 2" Ball coupler with 3 points attachment.
  • Front and side marker lamps on drawbar and brush.
  • Slow traffic warning triangle.
  • 27hp Kubota diesel engine.
  • Electric starter.
  • 12 Volts, 500 amperes battery.
RBRD-07 / RBRD-08 / RBRD-09 / RBRD-10 / RBRD-12
RBRD-07 / RBRD-08 / RBRD-09 / RBRD-10 / RBRD-12

Trailer:

  • 60 amperes alternator.
  • Electric hydraulic control.
  • 20 liters diesel tank.
  • Anti-vibration motor bracket.
  • 30 gallons oil tank.
  • 15 and 2 gpm pump to supply the functions of the broom.
  • Level gauge, magnetic drain plug.
  • Oil diffuser on the return, 10 micron filter.
  • Air filter and pre cleaner.
  • Epoxy primer and urethane paint.
  • Weight with an empty water tank: 1360 kg.
  • Weight with a full water tank 1915 kg.
  • Brakes are required if weight exceed 1300 kg in Quebec and 1500 kg in the US.

Eddynet Sweeper Options:

  • 150 gallons water tank, pump and sprinklers, ultraviolet proof.

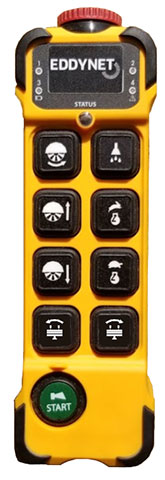

  • Remote control: sweeping, lifting, angling, watering, starting, hour meter.
  • Electric brakes.
  • 10 000 lbs Hydraulic brakes with free back.
  • Quick electrical connection to disconnect the remote control.
  • Emergency Rotating light.
  • Actuator to increase or decrease engine RPM.
