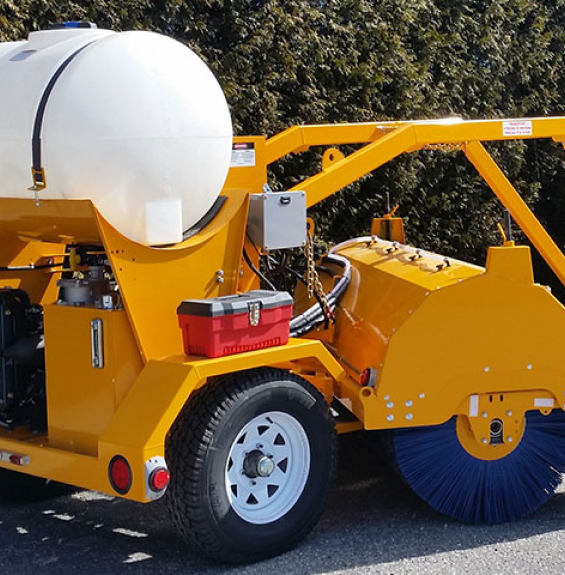

Eddynet Tow Behind Hydraulic Sweeper for Pickup Trucks
Eddynet Tow Behind Hydraulic Sweeper for Pickup Trucks
RBRG-07 / RBRG-08
Eddynet Sweeper Features:
- 16 gage hood which cover 180° of the brush.
- 32"Ø brush in polypropylene or polypropylene and steel.
- Brush width: 7', 8'.
- The brush is driven by single hydraulic motor coupled directly to the core by a splined shaft.
- Swing arm device allows the brush to work in conjunction with the road oscillations.
- Brush is adjustable by two springs.
- Brush is supported by two ball bearings.
- Anchor and lifting ring.
Eddynet Sweeper Features:
- Dirt deflector with a sliding adjustment.
- 30° right / left hydraulic angle.
- Two 16.5-6.5-8 front caster wheels.
Trailer:
- Wheel axle: 2727 kg capacity.
- Two P235/75R15 tires.
- Trailer safety chain grade 70.
- Ball coupler 2" with 3 points attachment.
- Front and side marker lamps on drawbar and brush.
- Slow traffic warning triangle.
- 20hp Honda engine.
- Electric starter.
- 12 Volts, 500 amperes battery.
Trailer:
- 20 amperes alternator.
- 20 liters gas tank.
- Anti-vibration motor bracket.
- 30 gallons oil tank.
- Manual hydraulic control.
- 15 gpm pump to supply the functions of the broom.
- Level gauge, magnetic drain plug.
- Oil diffuser on the return, 10 micron filter.
- Air filter and pre cleaner.
- Epoxy primer and urethane paint.
- Weight with a full water tank 1715 kg.
- Mandatory brakes if weight exceed 1300 kg in Quebec and 1500 kg in the US.
- Transport Canada certificate.
Options
Photos
Video
Options
Eddynet Sweeper Options:

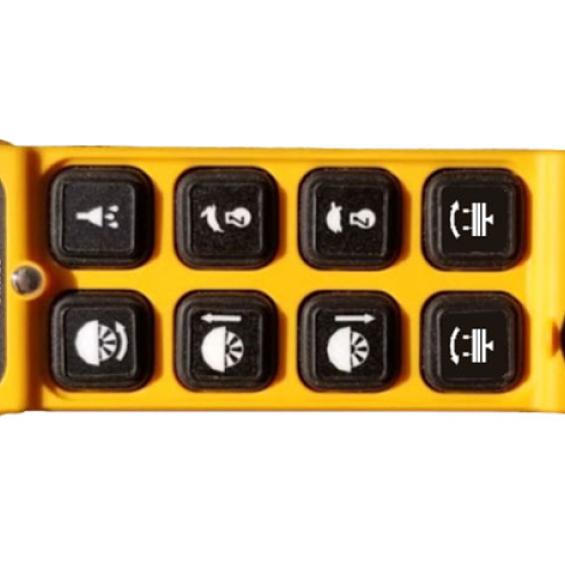

- Remote control: sweeping, lifting, angling, watering, starting, hour meter, electric hydraulic control and hour meter.
- 2 gpm pump for angling and lifting.
- 150 gallons water tank, pump and sprinklers, ultra-violet proof.
- Hydraulic activator for 10 000 lbs brakes.
- Hydraulic brakes with free back.
- Quick electrical connection to disconnect the remote control.
- Rotating light.
