New Speed Cutting Head

New Speed Cutting Head

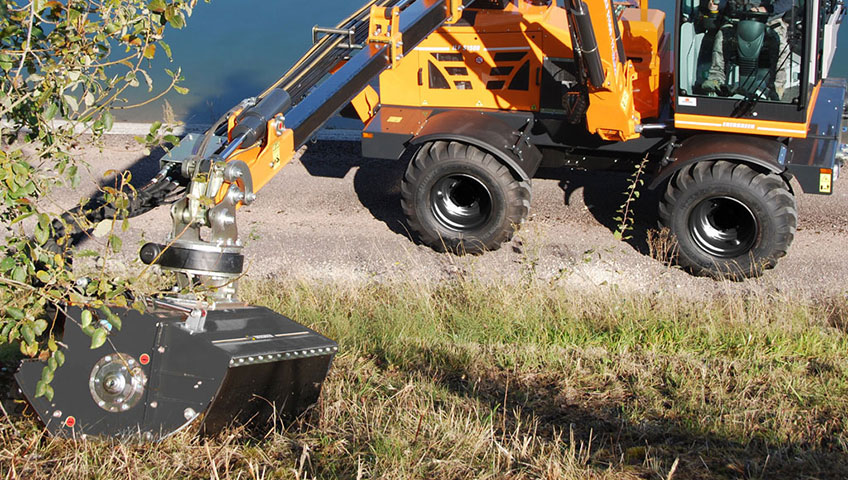

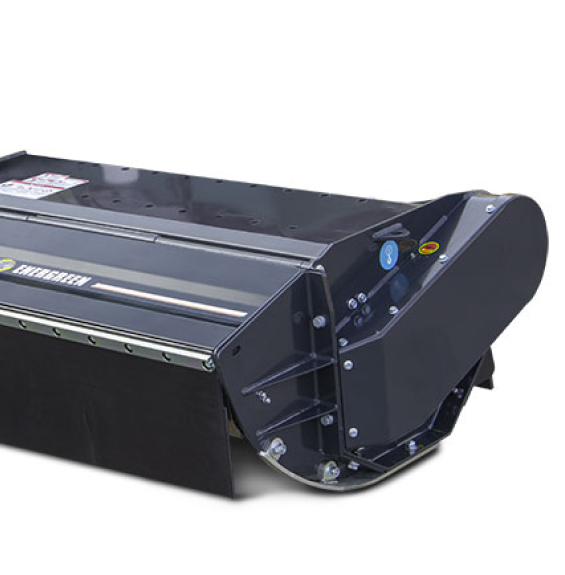

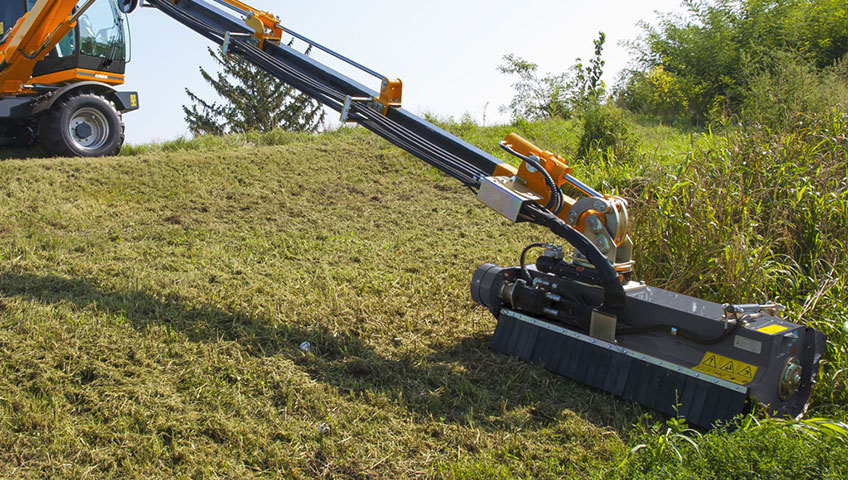

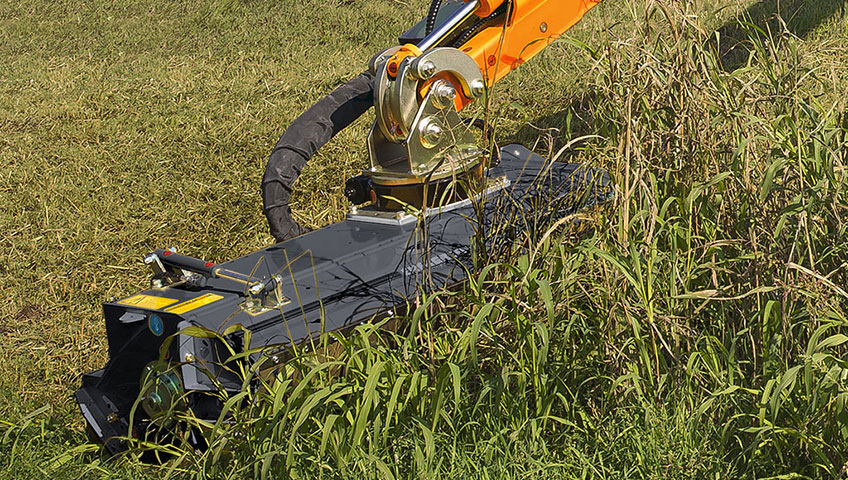

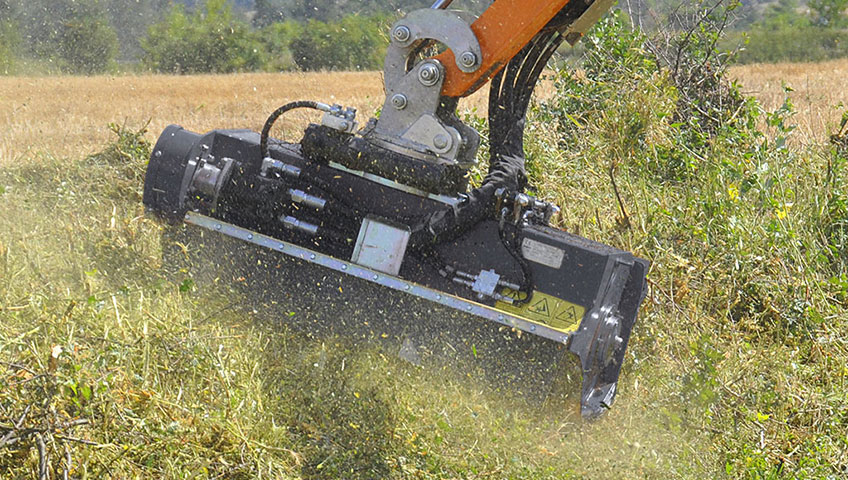

Energreen New Speed Cutting Head

Energreen NEW SPEED is a robust and reliable cutting head, ideal for cutting grass and shrub up to 8 cm in diameter. It’s available in 120 and 150 cm sizes.

The structural characteristic allows six different types of rotors (knives, hammers, multi-purpose knives Y, etc.) to be used/mounted, to work in different environments, from green maintenance to forest use. The rotors can be quickly replaced by one operator. The double direction of the rotation of the rotor with an additional application of the 180° rotating wheel (optional), allow to work in both directions, optimizing working times.

TECHNICAL DATANEW SPEED 120NEW SPEED 150
Max Width1350 mm1650 mm
Max Depth800 mm800 mm
Max Height510 mm510 mm
Working Width1120 mm1420 mm
Engine44 cm3 / 350 bar44 cm3 /350 bar
TransmissionBeltBelt
Maximum Power60/70 Hp (44/51,5 kW)65/75 Hp (48/55 kW)
Rotor Diameter128 mm128 mm
Rotor Speed3000 rpm3000 rpm
No. Knives
Multipurpose + Straight
36 + 1848 + 24
No. Hammers2024
No. Articulated Flails5427
Total Weight (standard)252 kg281 kg
Total Weight with Slewing Bearing (optional)331 kg400 kg
