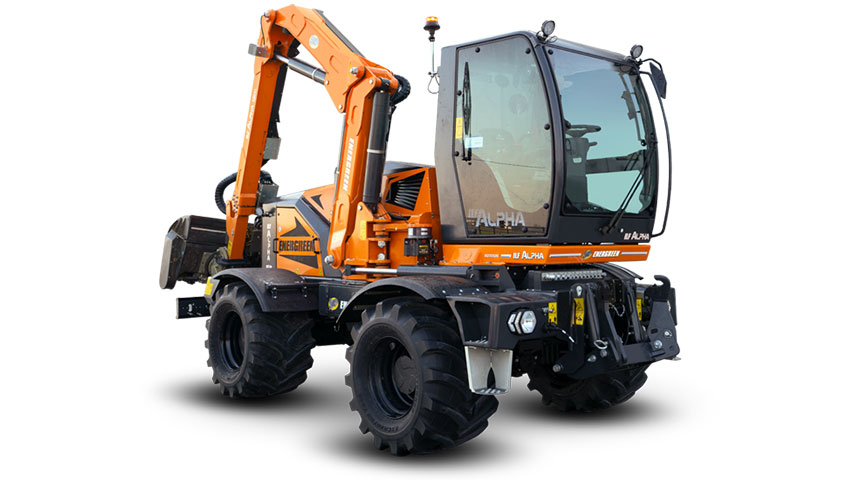

ilf alpha

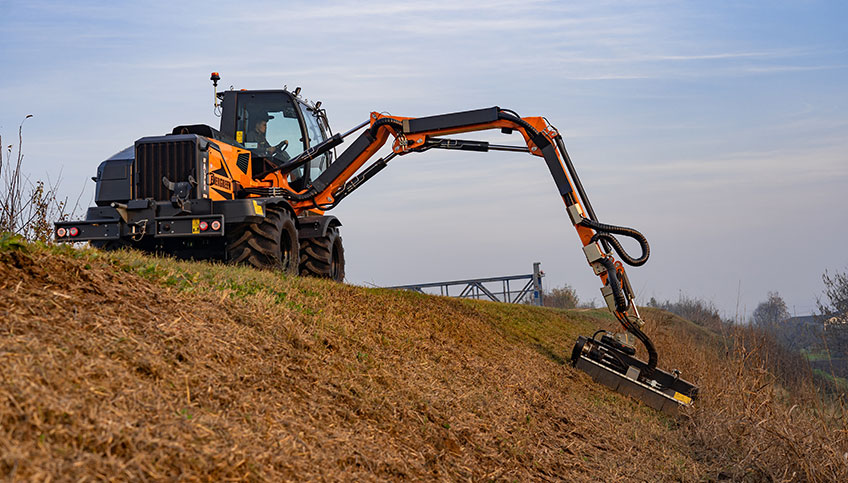

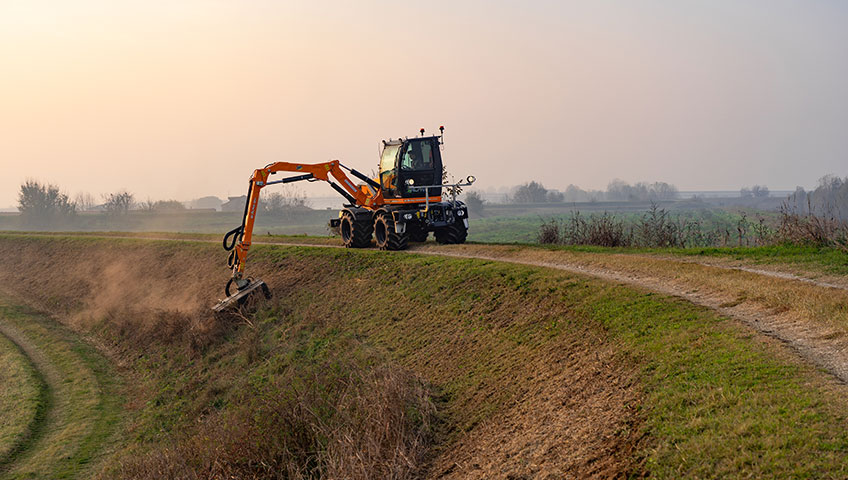

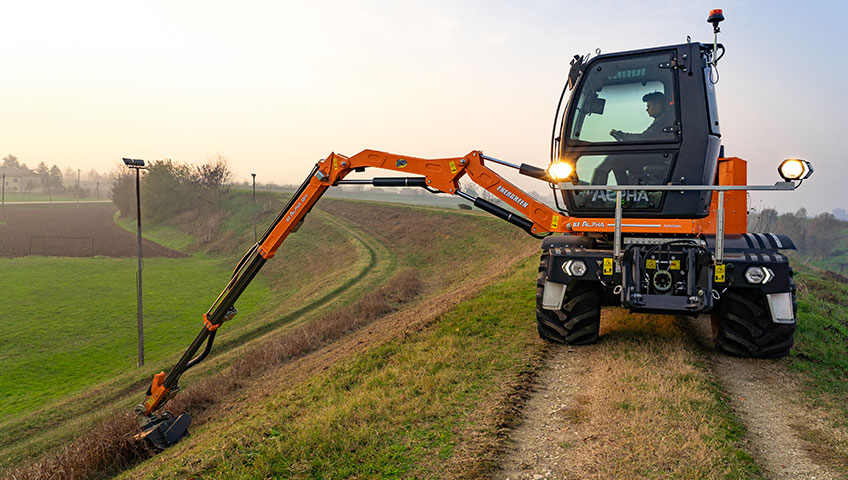

Brushcutter with Multifunction Arm
A high technology level machine that guarantees high performances, safety and working flexibility. Born from an award-winning project recognized by the biggest costumer of the green maintenance. ILF Alpha does not lose the features which has made unique these tool carrier machines with telescopic arm: visibility, multifunctionality, ability, performance etc. ILF Alpha can be equipped with 3 different types of arm with different lengths which have various equipment.
Features Include:
MULTIFUNCTIONAL
- Three types of arm: T, F, 3P
- Many tools available
- Green maintenance, forestry work, winter viability.
- Front and rear attachment for tools.
SAFETY AND COMFORT
- FOPS-ROPS homologated cabin.
- 90° rotating cabin.
- High visibility panoramic windscreen.
- Excellent working ergonomics.
- SCD Stability Control Device.
PRODUCTIVITY
- Telescopic arms up to 12 meters.
- Bidirectional work.
- Excellent manoeuvrability on all surfaces.
- Easy and smart to use.
- 360° visibility.
QUALITY
- Schermo LDC 10″ ECI (Energreen Control Interface)
- Special steel reinforced frame.
- Certified European components.
- JD 173 HP Stage V powerful engine.
- Heavy Duty hydrostatic transmissions.
QUALITY
- Reinforced frame in special STRENX® steel.
- Certified components.
- Powerful and proven Tier 4F engine.
- HEAVY DUTY hydrostatic transmissions.
EXTREME 360° VISIBILITY
- Maximum visibility (360°) thanks to the large windscreen for a total and perfect view of the work environment.

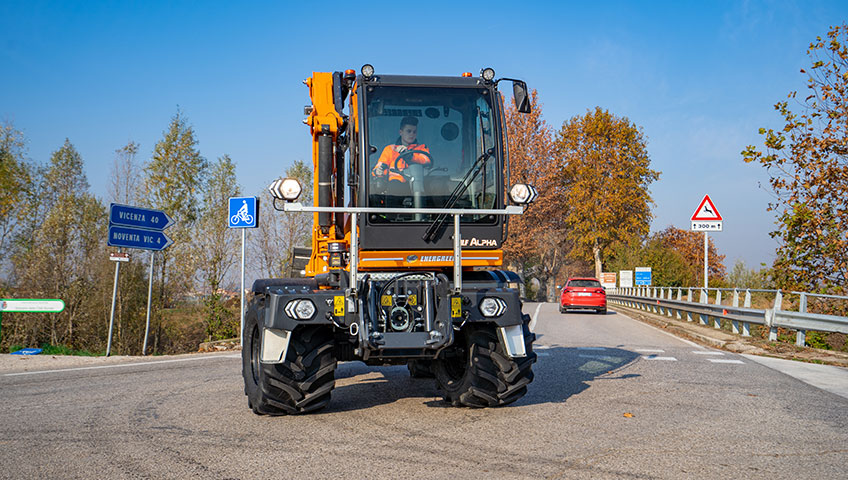

MANEUVERABILITY
- 2 front steering wheels, for maximum agility on road movement.
- 4 steering wheels, a system that halves the turning range of the machine, ideal for working in narrow areas.
- 4 parallel steering wheels (crab), useful for moving special tools or for moving away from an obstacle.
| ILF ALPHA | |
| Rotating Cabin | Up to 90° |
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Air Conditioning | Electronic |
| Rear Window | Darkened Anti UV |
| Adjustable Seat | Air Suspension |
| Power Socket | 12 V |
| Battery Switch | Automatic |
| Cabin Safety | FOPS-ROPS |
| Engine | |
| Brand | John Deere 4.5 4045CI |
| Type | 4 Cylinder Diesel |
| Power | 173 hp (129 kW) |
| Injection | Common Rail – 4 valves |
| Exhaust Emissions | EU 2016/1628 Stage V |
| Alternator | 200 A |
| Air Engine Intake | Pre-heated |
| Radiator | Air Intercooler |
| Fan | Reversible, Self-cleaning |
| Fuel Tank Capacity | 245 Liters |
| AdBlue Capacity | 23 Liters |
| Hydraulic System | |
| Closed Circuits: | |
| Cutting Head Pump | Piston |
| Translation Pump | Piston |
| Open Circuits: | |
| Arm Movement | Gear – Optional: Piston |
| Brakes System | Gear |
| Steering System | Gear |
| Hydraulic Distributor | 6/7 Sections |
| Oil Flow Attachment | 160 l/min |
| Oil Pressure Attachment | 290 bar |
| Transmission and Brake System | |
| Transmission | Hydrostatic |
| Traction | 2×4 – 4×4 |
| Speed Variation | 0 – 40 km/h |
| Manual Gearbox | 2 Gears |
| Wheel Alignment | Electronic |
| Front Axle | Oscillating |
| Front Axle Block | Hydraulic |
| Steering Axles | 2 Axles |
| Axle Block | Front 100%, Rear 100% |
| Parking Brake | Negative |
| Service Brakes | 8 Discs |
| Dimensions and Weight | |
| Length | 5960 mm |
| Height | 3990 mm |
| Width | 2540 mm |
| Wheelbase | 2500 mm |
| Machine Weight without Equipment | 13800 kg |
Three Different Geometries

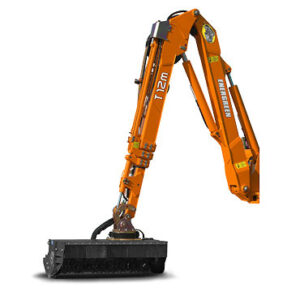

T8 – T10 – T12 Meters

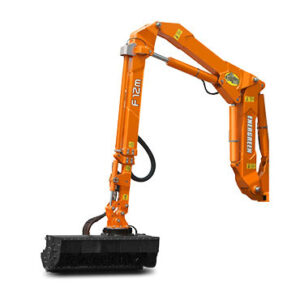

F9.5 – F11 – F12 Meters

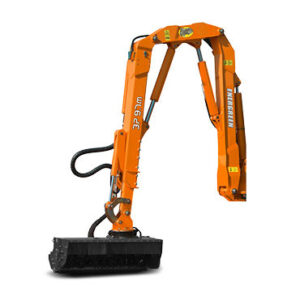

3P 9.5 Meters

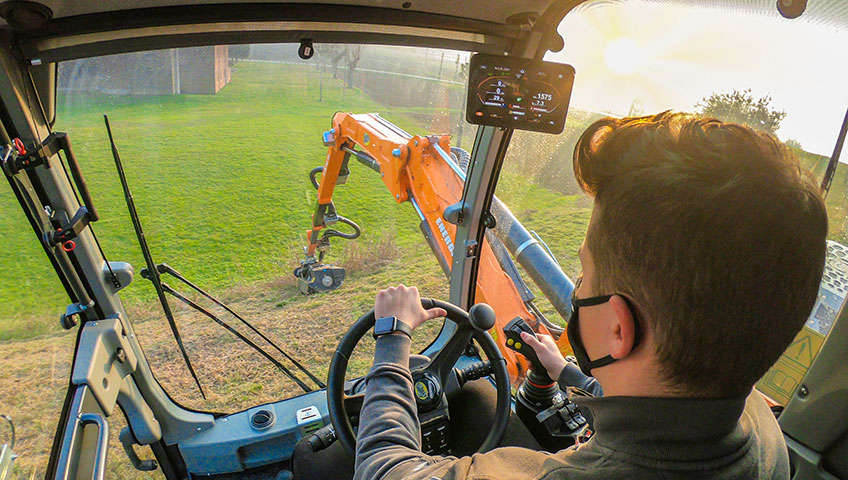

Extreme 360° Visibility
Visibility is an essential element for a correct and safe use of the machine while working and moving, and has always been one of Energreen strengths!
Energreen ILF Alpha has a comfortable and spacious cabin, equipped with a large windscreen which allows the operator to have an efficient and total view of the work, keeping a high level of comfort and physical wellness. In terms of safety, the cabin is certified by FOPS-ROPS tests: anti-tipping, against the risk of falling objects, soundproofed, provided with an efficient cooling system, and equipped with all that features necessary to assure the operator a safe and comfortable working environment.

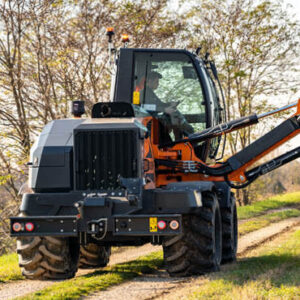

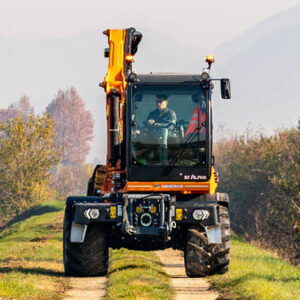

Rotating Cabin
The rotation of the cab allows the operator to cut the grass on both directions, without rotating the machine and saving time. The rotating cabin allows the operator to always keep the correct body posture, avoiding stress and backpain or stiff neck, as well as managing the work with great comfort and care.
