ILF ATHENA
Professional Brushcutter Machine

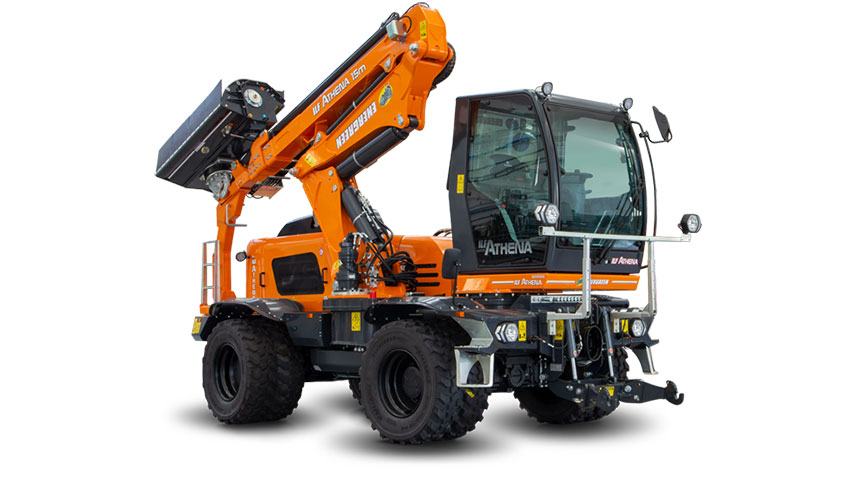

Energreen ILF ATHENA is a professional brushcutter machine which, thanks to its innovative technological contents, offers unparalleled performance, great flexibility and operational safety. The machine is equipped with a 15-meter telescopic boom, where in addition to the classic mulching head, it is possible to apply several tools. At the front it is possible to equip the machine with a lifter with PTO or with a DIN plate, in order to apply a front accessory to be used simultaneously with the brush cutter arm.
Features Include:
MULTIFUNCTIONAL
- The Energreen ILF ATHENA model mounts a 15 meter arm of undisputed high quality and great reliability. In addition to the classic cutting head, it is possible to apply various equipment for the care of road and river green, the reclamation of green and forest areas, winter roads, earth moving.
MANEUVERABILITY
- All-wheel drive with 4 steering wheels with three different types of steering: 2 steering wheels, 4 round and crab steering wheels.
- Bi-directional work.
SAFETY AND COMFORT
- FOPS-ROPS approved cabin.
- High visibility panoramic glass.
- Excellent working ergonomics.
- Stability check.
PRODUCTIVITY
- Work in both directions.
- Maneuverability on all terrains.
- Multiple attachments applicable simultaneously.
QUALITY
- Reinforced frame in special steel.
- Certified components.
- Powerful and tested Tier 4f engine.
- HEAVY DUTY hydrostatic transmission.
EXTREME VISIBILITY
- Maximum visibility (360°) thanks to the large windscreen for a total and perfect view of the work environment.
Specifications
Cabin
Photos
Video
Specifications
| ILF ATHENA | |
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Rotary Lamp | Switch in the Cabin |
| Air Conditioning | Electronic |
| Rear Window | Darkened Anti UV |
| Seat | Air Suspension, Adjustable |
| Power Socket for Devices | 12 V |
| Battery Switch | Automatic |
| Cabin Safety | FOPS-ROPS |
| Machine Weight | 18,000 kg |
| Engine | |
| Brand | Deutz 6.1 |
| Type | 6-Cylinders Diesel |
| Power | 220 hp (160 kW) |
| Injection | Common Rail DCR |
| Emissions | TIER 5f |
| Alternator | 12 V – 150 A |
| Air Engine Intake | Pre-heated |
| Radiator | Intercooler |
| Fan | Reversible, Self-cleaning |
| Engine Data Visualization | Onboard Computer |
| Fuel Tank Capacity | 300 Liters |
| Hydraulic System | |
| Pump and motors in closed circuit: | |
| Cutting Head Pump | Pistons |
| Translation Pump | Pistons |
| Pump and motors in closed circuit: | |
| Arm Movement (LS) | Pistons |
| Brakes System | Gear |
| Steering System | Gear |
| Hydraulic Distributor | 6 Sections |
| Hydraulic Oil | H46 Mineral |
| Oil Flow | 65 – 240 l/min |
| Oil Pressure | 210 – 480 bar |
| Flail Head Weight | 460 kg (1.5 m model) |
| Transmission and Brake System | |
| Transmission | Hydrostatic |
| Traction | Permanent All-wheel Drive 4×4 |
| Speed Variation | 0 – 40 km/h |
| Manual Gearbox | 2 Gears |
| Wheel Alignment | Electronic Control |
| Front Axle | Oscillating |
| Front Axle Block | Hydraulic |
| Steering Axles | 2 Steering Axles |
| Axle Block | Front 100%, Rear 100% |
| Parking Brake | Negative |
| Service Brakes | 6 Discs |
Cabin
ROTATING CABIN
The cabin is certified in terms of safety by FOPS-ROPS tests against the risk of overturning and falling objects, is adequately soundproofed, equipped with an efficient air conditioning system and equipped with all those requirements necessary to ensure the operator a working environment definitely safe and comfortable. The rotation of the cab allows the mowing of the grass in both DRIVE directions, without the need to turn the machine with a significant reduction in time and labor costs. The rotated cabin allows the operator to maintain a correct body posture, avoiding stress and back or neck problems, as well as managing the work done in great comfort and attention.
