ilf kommunal
The indispensable multifunction machine.
This machine is appropriate to work all year with different equipment; it is equipped with a particular special moving front system that allows to interchange all tools in few minutes, with the help of only one operator, without the employment of particular lifting means, all in complete safety.
Energreen ILF KOMMUNAL is an extremely safe and reliable self-propelled hydrostatic machine in every work environment, thanks to the wide range of tools; indeed, it appears to be the best solution for councils, public entities bodies and administrations.
Features Include:
MULTIFUNCTIONAL

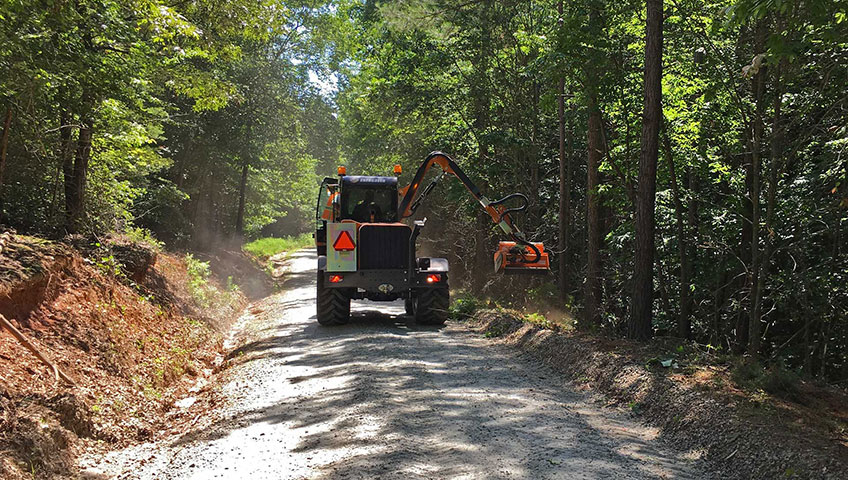

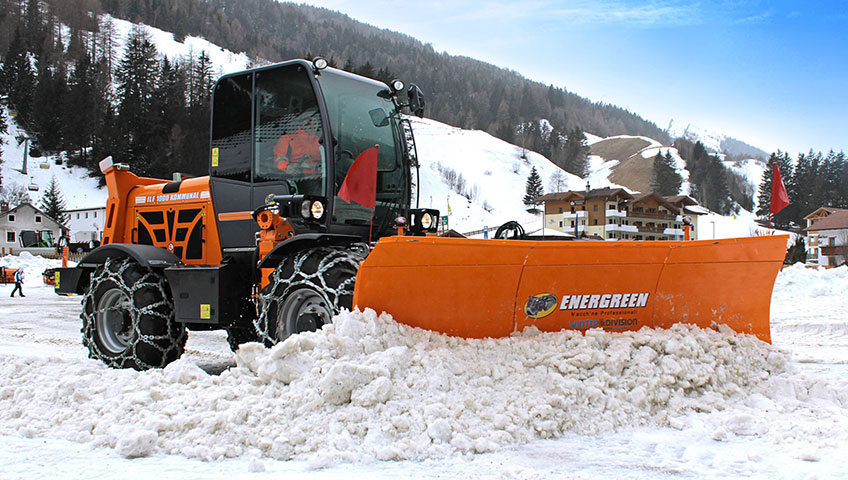

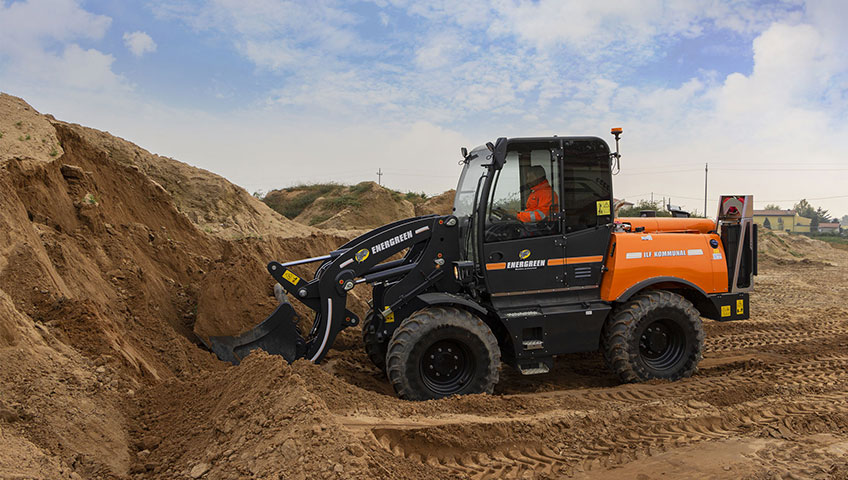

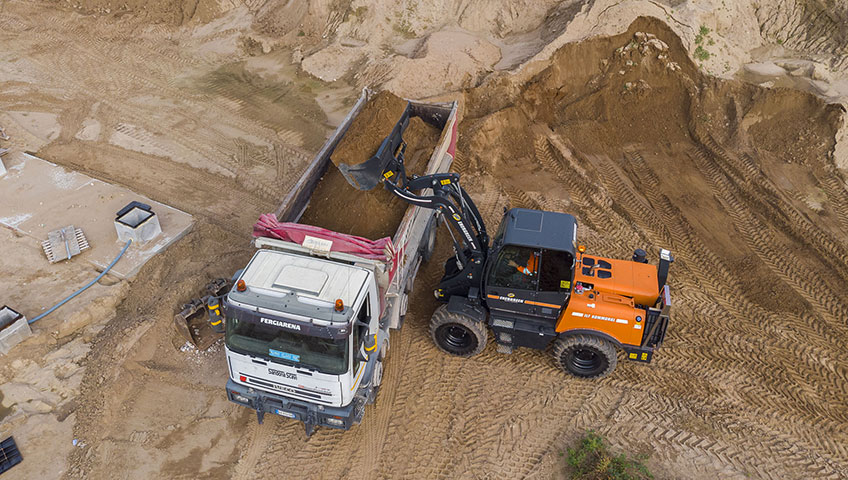

- Front and rear attachment of equipment for road or forest care, maintenance of green areas, winter roads, earthmoving or construction.
- Front mounting of sturdy telescopic arms up to 7.2 meters.
- Possibility of lateral installation of a very useful mowing disc for guardrails.
MANEUVERABILITY
- All-wheel drive: 2 steering wheels, 4 steering and crab wheels.
- Bi-directional work.
SAFETY AND COMFORT
- FOPS-ROPS approved cabin.
- High visibility panoramic glass.
- Excellent working ergonomics.
- Stability check.
HIGHER PRODUCTIVITY
- Quick equipment connection system.
- Multiple equipment applicable simultaneously.
- Maximum maneuverability on all terrains.
- Hydraulic power and operating technology.
QUALITY
- Reinforced frame in special STRENX® steel.
- Certified components.
- Powerful and proven Tier 4F engine.
- HEAVY DUTY hydrostatic transmissions.
EXTREME VISIBILITY
- Maximum 360° visibility with large windows for the full monitoring of the working environment.
| ILF KOMMUNAL | |
| Cabin Safety | ROPS – FOPS (1° Level) |
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Seat | Air Suspension, Adjustable |
| Drive | 4×4 Permanent |
| Speed Variation | 0 – 40 km/h (continuous) |
| Manual Gearbox | 2 Gears |
| Machine Weight without Equipment | 6520 kg |
| Machine Weight with Equipment | 10.000 kg |
| Motor | |
| Brand | Deutz TCD 3.6 |
| Model | 4-Cylinder Diesel |
| Power | 135 HP (100 kW) |
| Injection | Commonrail 4 Valves for Cylinder |
| Exhaust Emissions | EPA TIER 4f |
| Alternator | 120 A |
| Fuel Tank | 180 Liter |
| Fan | CLEANFIX (Optional) Reversible Self-cleaning |

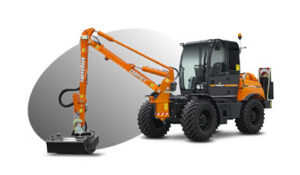

COMPACT Arm
The COMPACT arm has been designed to work in tight spaces. Its geometry enhances the features of the machine. It allows to work side by side to the machine wheels, to mow hedges or bushes vertically up to a height of 9* meters. The arm in these configurations is always inside the machine profile, allowing to work always within a vehicle footprint of 2.2 meters*.
* Variable dimensions depending on the equipment.

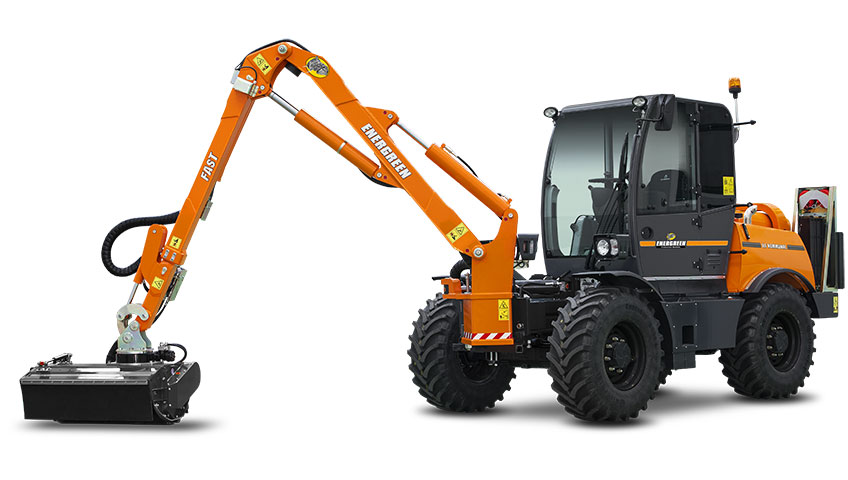

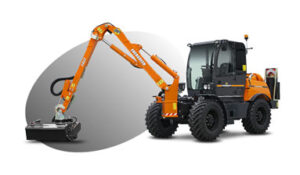

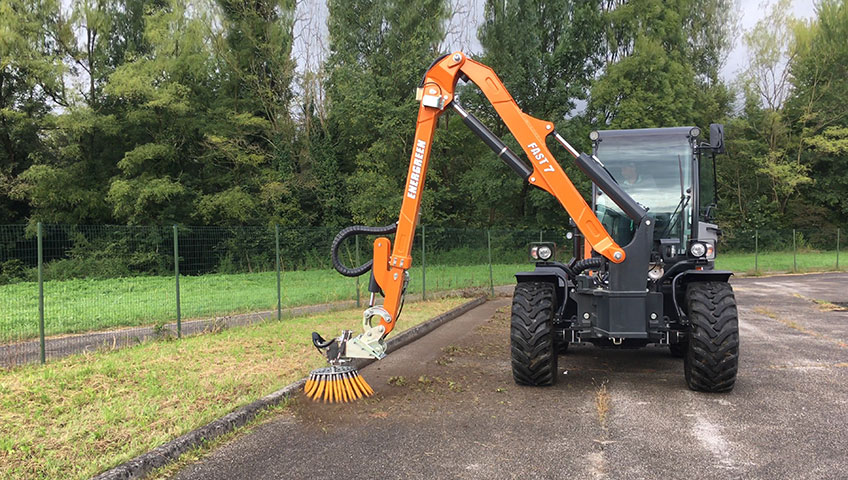

FAST Arm
The FAST telescopic arm has been designed to work with an extension up to 7 meters wide* and 8.4 meters in height*. Its particular geometry enhances the characteristics for road maintenance where you want a combination of mowing roadside and finishing work far from the roadside. The sturdy telescopic extension allows greater work agility and maximum performance even in difficult situations.
* Variable dimensions depending on the equipment.

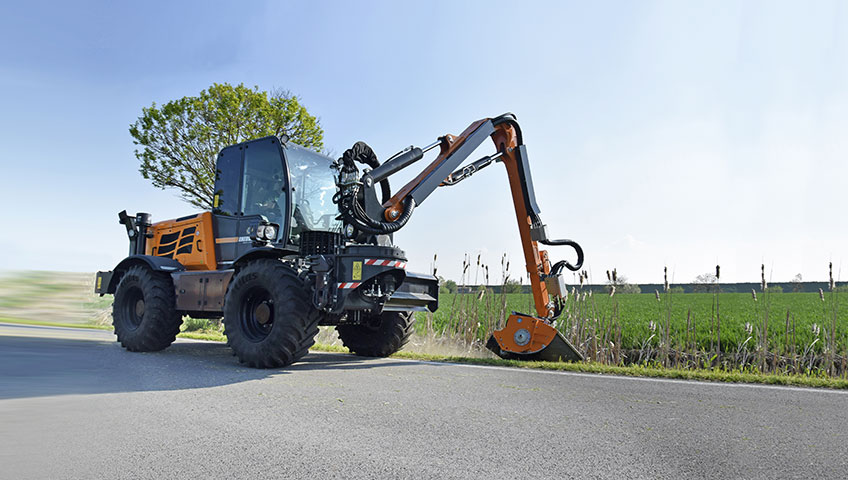

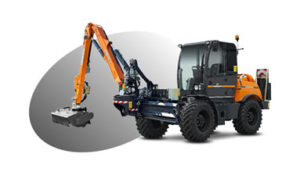

ORBITAL Arm
ORBITAL 7 is a sturdy telescopic arm designed to work on both sides of the roadway while maintaining minimum footprint on the road. This is possible thanks to a 290 degrees hydraulic rotator and a hydraulic shifter that allows it to perform a horizontal shift from right to left and viceversa.
HIGHER SAFETY AND PROTECTION
The cabin is FOPS-ROPS approved, ensuring protection against overturning and falling objects. It is equipped with a sealing system through soft seals on the fixed and mobile glazing, mounted on elastic supports in the support points, resulting completely isolated and efficiently air-conditioned. All this makes the machine suitable for work in dusty and noisy environments for many hours a day in total comfort, as it is in the Energreen philosophy.3 STYLES IN THE CABIN

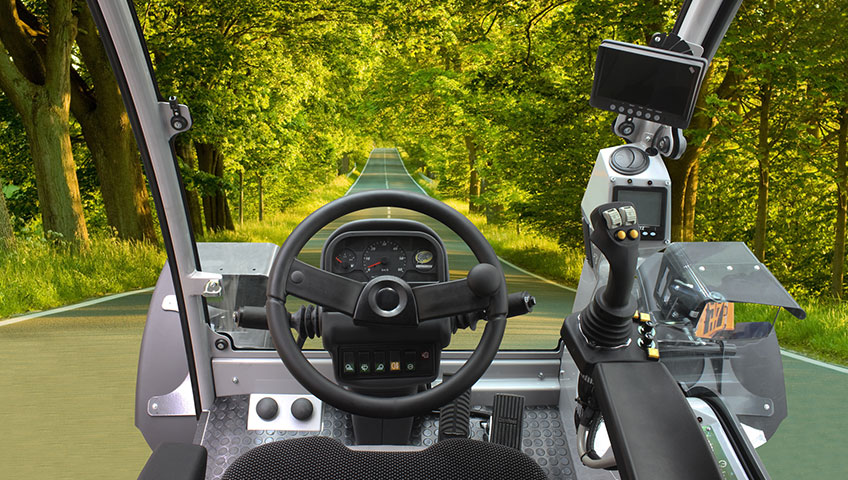

The spacious FOPS-ROPS approved cabin is available in three different versions, to make your work easier and more comfortable.Standard Cabin
- Tilting and adjustable steering wheel.
- On-board computer.
- Tilting steering column.
- Adjustable air suspension seat.
- Electric direction reverser.
- Air conditioning system.
- Anti-pollen air conditioning filter.
- Adjustable armrest with joystick.
- Rear windows darked anti U.V.
- Front window washer wiper.
- Rotating LED lamp.
- Cabin door divisible by 60/40.
- Rear glove box.
- Internal courtesy light.
- Emergency glass breaking hammer.
- Provision for fire extinguisher.
- Automatic switch cut-off of the battery.
- External electrical socket 12 volt.
- Side pocket.
- Document holder.
- Cigarette lighter.
- Foldable ladder step.
Comfort Cabin
In addition to the installation of the “Standard Cabin”
- Cruise control.
- Pedal for instantaneous inversion.
- Radio with Bluetooth/DAB.
- Seat with shock absorber for the lumbar side.
- Potentiometer for changement the displacement of the implement.
- Windscreen curtain with self-wrapping.
- LED working lights.
- Coat hanger.
- Right rear-view mirror.
Prestige Cabin
In addition to the installation of the “Standard Cabin”
- Cruise control.
- Pedal for instantaneous inversion.
- Radio with Bluetooth/DAB.
- Seat with shock absorber for the lumbar side.
- Potentiometer for changement the displacement of the implement.
- Windscreen curtain with self-wrapping.
- LED working lights.
- Coat hanger.
- Right rear-view mirror.
- Monitor screen with 1 camera.
- Second flashing lights.
- Porthole with grille, curtain and window washer wiper.
- Lateral curtain.
- Windshield wiper on the right side.
- Fire extinguisher.
