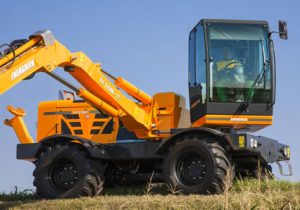

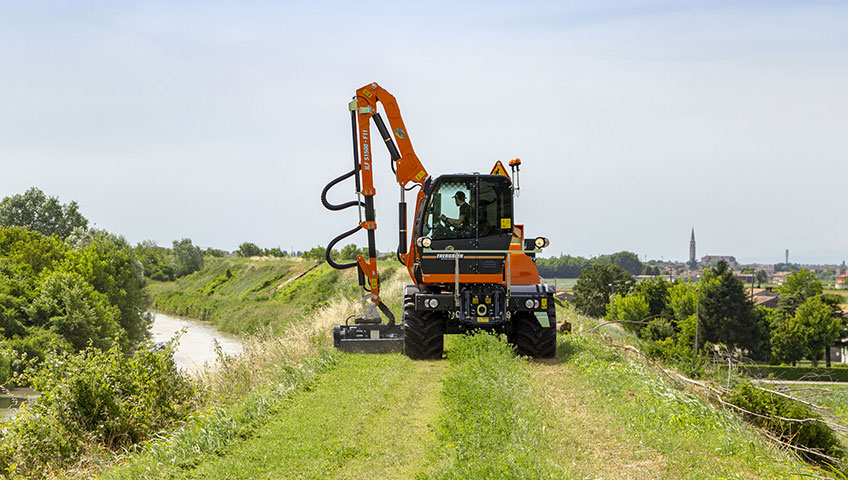

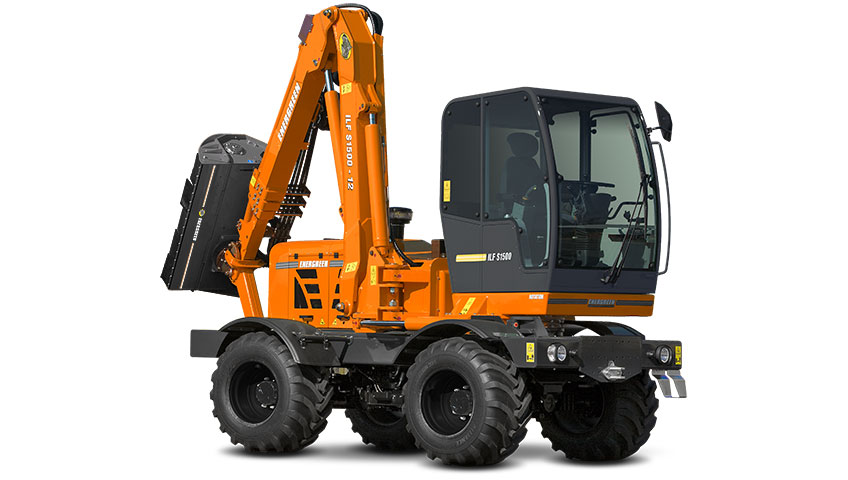

ILF S1500
Brushcutter with Multifunction Arm.
The brushcutter machine with multifunction arm, Energreen ILF S1500 is the professional choice for every application and represents a high technology European product in the market of green maintenance thanks to its excellent work performances, operative versatility and safety. Energreen ILF S1500 has been designed to satisfy all professional operator’s needs; in fact, it is possible to configure length and model of the arm, engine power and choose among a wide range of options.
Features Include:
MULTIFUNCTIONAL
- Energreen ILF S1500 T in the telescopic arms version is the most versatile as it is equipped with a very robust arm, to be able to safely use all types of equipment, available in three extension models and configurable with a wide range of accessories and optional equipment for specialists more demanding.
MANEUVERABILITY
- 4×4 all-wheel drive with 4 steering wheels, selectable in the following ways: two steering wheels, four steering wheels or crab wheels.
- Work in any direction.
SAFETY AND COMFORT
- Cabin tested according to FOPS-ROPS.
- Panoramic glass with perfect 360° visibility.
- Excellent operational ergonomics.
- Stability check.
PRODUCTIVITY
- Multiple devices can be used simultaneously.
- Maximum maneuverability on any terrain.
- Hydraulic transmission.
QUALITY
- Reinforced frame in special STRENX® steel.
- Certified components.
- Powerful and proven Tier 4F engine.
- HEAVY DUTY hydrostatic transmissions.
EXTREME VISIBILITY
- Maximum visibility (360°) thanks to the large windscreen for a total and perfect view of the work environment.
| ILF S1500 | |
| Cabin Safety | ROPS – FOPS (1° Level) |
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Seat | Air Suspension, Adjustable |
| Drive | All-wheel drive, 4×4 Permanent |
| Drive Speed Variation | 0 – 40 km/h (continuous) |
| Manual Gearbox | 2 Gears |
| Machine Weight, Max | 14,700 kg |
| Motor | |
| Brand | Deutz TCD 4.1 L04 |
| Model | 4-Cylinder Diesel |
| Power | 155 HP (115 kW) |
| Injection | Commonrail with 4 Valves per Cylinder |
| Exhaust Emissions | EU 97/68 Stage IV – EPA TIER 4f |
| Alternator | 150 A |
| Fuel Tank Capacity | 260 Liters |
| Fan | FLEXXAIRE Reversible Self-cleaning |

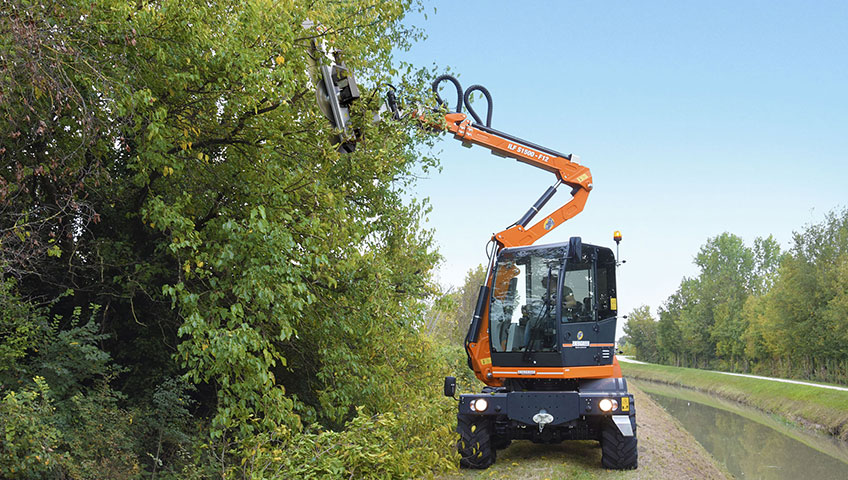

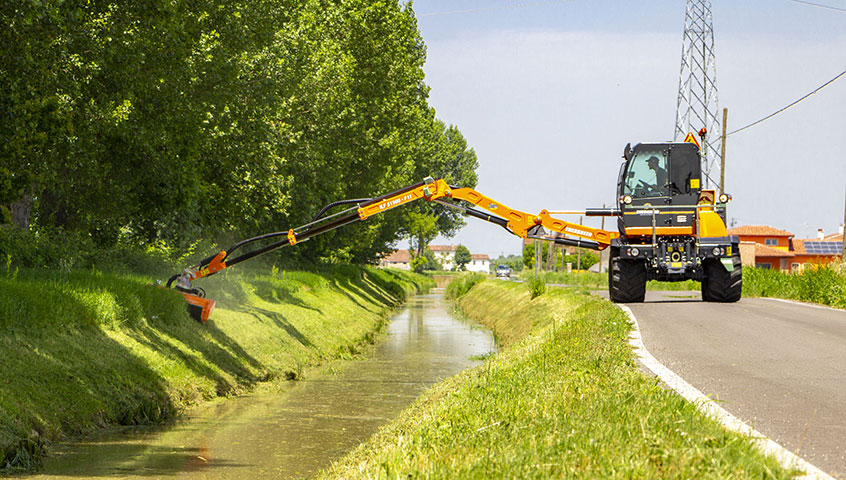

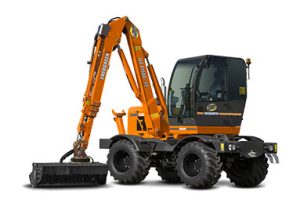

Telescopic Arm T
ILF S1500 T: DOUBLES PRODUCTIVITY
The Energreen ILF S1500 version with telescopic arm – T type – is the most versatile as it has a very robust arm and is able to safely use any type of equipment. Available in three extension models and configurable with a wide range of optional accessories and equipment for the most demanding specialists
Models: T8 (8 meters) – T10 (10 meters) – T12 (12 meters)

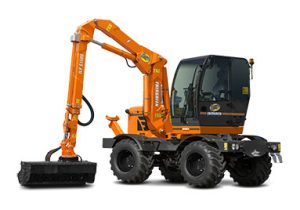

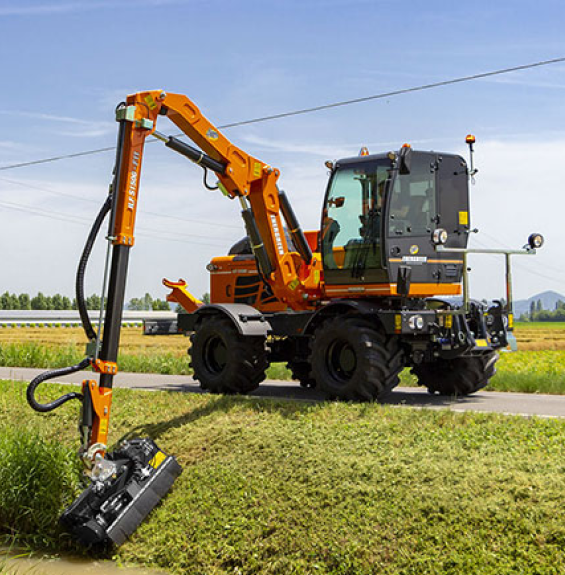

Telescopic Arm F
ILF S1500 F: IDEAL FOR NARROW SPACES
Professional machine for cutting grass on roadsides and narrow areas. The geometry of the F arm is particularly suitable for operating along the roadside, facilitating the overcoming of obstacles such as road signs, for grass cutting near the wheel or to use the head or the lopper bar in vertical position. All this makes the machine particularly versatile even in the most difficult operating conditions or in presence of obstacles.
Models: F9,5 (9.5 meters) – F11 (11 meters) – F12 (12 meters)

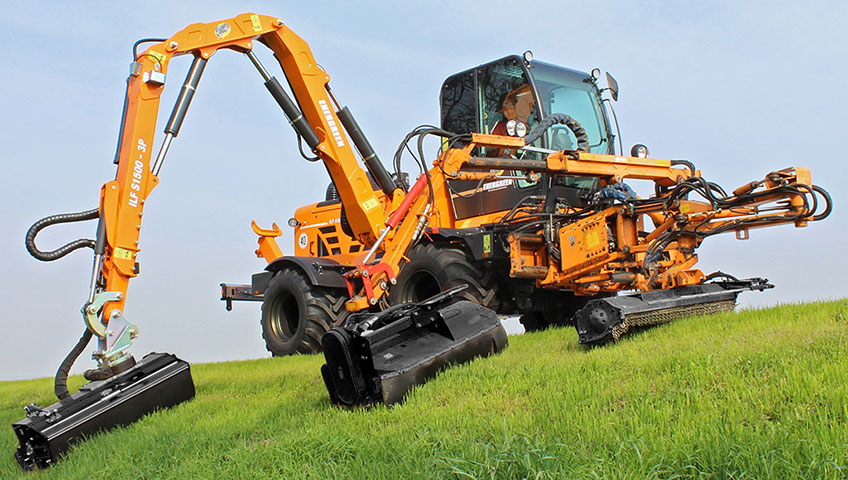

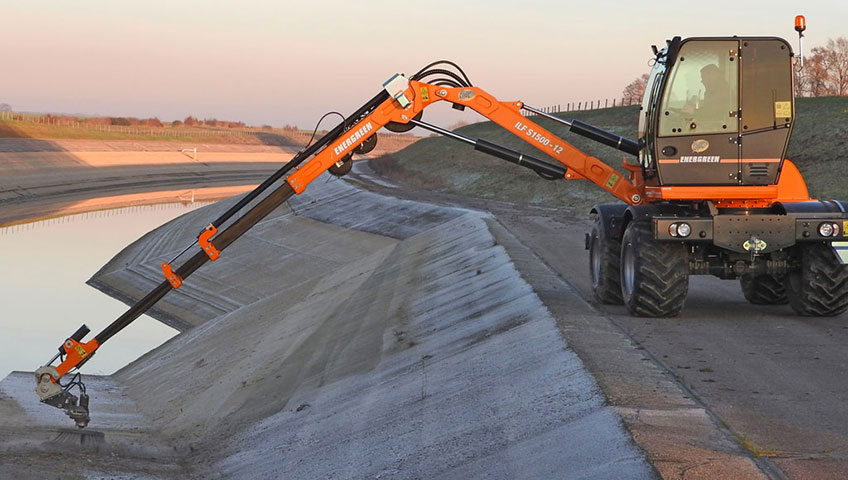

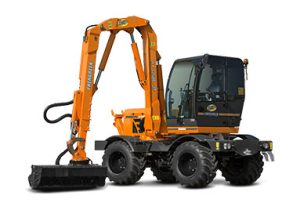

Telescopic Arm 3P
ILF S1500 3P: ROAD SPECIALIST
Professional machine for cutting grass on road edges and canals. The geometry of the 3P arm and the particularly robust structural construction, as well as overcoming obstacles, make this arm suitable for the use of the mowing bucket that allows you to cut the grass into the canals. This movement, typical of an excavator, requires a robust triple-jointed arm.
Model: 3P (9.7 meters)

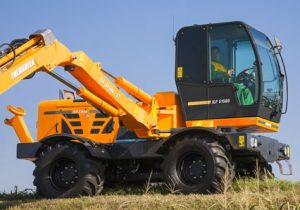

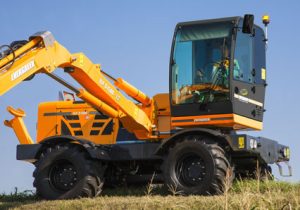

ROTATING CABIN

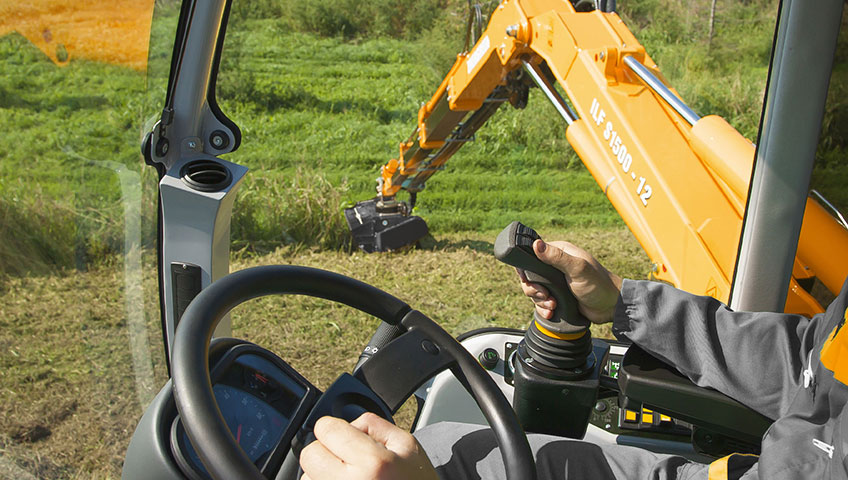

The cabin is certified in terms of safety by FOPS-ROPS tests against the risk of overturning and falling objects, is adequately soundproofed, equipped with an efficient air conditioning system and equipped with all those requirements necessary to ensure the operator a working environment definitely safe and comfortable.
The rotation of the cab allows the mowing of the grass in both DRIVE directions, without the need to turn the machine with a significant reduction in time and labor costs. The rotated cabin allows the operator to maintain a correct body posture, avoiding stress and back or neck problems, as well as managing the work done in great comfort and attention.
3 STYLES IN THE CABIN
The spacious FOPS-ROPS approved cabin is available in three different versions, to make your work easier and more comfortable.
Standard Cabin
- 90 ° rotating cabin.
- Tilting and adjustable steering wheel.
- FOPS-ROPS homologated cabin.
- On-board computer to control the DEUTZ engine.
- Height-adjustable and tilting steering column with tools.
- GRAMMER seat with adjustable compressed air suspension and shock absorber in the lumbar area.
- Electronic direction reverser.
- Air conditioning with internal and external temperature regulation.
- Pollen filter for the air conditioner.
- Right adjustable armrest with Joystick connector.
- Darkened rear windows with UV protection.
- Front wipers.
- LED lamp adjustable and height adjustable, with switch in the cabin.
- Cabin door divisible 60/40.
- Rear storage compartment.
- Cabin interior lighting.
- Emergency hammer.
- Pre-installation bracket for 2 kg fire extinguishers.
- 2 kg fire extinguisher.
- Automatic battery switch.
- 12 V external socket.
- Side shelves.
- Document holder.
- 12V cigarette lighter.
- Folding step kit with handle.
Comfort Cabin
In addition to the installation of the “Standard Cabin” Layout.
- Cruise control.
- Quick inversion pedal.
- Car radio complete with Bluetooth / DAB.
- Electronic potentiometer for pump control of the cutting head.
- Self-winding sun protection on the curved windscreen.
- 4 LED work lights (2 cab + 1 arm + 1 head).
- Clothes hangers.
- Right rear view mirror.
- Adjustable clock for wipers.
- Rotating LED headlights.
Prestige Cabin
In addition to the installation of the “Standard Cabin” Layout.
- Cruise control.
- Quick inversion pedal.
- Car radio complete with Bluetooth / DAB.
- Electronic potentiometer for pump control of the cutting head.
- Self-winding sun protection on the curved windscreen.
- 4 LED work lights (2 cab + 1 arm + 1 head).
- Clothes hangers.
- Right rear view mirror.
- Adjustable clock for wipers.
- Rotating LED headlights.
- Monitor with 1 camera.
- 2nd direction indicator.
- Porthole kit with grill, curtain and windscreen wiper.
- Side wiper, right side.
