Head 130

Energreen HEAD 130

Mulching Head

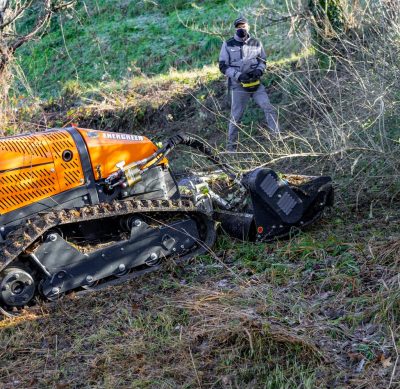

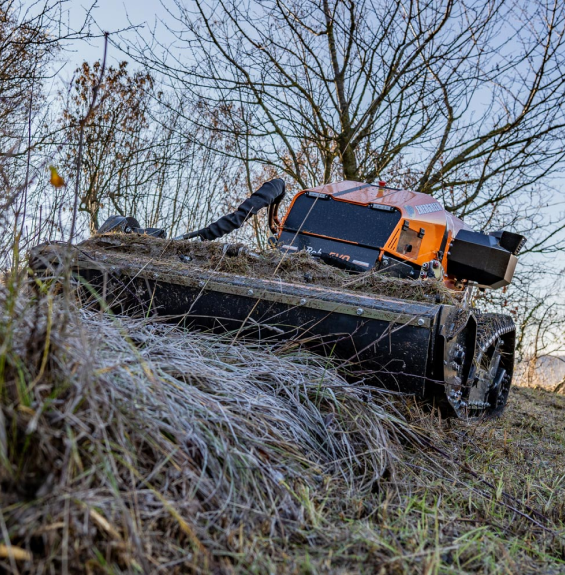

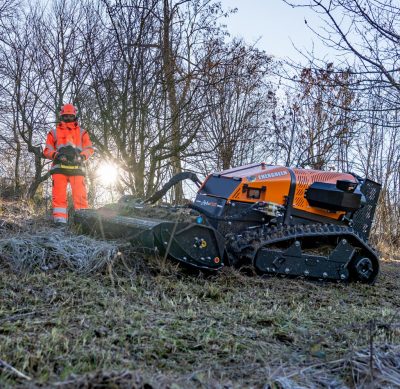

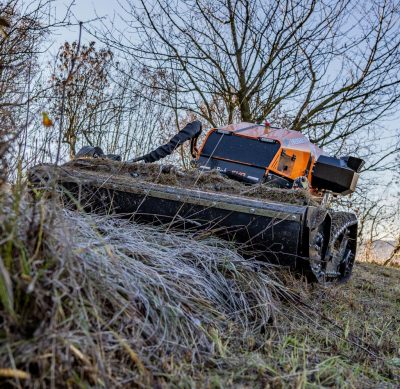

Energreen Head 130 mulching head is a grass cutting head combined to the remote-control tool carrier RoboEVO. The tool is strong and reliable, with a frame made of high resistance Strenx® steel, wear-proof and shock-proof.

The head is the ideal solution to cut grass and shrubs up to a diameter of 1.2 in. Depending on the situation, it can be equipped with a rotor with hammers or with Y flails.

In the lower part, two support slides and a roller can be adjusted for cutting the grass at the desired height, depending on the operator needs. Moreover, a front rub protection and a chain protection, make the mulcher safe and reliable against the projection of debris. The working length can reach 51 in and the oscillation goes up to 20°.

The equipment can be easily attached to the radio control robot RoboEVO through hydraulic coupling CEJN or screw couplings.

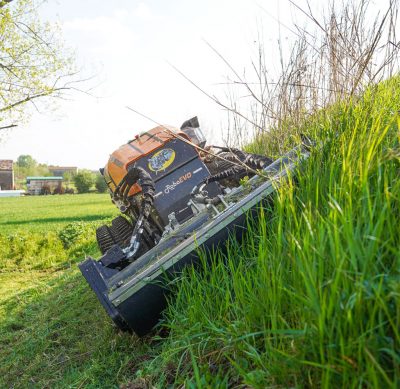

The tool carrier RoboEVO together with the mulching Head 130 is excellent for grass mowing along riverbanks, paths, canals, roads, and highways even on slopes up to 55°.

Specifications

Photos

Video

Specifications

TECHNICAL DATA	HEAD 130
Width	56 in
Depth	26 in
Height	21 in
Cutting Width	51 in
Max Cutting Diameter	1.2 in
N° Flails “Y”	22
N° Hammer	26
Oscillation	+/- 20°
Max Rotor Speed	3000 rpm
Speed Device	47 m/s
Pressure	290 bar/4200 PSI
Oil Flow	14 gal/min
Hydraulic Motor	1.5 HP
Weight	352 lbs
