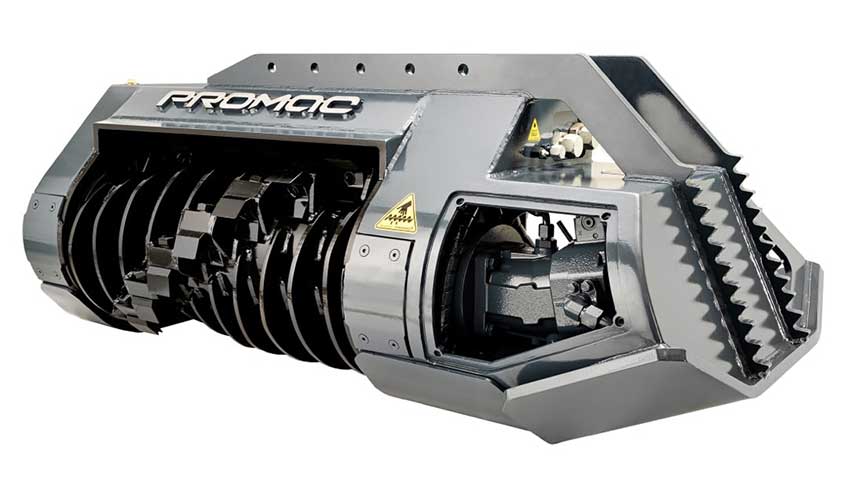

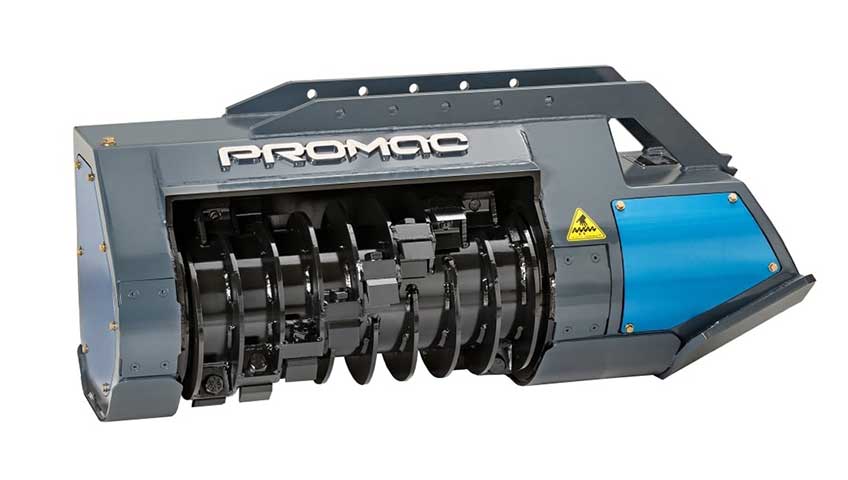

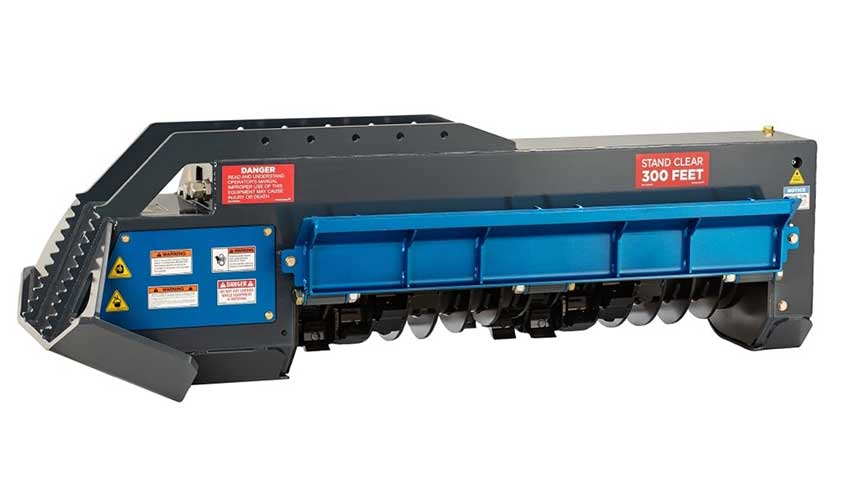

Promac LDM Excavator Mulcher
Promac LDM Excavator Mulcher

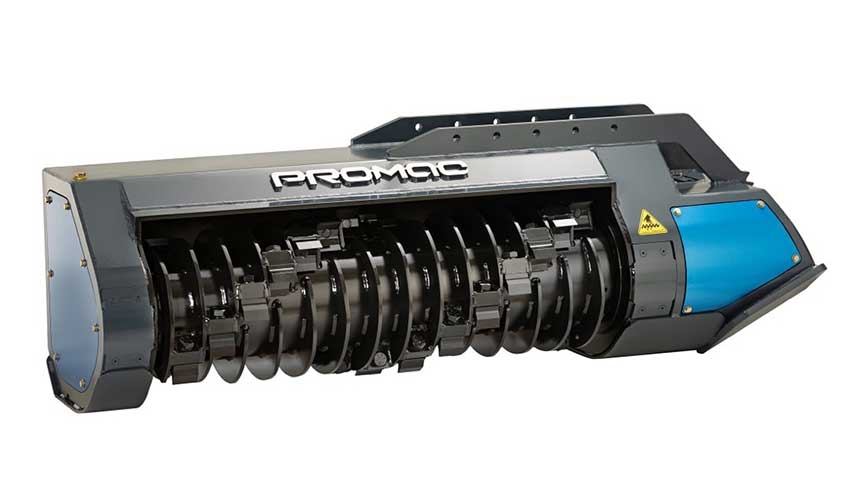

Manufactured here in North America and built specifically for 8 to 14 ton excavators the LDM makes quick work of brush and 6″ diameter trees while requiring only 15gpm @ 5,000psi. This mulcher is available in 30″ and 50″ wide cut width and the drum can be equipped with your choice of three styles of cutter teeth to suit the working conditions. The mulcher is powered by a hydraulic variable torque bent axis piston motor with the Promac Automatic Torque Controller (ATC) for class leading productivity. Promac extensively utilizes high strength steel and wear resistant parts that are easily replaceable, ensuring your operation runs smoothly for years.
Promac Brush Mulcher LDM Features:
- Extensive use of high strength steel throughout.

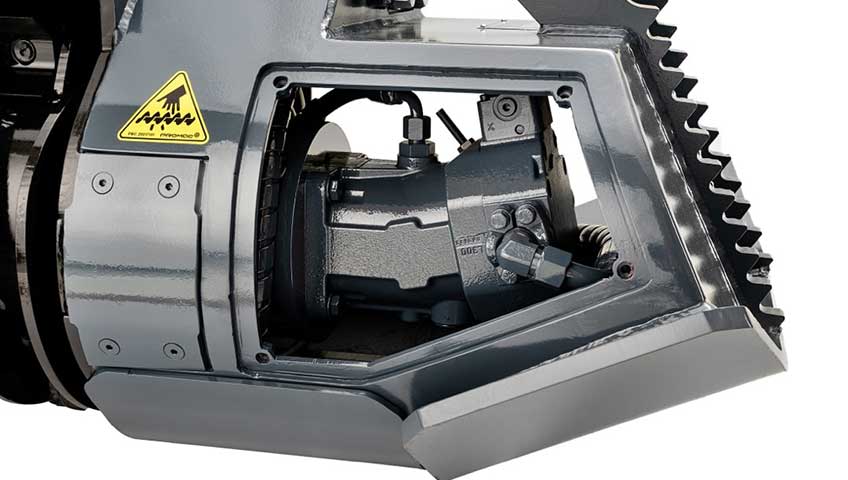

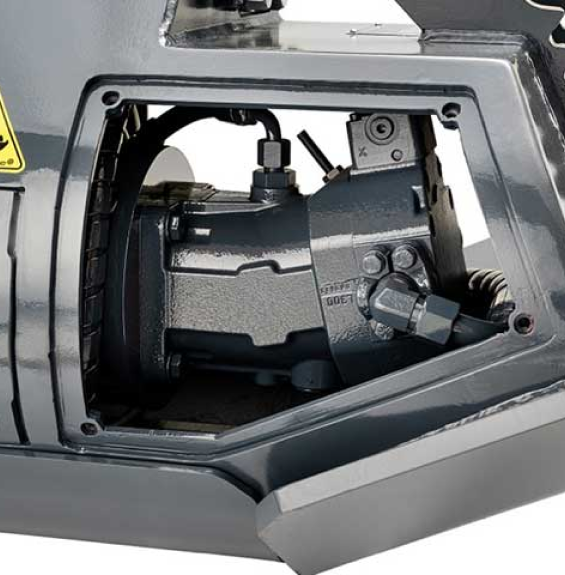

- 55cc standard variable torque bent axis piston motor with available Promac ATC.
- Rotatable and sharpenable blade style “chipper” teeth.
- Bolted on dust seals help keep debris out of the machine bearings.
- Welded-in skid shoes made of 1/4" AR400 wear plate.
- Welded rear anvil made of AR400 plate.
- Replaceable rotor stub-shafts with spherical roller bearings.
- Direct drive with isolation coupler. Proven, effective protection for the mulcher drive motor.

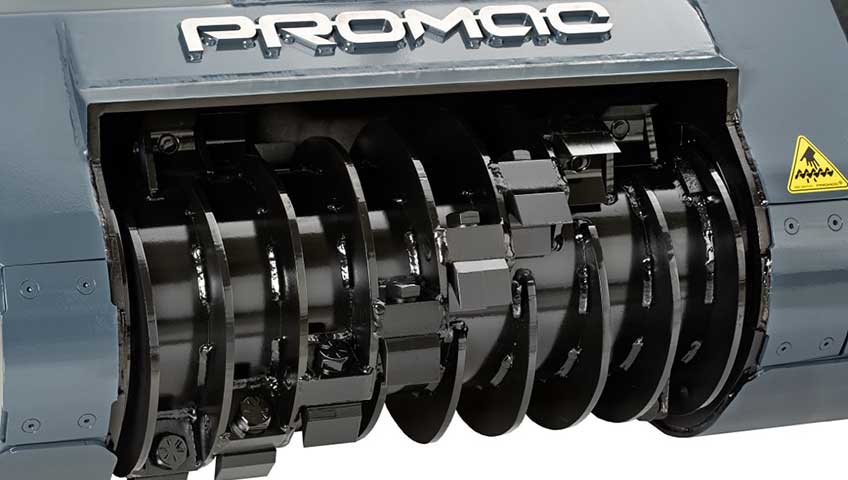

- Chip production rotor (bite limiter).

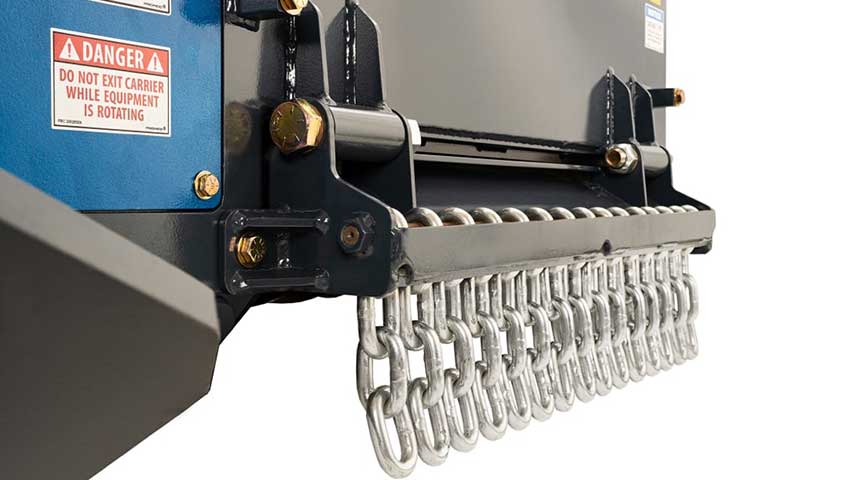

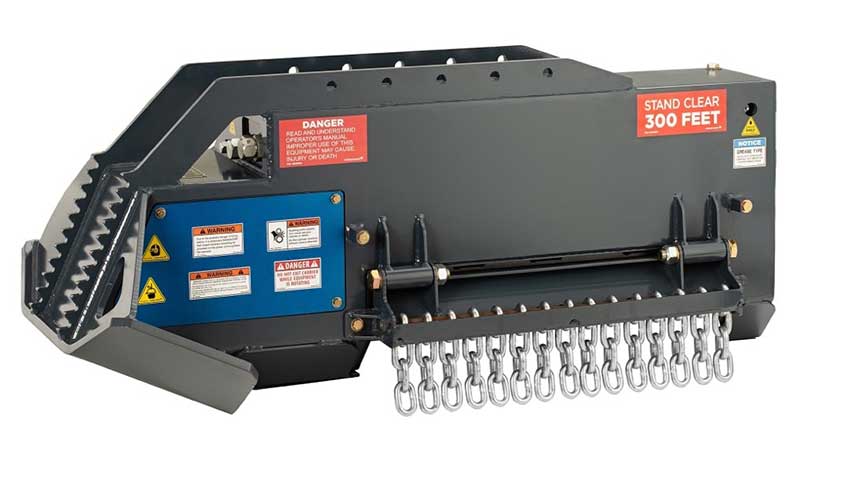

- Options include excavator mount and rear chain bar.
- Optional tooth configurations (adapters required): double carbide teeth, industry standard beaver teeth.
Applications:
- Land clearing.
- Forest fire prevention.
- Road development and maintenance.
- Pipeline development and maintenance.
- Trail development and maintenance.
- Transmission line development and maintenance.
- Railway development and maintenance.
Specifications
Photos
Video
Specifications
| Specifications | LDM 30 | LDM 50 |
| Excavator Size (tons) | Min: 6 | Max: 10 | Min: 8 | Max: 15 |
| Cut Width | 30″ | 50″ |
| Approx. Weight (1) | 1200 lbs | 1600 lbs |
| Motor Size (cc) | 55 | 55 |
| Motor Type | Variable Torque Hydraulic Bent Axis Motor | Variable Torque Hydraulic Bent Axis Motor |
| Flow Min (GPM) (2) | 15-30 | 15-30 |
| Flow Pressure (PSI) | 4000-5000 | 4000-5000 |
| Tooling Type (Standard) | Rotatable Knives | Rotatable Knives |
| Tooling Number | 16 | 28 |
| (1) Weight includes flat top mount but does not include pin connection or quick change plates. | ||
| (2) Flow range specified for 55cc variable motor. Other ranges available. Please inquire. | ||
