Spearhead Rollicut 170 – 230 – 290
Rollicut 170 / 230 / 290 Amenity Mower

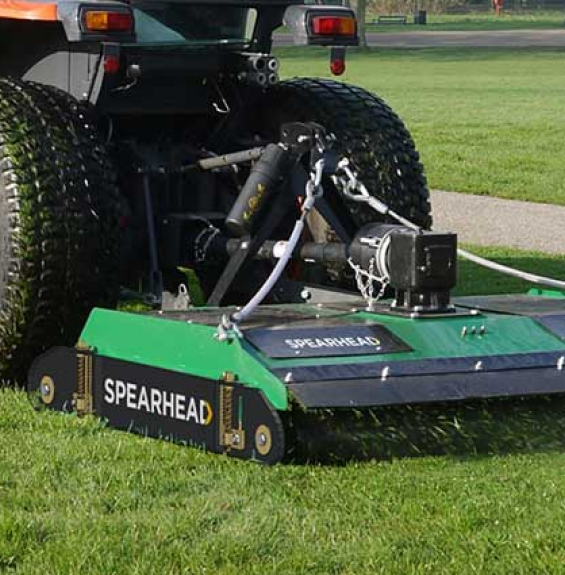

The Spearhead Rollicut inline mower is designed for light-duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course, orchard and topping applications and is the perfect choice for mounting on compact tractors.
This cost-effective inline range is available in either 1.7, 2.3 or 2.9 metre cutting widths, featuring three, high suction style blades per rotor designed to offer a comparable finish to conventional cylinder mowers; but without the expensive maintenance costs.
Self-tensioning belt drive gives reliable power transmission, and with 168mm full width fine adjustment front and rear rollers, heavily baffled deck design and rear rubber flap, a fine mulch cut and well distributed finish, is guaranteed.
Spearhead Rollicut Features:
- Inline mower designed for light-duty amenity mowing.
- Gives a high-quality finish in material up to 20mm.
- Available in either 1.7, 2.3 or 2.9 metre cutting widths.
- 168mm full width fine adjustment front and rear rollers.
- Rear mount only.
| MODEL | TRACTOR HP | PTO SPEED | TRANSPORT WIDTH |
CUTTING WIDTH | NO. OF BLADES | CUTTING HEIGHT |
| ROLLICUT 170 |
35hp (30kW) |
540rpm | 1.86m (6′ 2″) |
1.74m (5′ 8″) |
9 | 0 – 110mm (0″ – 4.3″) |
| ROLLICUT 230 |
45hp (34kW) |
540rpm | 2.42m (7′ 11″) |
2.30m (7′ 6″) |
12 | 0 – 110mm (0″ – 4.3″) |
| ROLLICUT 290 |
55hp (41kW) |
540rpm | 3.02m (9′ 11″) |
2.92m (9′ 7″) |
15 | 0 – 110mm (0″ – 4.3″) |
