Spearhead Multicut 630

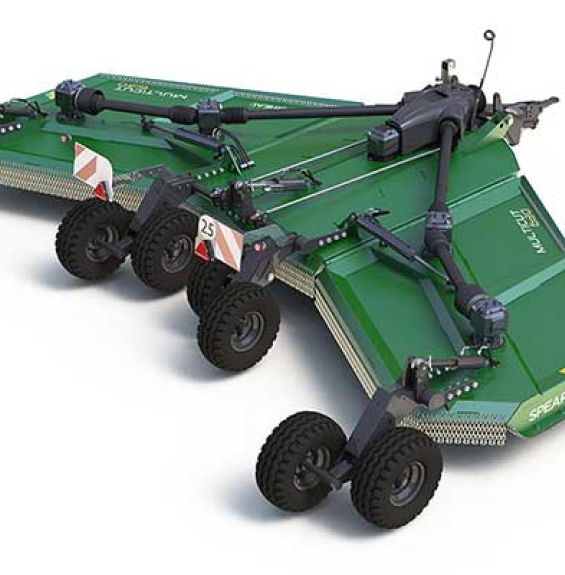

Spearhead Multicut 630 Rotary Mower
Bringing together Spearhead’s renowned rotary mower heritage and a host of new features, the Multicut 630 is Spearhead’s next generation machine that offers a greater durability and a better finish than ever before.
With a cutting width of over 6.3m, covered by 5 cutting rotors featuring Spearhead’s well-established triple high-lift swinging blades, ensures a quality cut in the most demanding of working conditions. Further benefit of Spearhead’s Starcut mulching blade system fitted as standard makes the machine perfectly suitable in applications such as Stubble Management.
Easy to maintain, the Multicut 630 has all driveline clutches accessible under one easy to open splitter gearbox guard ensuring reliable and dependable drive to each of its powerful 165hp rotor gearboxes, further given with piece of mind in the form of an extended 7 year gearbox warranty.
High strength walking axles throughout the whole width of the machine fitted with heavy duty wide tyres, fine height adjustment on each independent hydraulic axle ram and enhanced baffling ensures a excellent, even spread of cut material from a robust machine you can rely on every time you need it.
Spearhead Multicut 630 Features:
- 6.3 metre cutting width.
- 100hp minimum tractor power requirement.
- Heavy duty 250hp splitter gearbox.
- 165hp rotor gearboxes.
- Slip clutch protection.
- Fitted with heavy duty wide tyres.
- Anti-scalp disc.
- 5 cutting rotors featuring Spearhead’s well-established triple high-lift swinging blades.
- Floating wings.
- Rear lighting kit.
| TECHNICAL DATA | MULTICUT 630 |
| Cutting Width | 6.38m (20ft 9in) |
| Overall Width | 6.58m (21ft 6in) |
| Transport Width | 2.46m (8ft 1in) |
| Machine Weight* | 3750kg / 8268lbs |
| Gearbox Rating | 250hp and 165hp |
| Cutting Height | 25mm – 400mm (1in – 16in) |
| Number of Rotors | 5 |
| Number of Blades | 30 |
| PTO Protection | Slip Clutch |
| PTO Speed | 1000rpm |
| Tractor Power Required | 100hp |
| * With front and rear single chain guards. | |
