Mowing Bucket
Herder Mowing Bucket

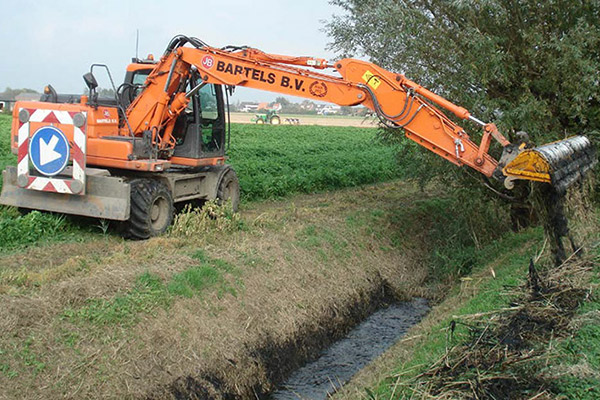

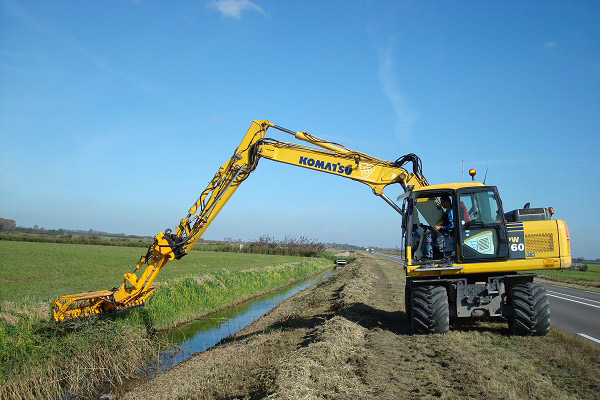

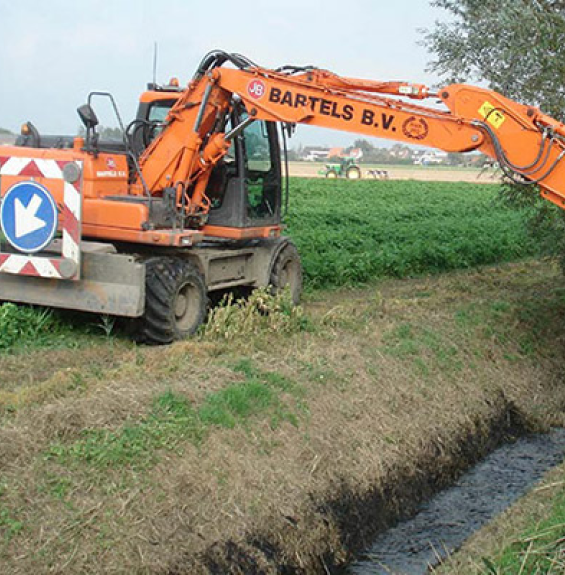

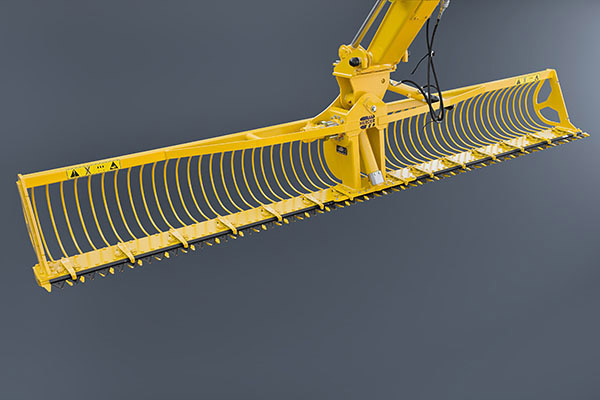

The MRL mowing bucket, a lighter mowing bucket model, is ideal for the Herder Grenadier and medium-sized excavators. The mowing bucket MRZ, the heavier version of the mowing bucket, is suitable for wheel and crawler excavators. You can also choose from different widths, from 2.50 to 5.50 meters. You can even reach widths of up to 8.60 meters by combining two mowing buckets. Furthermore, Herder has two ‘ultra light’ models in its range, with 2.00 and 2.50 meters working widths. These are ideal for a mini excavator in connection with the weight/stability. You simply achieve more with the Herder mowing bucket.
Herder Mowing Bucket Features:
- Mowing bucket for ditch maintenance.
- Available in light and heavy models.
- Suitable for various machines, including Herder Grenadier.

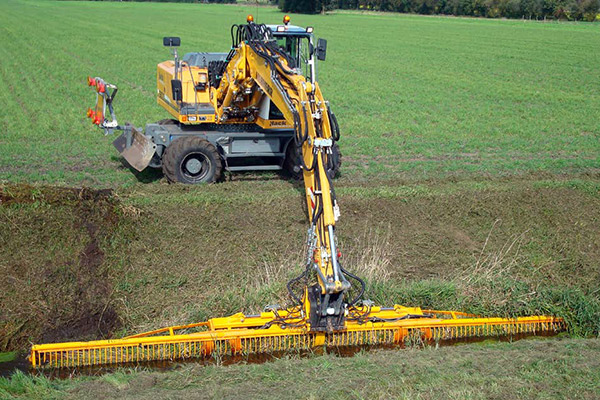

- Available in various working widths, max. up to 8.60 m.
Specifications
Photos
Video
Specifications
| MOWING BUCKET | ||||
| APPLICATION | TYPE/WIDTH IN CM | FRAME HEIGHT IN CM | OIL CONSUMPTION IN L/MIN | WEIGHT IN KG |
| Mini Excavators up to 5 Tonnes | MSFT 200.KB | 40 | approx. 22 | approx. 190 |
| MSFT 250.KB | 40 | approx. 22 | approx. 215 | |
| Mini Excavators 5 – 8 Tonnes | MSFT 300.KB | 53 | approx. 40 | approx. 328 |
| Tractors | MRLT 250.KB | 53 | approx. 40 | approx. 303 |
| MRLT 430.KB | 53 | approx. 40 | approx. 403 | |
| MRLT 550.KB | 53 | approx. 40 | approx. 483 | |
| Excavators 8 – 17 Tonnes | MRZT 250.KB | 57 | approx. 40 | approx. 331 |
| MRZT 300.KB | 57 | approx. 40 | approx. 360 | |
| MRZT 430.KB | 57 | approx. 40 | approx. 447 | |
| MRZT 550.KB | 57 | approx. 40 | approx. 538 | |
| Excavators more than 16 Tonnes | MRZZT 430.KB | 57 | approx. 40 | approx. |
| MRZZT 550.KB | 57 | approx. 40 | approx. | |
| Maximum allowable oil pressure: 170 bar | ||||
