Wingmaxx Tractor

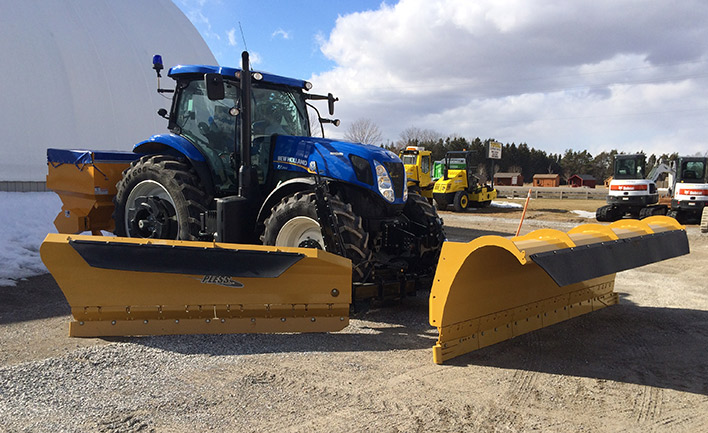

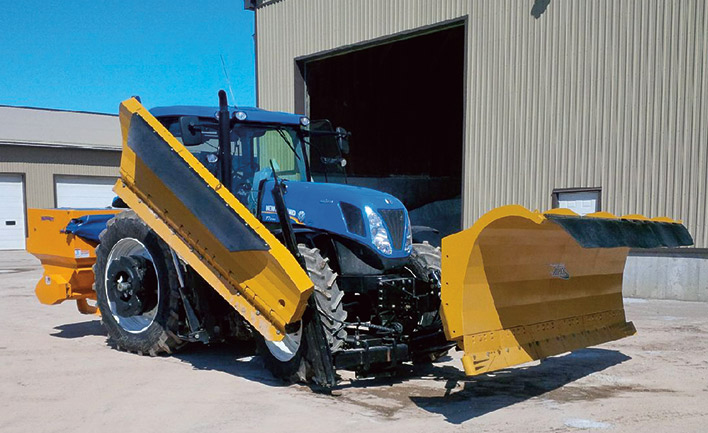

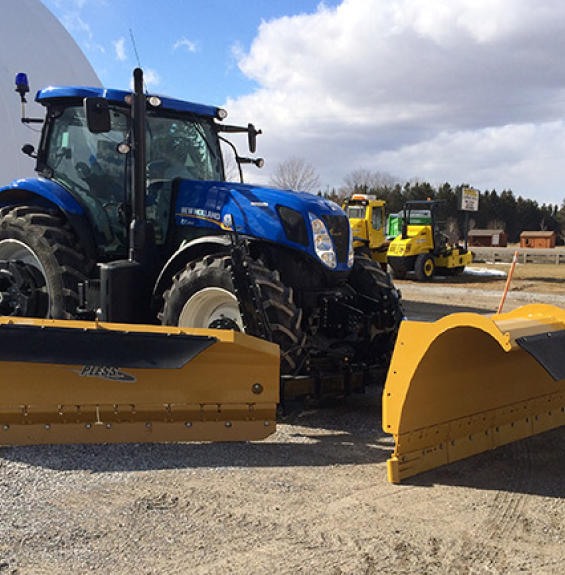

Metal Pless Wingmaxx Tractor
Metal Pless Wing Maxx 12′ x 42″ front blade, 9′ 10′ or 11′ X 36″ side wing.
Metal Pless Wingmaxx Features:
- Weight 3600 lbs.
- Sub frame to match tractor.
- Double action hydraulics “Pression Maxx” exclusive to Metal Pless.
- SOFT Drive mechanical steel trip edge “Heavy Duty” CHT 400 multi section ¾" x 6" x 24".
- Adjustable crossover relief valve for hydraulic protection of the power angle system.
- Front Blade 12' x 42".
- Adjustable angulation of the blade.
- Skid shoes mounted to the back of the cutting edge.
- Front blade deflector.
- Side wing deflector.
- Baked Powder Paint.
Specifications
Opctions
Photos
Video
Specifications
| Specifications | WING12-08 | WING12-09 | WING12-10 |
| FRONT BLADE | |||
| Width | 12′ | 12′ | 12′ |
| Height | 42″ | 42″ | 42″ |
| SIDE WING | |||
| Width | 8′ | 9′ | 10′ |
| Height | 36″ | 36″ | 36″ |
| Application | 150 HP and up | 175 HP and up | 175 HP and up |
| Approx. Weight | 3600 lbs | 3750 lbs | 3900 lbs |
| The width of the blade does not determine the real dimension of the product. | |||
Opctions
Available Metal Pless Wingmaxx Options:
- Carbide cutting edge.
- Non standard colour.
- Nitrogen accumulator package installed on the up and down cylinder.
- Electric valve and Joystick (electric over hydraulic 4 spools mounted on the blade with electric control and necessary cable for the installation in the cab).
