Wheel Loader Boom Mower

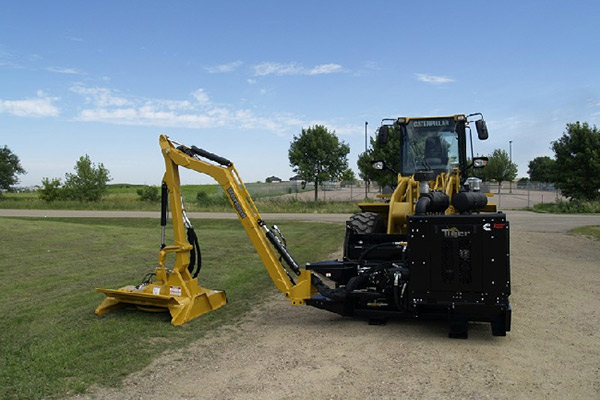

Tiger Wheel Loader Boom Mower
The Tiger Bengal series boom mower can be attached to a wide variety of wheel loaders. The wheel loader must have a minimum GWV of 25,000 lbs or a Lift Capacity of 10,000 lbs. Available with left side or right side operation, the boom unit features a totally independent auxilary engine capable of delivering all the cutting power, needed for your toughest jobs. This unit is built and designed to allow the operator to achieve maximum performance in all types of vegetation.
Features Include:
- A totally independent power plant capable of delivering 74 horsepower @ 1,800 RPM.
- Electronic joystick control system.
- Auxiliary power plant is Tier 4 Final, emissions compliant and sets a new standard for low noise and vibration.
- Can be easily attached to a wheel loader quick attach system.
Specifications
Options
Photos
Specifications
| MODEL | 19 | 24 | 25 |
| Reach Out | 18′ 9″ | 23′ 9″ | 24′ 9″ |
| Reach Out @ Max Down | 9′ 7″ | 12′ 1″ | 13′ 2″ |
| Reach Down | 9′ 3″ | 13′ 1″ | 13′ 7″ |
| Reach Up | 16′ 6″ | 21′ 2″ | 22′ 0″ |
| Reach Out @ Max Up | 8′ 8″ | 10′ 4″ | 11′ 5″ |
| Reach In | 6′ 7″ | 6′ 8″ | 7′ 1″ |
| Ground Level | 2′ 0″ | 2′ 0″ | 2′ 0″ |
| *All dimensions in feet w/50″ Rotary Head | |||
Options
Cutter Head Options:
- Rotary: 50″ or 60″
- Flail: 50″ or 60″

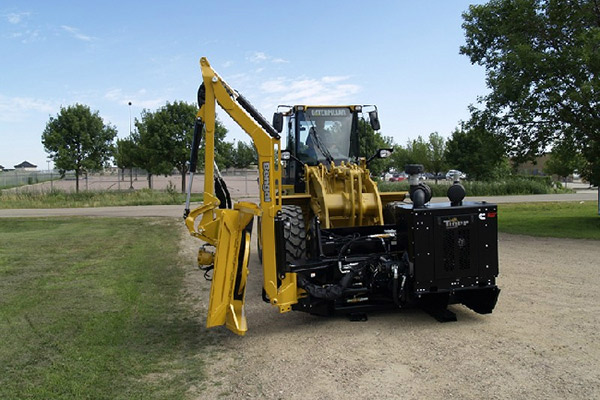

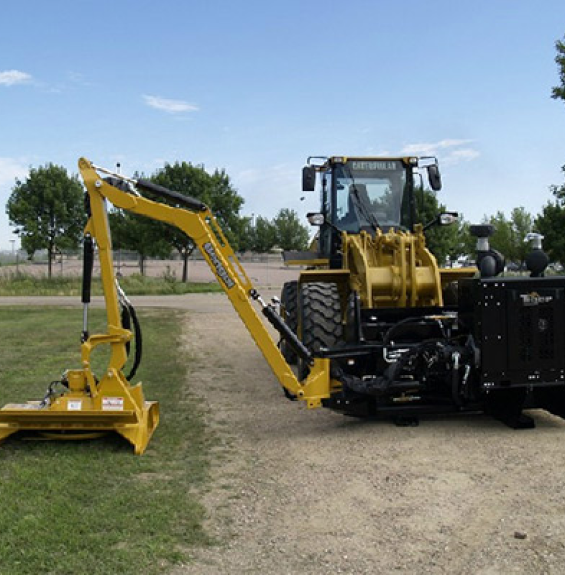

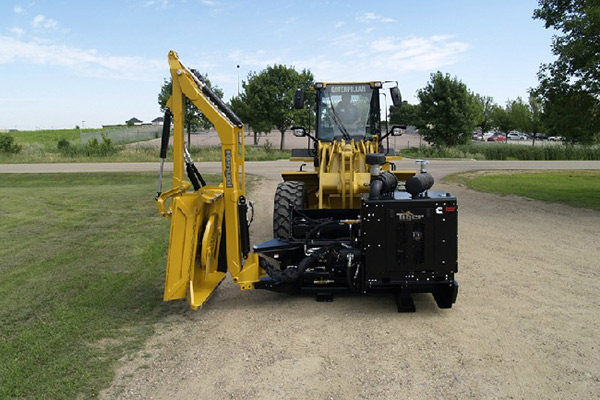

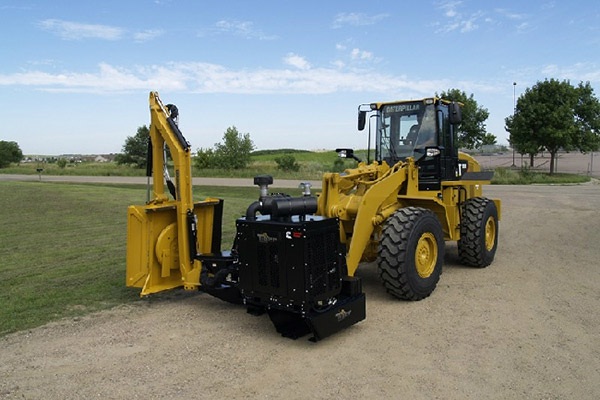

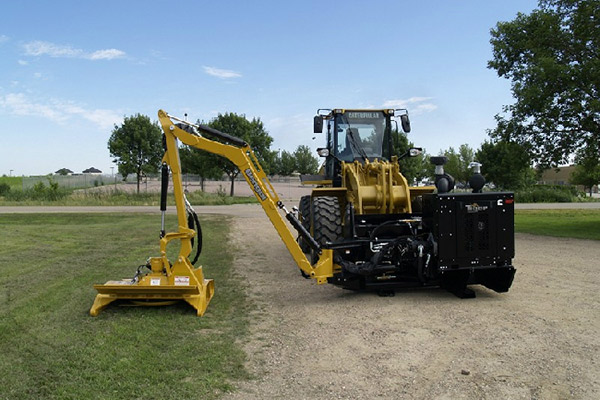

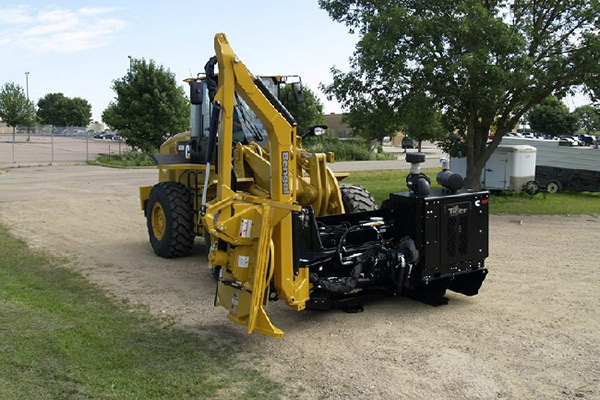

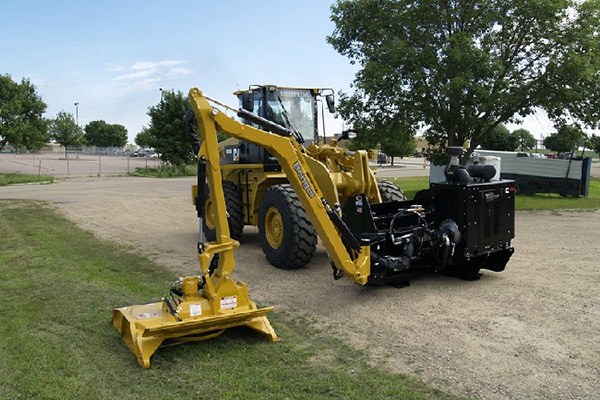

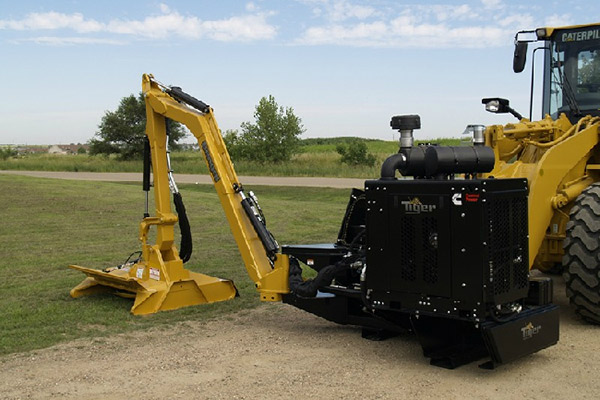

Photos
