Tiger Flail Mowers

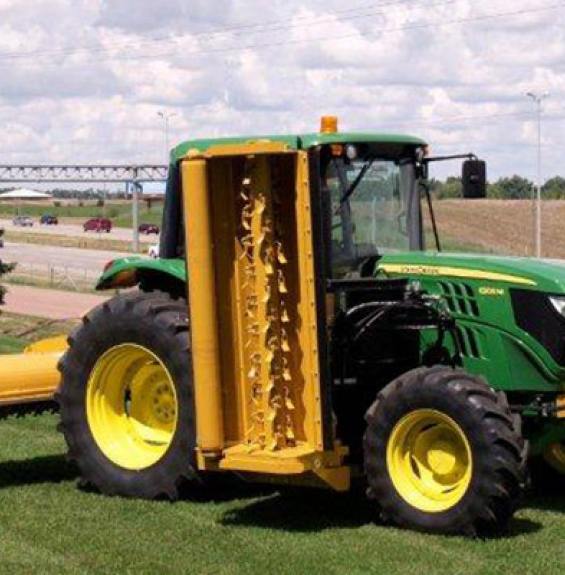

Side Mounted Flail Mowers
Extreme Duty
Tiger Extreme Duty Flail Mower Features:
- 6" Cutter Shaft
- 8" Ground Roller
- 80,000 PSI material high impact cutter deck design.
- Cutter Widths: 60", 75", 90"
- Cutter Height: -1/2: to +7"
- Knife Swing Circumference: 58 1/2"
- Knife Options: Standard (64 to 96), Smooth (32 to 48)
- 45 Horsepower Tractor Minimum
- Safety Discharge Flaps: Rubber on rear, optional steel on front.
Super Duty
Tiger Super Duty Flail Mower Features:
- Cutter Width: 63", 75"
- Cutter Height: 1" to 7"
- Knife Swing Circumference: 47 7/8"
- Knife Options: Standard (64 to 80), Smooth (32 to 40)
- Requirements: 40 Horsepower Tractor Minimum Requirement

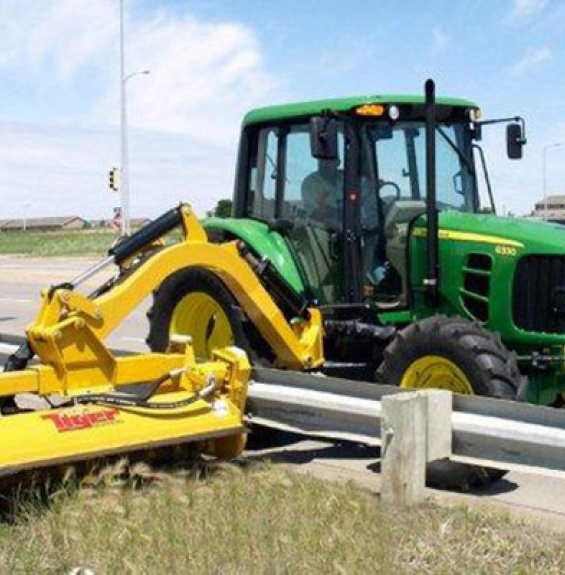

WildKat
Tiger WildKat Boom Mower Features:
- Boom Reach Out: Up to 16'
- Boom Reach Up: Up to 12.8'
- WILDKAT (Side Shift w/ ARCH) mower operates like a side mower with a swing system like a boom mower.
- Ability to shift the cutter head horizontally up to 29½ inches with the hydraulic control system.

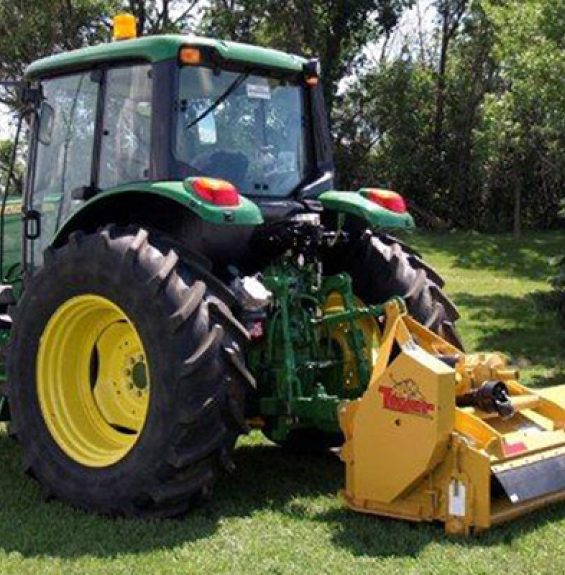

Rear Mounted Flail Mowers
Extreme Duty
Tiger Extreme Duty Rear Flail Mower Features:
- Cutter Width: 75", 90", 96", 102"
- Cutter Height: 1/2" to +7"
- Knife Swing Circumference: 58 1/2"
- Cutter Head: 6"
- Ground Roller: 8"
- Knife Options: Standard (80 to 112), Smooth (40 to 56)
- Minimum Horsepower Requirement: 45 Horsepower Tractor
Super Duty
Tiger Super Duty Rear Flail Mower Features:
- Cutter Width: 75" & 90"
- Cutter Height: 1/2" to 7"
- Knife Swing Circumference: 47 7/8"
- Knife Options: Standard (64 to 80), Smooth (32 to 40)
- 40 Horsepower Tractor (minimum requirement)
Triple Gang Flail Mowers
Triple Threat
Tiger Triple Flail Mower Features:
- Hydraulically Driven: Self contained hydraulic system, PTO powered
- Hydraulic System: 73.6 GPM (24.5 each section) @ 3,500 PSI
- Break Valve: Non-restrictive brake valve with 7-second maximum shut down.
- Transport: Mower is 102” (legal road width) when in upright and locked transport position.
- Tilt Switch: Adjustable shut off from 0° to 90°, side heads.
- Cutter Diameter: 1" grass or brush.
- Cutter Width: 8' 8 ½"
Extreme Duty
Tiger Triple Gang Flail Mower Features:
- Main Control: Electric solenoid operated non-restrictive, starter lockout with cable controls.
- Break Valve: Non-restrictive brake valve with 7-second maximum shut down.
- Transport: Move safely and easily as side unit stores vertical with travel locks.
- Cutter Width: Any side/102"/Any side
- Cutter Height: 1-1/2" to +6"
- Knife Swing Circumference: 58 1/2"
- Knife Options: Standard (240 to 424), Smooth (120 to 152)
Super Duty
Tiger Triple Gang Flail Mower Features:
- Cutter Width: 63"/90"/63", 75"/90"/75"
- Cutter Height: 1 1/2" to 7 1/2"
- Knife Swing Circumference: 47 7/8"
- Knife Options: Standard (224 to 256), Smooth (112 to 128)
- Tractor Requirement: 65 Horsepower Tractor Minimum

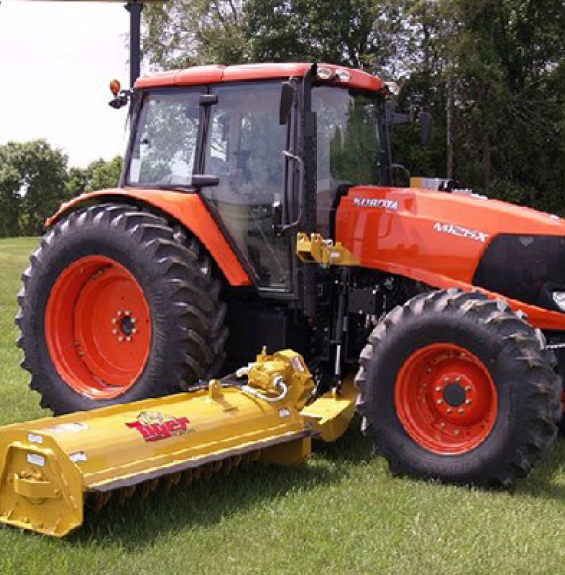

Twin Mounted Flail Mowers
Extreme Duty
Tiger Twin Mounted Flail Mower Features:
- 80,000 PSI material high impact cutter deck design.
- Cutter Shaft: Dynamically balanced 6” cutter shaft (Standard or Reverse rotation)
- Ground Roller: 8"
- Cutter Width: 60", 75", 90"/102"
- Cutter Height: 1/2 to 7"
- Knife Swing Circumference: 58 1/2"
- Knife Options: Standard (160 to 208), Smooth (80 to 104)
- Tractor Requirement: 65 Horsepower Tractor minimum
Super Duty
Tiger Twin Mounted Flail Mower Features:
- Cutter Shaft: Dynamically balanced 4 3/4" cutter shaft (Standard or Reverse rotation)
- Cutter Width: 63"/90" or , 75"/90"
- Cutter Height: 1/2 to 7"
- Knife Swing Circumference: 47 7/8"
- Knife Options: Standard (160 to 176), Smooth (80 to 88)
- Tractor Requirement: 60 Horsepower Tractor Minimum
