Tiger Rotary Mowers

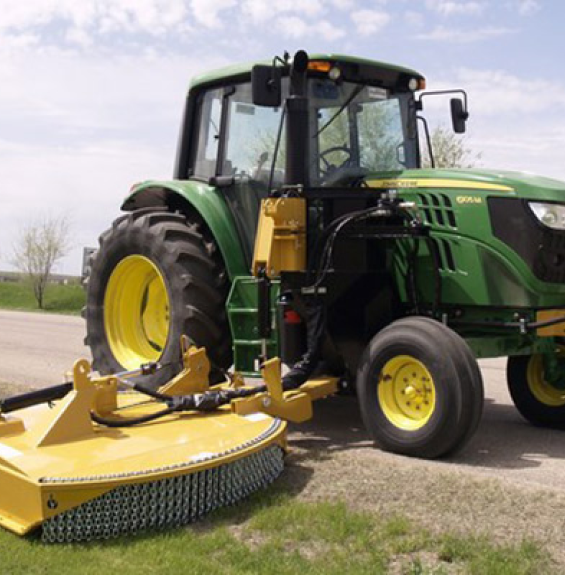

Side Mounted Rotary Mowers
TSR Series
Tiger TSR Rotary Mower Features:
- Spindle Drive: Direct Spline
- Domed Top Deck
- Direct Motor Drive
- Front and Rear Safety Guarding Standard
- Loader Available
- Cutting Width: 60" Actual Cut
- Cutting Height: 1 1/2" to 7 1/2"
TM Series
Tiger TM Rotary Mower Features:
- Spindle Drive: Direct flexible coupler.
- Forged spindle design.
60" Side Mounted Rotary:
- Cutting Width: 60" Actual Cut
- Cutting Height: 1 1/2" to 7 1/2"
70" Side Mounted Rotary:
- Cutting Width: 72" Actual Cut
- Cutting Height: 1 1/2" to 7 1/2"

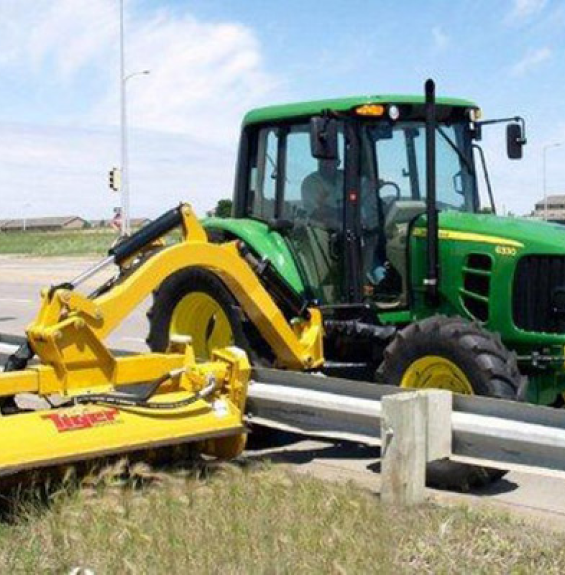

WildKat
Tiger WildKat Boom Mower Features:
- Boom Reach Out: Up to 16'
- Boom Reach Up: Up to 12.8'
- WILDKAT (Side Shift w/ ARCH) mower operates like a side mower with a swing system like a boom mower.
- Ability to shift the cutter head horizontally up to 29½ inches with the hydraulic control system.
Rear Mounted Rotary Mowers

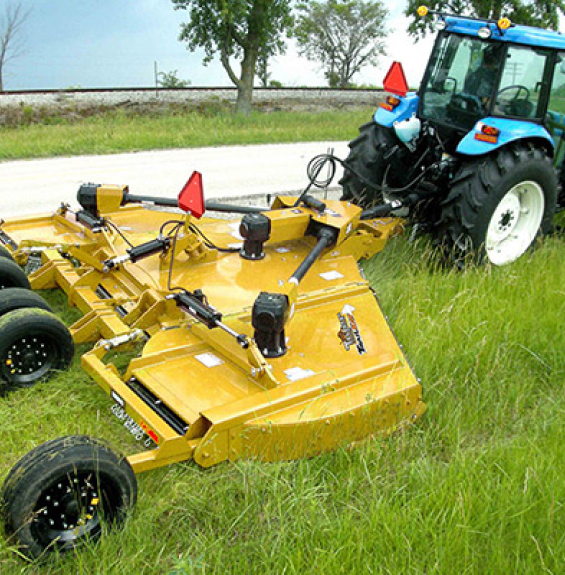

Flexwing TK 120 & 180
Tiger Flexwing TK 120 & 180 Features:
- TK series comes in 10' and 15' models.
- Deck protection rings come standard and protects the underside of the cutter deck. Clockwise rotation standard.
- Unique blade pan carrier and stump jumper, standard on TK-120 & TK-180.
- Double row safety chains along front and rear of mower.
- Gear boxes have cast lower seal protection and monolithic housings.
- Designed for tractors with 540 PTO. (Optional 1000 PTO available).

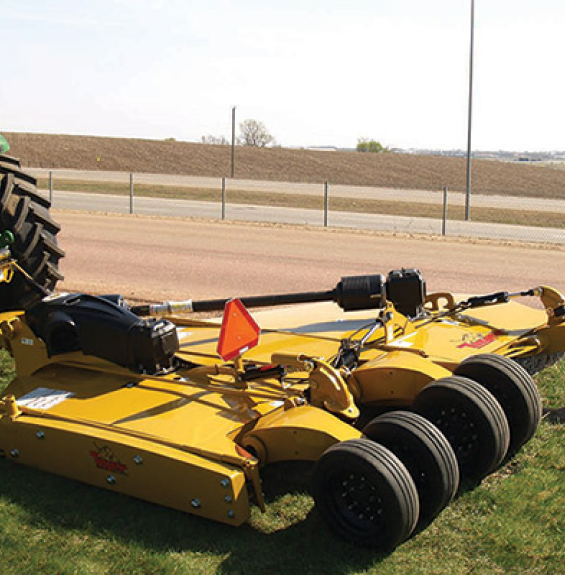

Flexwing TFR-HD 120 & 180
Tiger Flexwing TFR-HD 120 & 180 Features:
- HD design offers center section tandem axles which provides a smooth operation over rough surfaces and slopes.
- Deck protection rings come standard and protects the underside of the cutter deck. Clockwise rotation standard.
- Front double row safety chains along front and back of mower along with Hitch jack come standard.
- Heavy duty slip clutch made with nitride steel surface to reduce sticking in damp conditions.
- Designed for tractors with 540 PTO. (Optional 1000 PTO available).

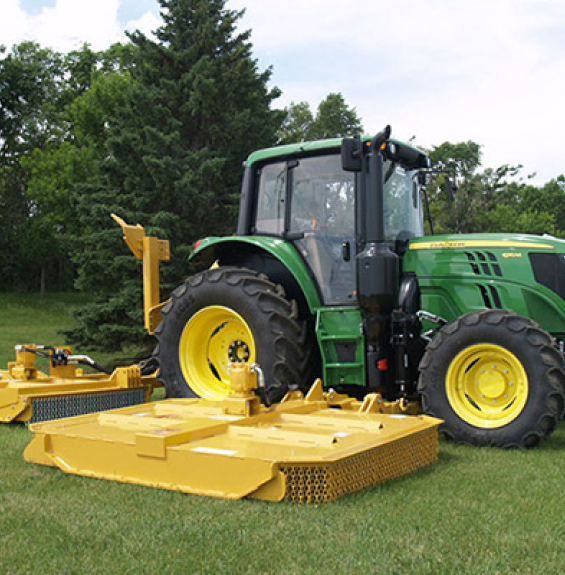

Twin Mounted Rotary Mowers
TM Series
Tiger TM Series Features:
- Domed Top Deck
- Direct Motor Drive
- Front and Rear Safety Guarding Standard
- Multiple Offset Hitch Options
- Cutting Width: 60", 72" actual cut (side), 60" actual cut (rear)
- Cutting Height: 1 1/2" to 7 1/2" (side and rear)
- Spindle Drive: Direct Flexible Coupler (side and rear)
TSR Series
Tiger TSR Series Features:
- Domed Top Deck
- Direct Motor Drive
- Front and Rear Safety Guarding Standard
- Multiple Offset Hitch Options
- Cutting Width: 60" (side and rear)
- Cutting Height: 1 1/2" to 7 1/2" (side and rear)
- Spindle Drive: Direct Spline (side and rear)
