Olympian Leaf Chassis Mount
Olympian Leaf Pro Plus Chassis Mount
The Olympian Leaf Pro Plus Chassis Mount unit is mounted on a Peterbilt 220 chassis equipped with factory installed right hand drive. A total vehicle length of just 24′ provides an excellent turning radius to navigate narrow streets and cul-de-sacs. The cab over design of the Peterbilt 220 offers premium visibilty, along with the ability to carry out fluid level inspections without having to tip the cab.

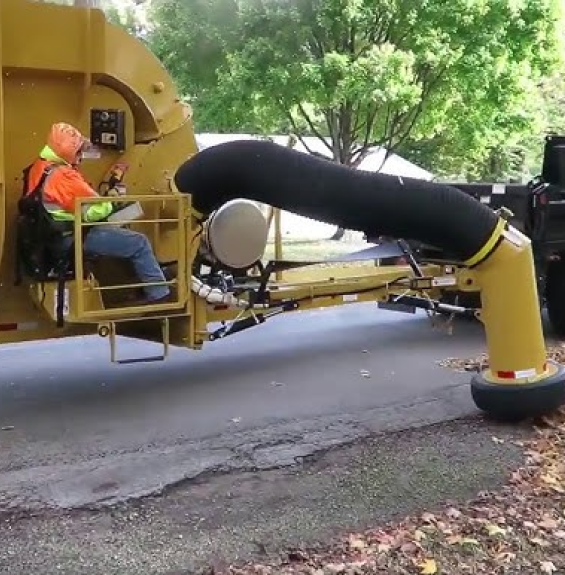

Features include in cab controls to operate a 180 degree swing arm boom, hydraulic tailgate latch and dumping controls.
With a hose reach of 11 foot and ditch reach of 50 inches, the Olympian Chassis Mount Pro + can pick up from the deepest of ditches and culverts!
If you’re running a leaf program year-round then the Olympian Leaf Pro Plus Chassis Mount is a great option. This dedicated vehicle will be ready to go when you are, and is guaranteed to make your leaf collection quick and easy.
Olympian Leaf Chassis Mount Features:
- Mounted on a Perterbilt 220 Chassis equipped with a factory installed right hand drive.
- Total vehicle length of just 24'.
- In cab controls to operate 180 degree swing arm boom, hydraulic tailgate latch and dumping controls.
- Hose reach of 11ft.
- Ditch reach of 50 inches.
| TECHNICAL DATA | OLYMPIAN LEAF PRO PLUS CHASSIS MOUNT |
| Empty GVRW Weight | 35,000 lbs |
| Standard Collection Capacity | 23 yrds |
| High Collection Capacity | 30 yrds |
| Fuel Tank, Aluminum | 40 U.S. Gallons |
| Dump Angle | 54 Degrees |
| Collection Nozzles | Right Side |
| Battery | 12 Volt, 1190 Amp; 950 CCA |
| Fan | 30″ Diameter |
Olympian Chassis Mount Pro + Options:
- 99 HP John Deere.
- 74 H.P. Kubota engine option.
- Heavy duty industrial rubber hose.
- Directional lightbar.
- Elbow liner.
- Clean-out door.
- Down draft exhaust.
- Dust suppression system.
- Rear hitch.
