Spartan Leaf Pro Plus
Spartan Leaf Pro Plus Features:
- Safety interlock system on intake nozzle.
- 50 gallon fuel tank.
- 14,000 lb 3" adjustable pintle eye with safety chain.
- 74hp, tier 4, liquid-cooled diesel powered engine.
- Manual jack, fire extinguisher, and wheel chocks.
- Emergency stop switch.
- 15-30 yd collection body with full tailgate.
- DOT compliant lightning, markings and yellow flashers.
- 12 volt electrical system.
- 12,000 lb axles with electric trailer brakes.
- Heavy duty direct drive fan.
- 16" pickup hose with 3-function hydraulically controlled pickup arm (optional).
Specifications
Options
Photos
Specifications
| TECHNICAL DATA | SPARTAN LEAF PRO PLUS |
| Fuel Tank | 50 U.S. Gallons |
| Engine | 74 hp Tier 4, Liquid-cooled Diesel Powered Engine |
| Jack | Manual – 8,000 lbs |
| Battery | 12 Volt, 1190 Amp; 950 CCA |
| Axles | Tandem 12,000 lb Axles with Dual Wheels |
| Tires | ST235/80R16, Load Range E |
| Fan | 27″ Diameter |
| Hoist | Single Cylinder Scissor Hoist |
| Capacity & Empty Weight | |
| 15 cu. yard | 11,000 lbs |
| 20 cu. yard | 11,500 lbs |
| 25 cu. yard | 13,000 lbs |
| 30 cu. yard | 13,500 lbs |
Options
Spartan Leaf Pro Plus Options:
- 120 h.p. Tier 4, liquid-cooled diesel-powered engine.
- 95 or 190 gallon dust control system with one pump & three nozzles.
- Dual hydraulic jack.
- Wireless control box.
- Directional light bar / L.E.D. flashers.
- Direct wired control into cab of truck.
- Closed-circuit camera system.

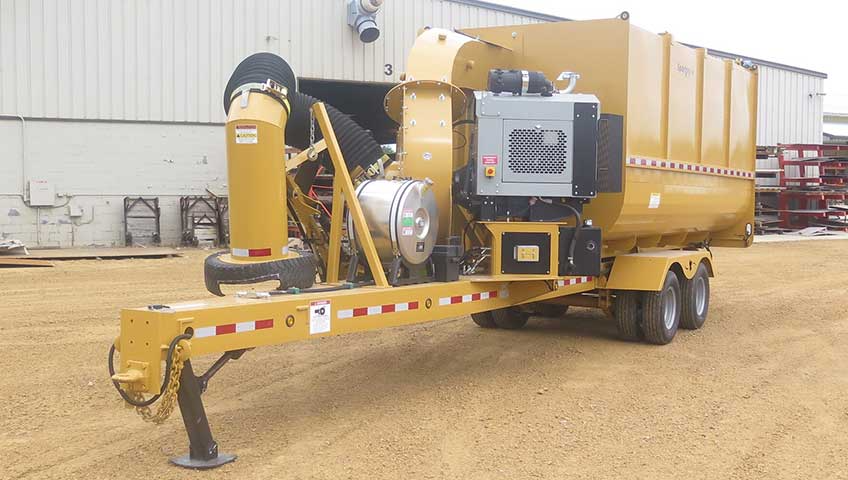

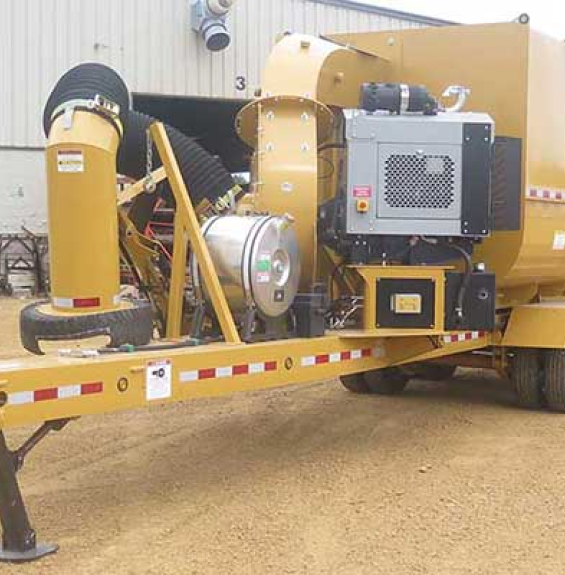

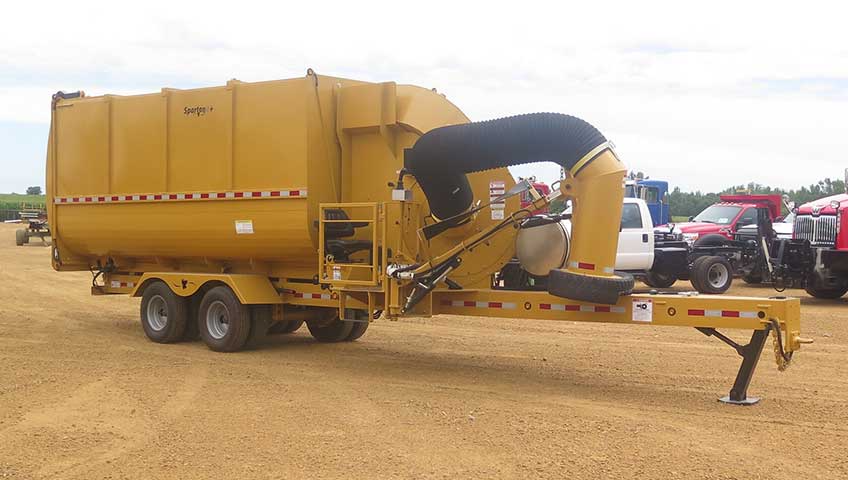

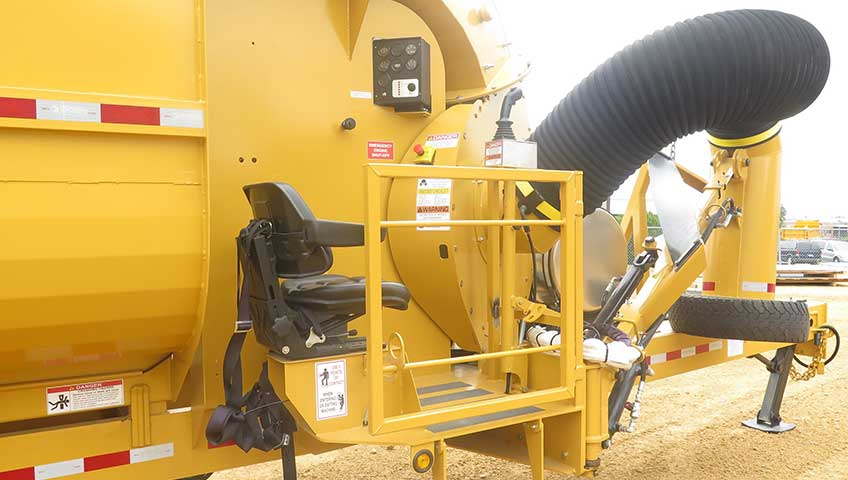

Photos
