Spartan Leaf Pro Plus Chassis Mount
Spartan Leaf Chassis Mount Pro Plus

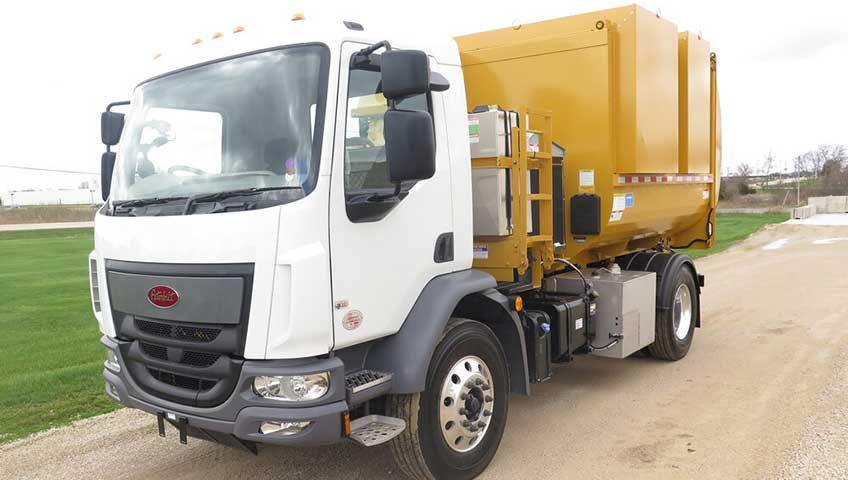

This particular Spartan Chassis Mount + unit is mounted on a Perterbilt 220 Chassis equipped with a factory installed right hand drive. With a total vehicle length of just 24’ and no pull behind trailer, makes for a much tighter turning radius to navigate narrow streets and cul-de-sacs.

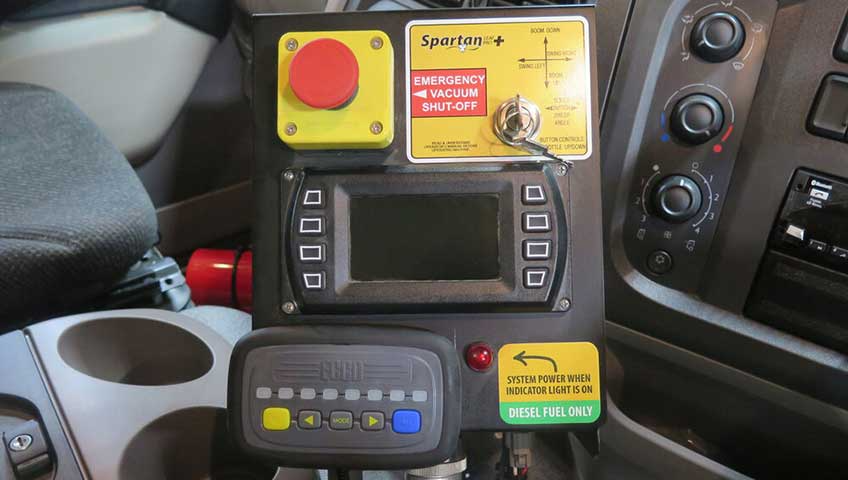

Features include in cab controls to operate 180 degree swing arm boom, hydraulic tailgate latch and dumping controls.

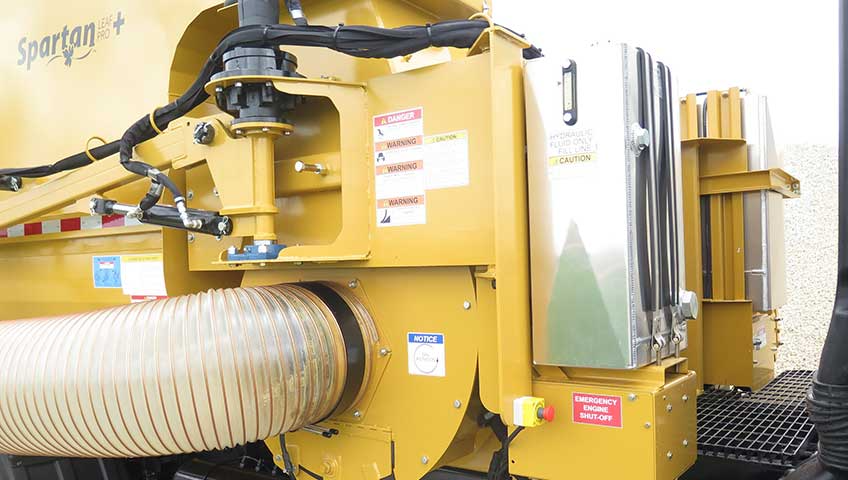

With a hose reach of 11ft and ditch reach of 50 inches, the Spartan Chassis Mount Pro + can pick up from the deepest of ditches and culverts!
Spartan Leaf Chassis Mount Features:
- Mounted on a Perterbilt 220 Chassis equipped with a factory installed right hand drive.
- Total vehicle length of just 24’.
- In cab controls to operate 180 degree swing arm boom, hydraulic tailgate latch and dumping controls.
- Hose reach of 11ft.
- Ditch reach of 50 inches.
Specifications
Options
Photos
Specifications
| TECHNICAL DATA | SPARTAN LEAF CHASSIS MOUNT |
| Empty GVRW Weight | 35,000 lbs |
| Collection Capacity | 20 yrds |
| Fuel Tank, Aluminum | 40 U.S. Gallons |
| Dump Angle | 54 Degrees |
| Collection Nozzles | Right Side |
| Battery | 12 Volt, 1190 Amp; 950 CCA |
| Fan | 30″ Diameter |
Options
Spartan Leaf Pro Plus Chassis Mount Options:
- 99 HP John Deere Option.
- 74 H.P. Kubota Engine Option.
- Heavy duty industrial rubber hose.
- Directional light bar.
- Elbow liner.
- Clean-out door.
- Down draft exhaust.
- Dust supression system.
- Rear hitch.

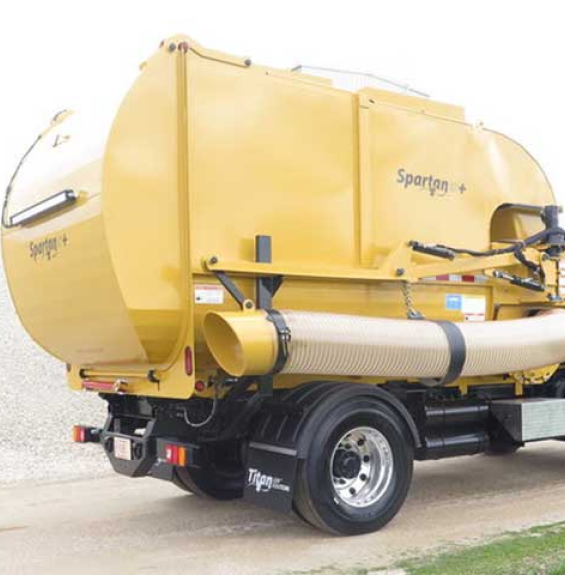

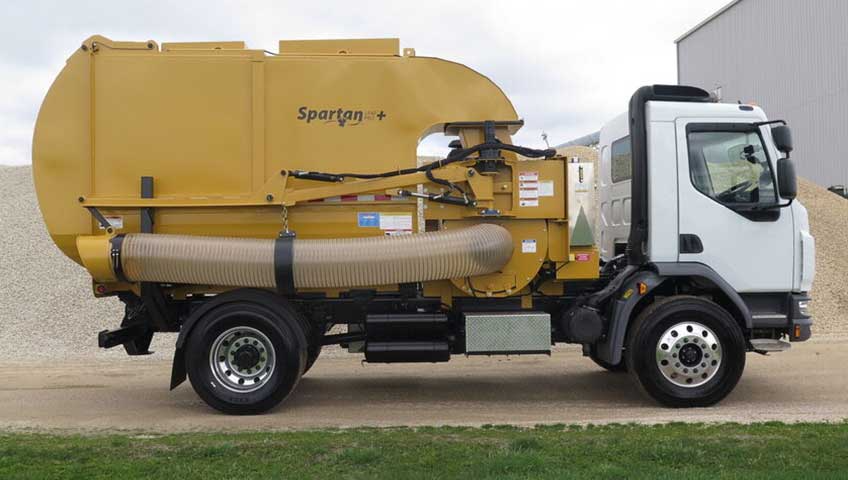

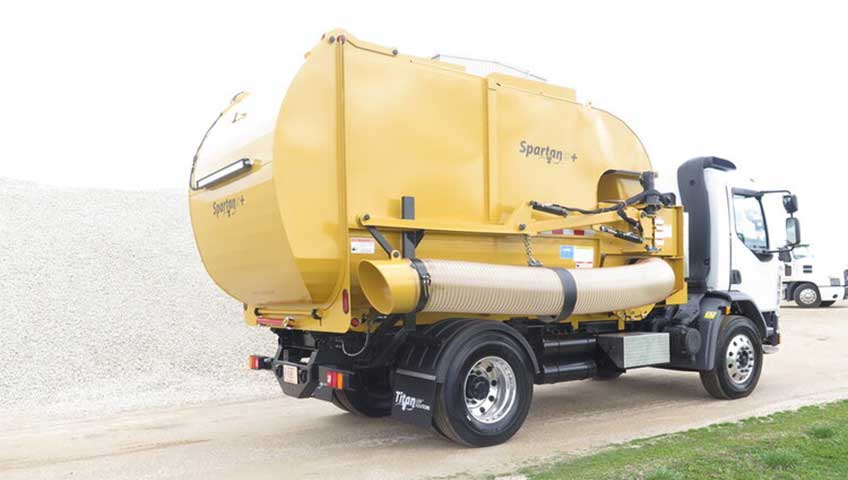

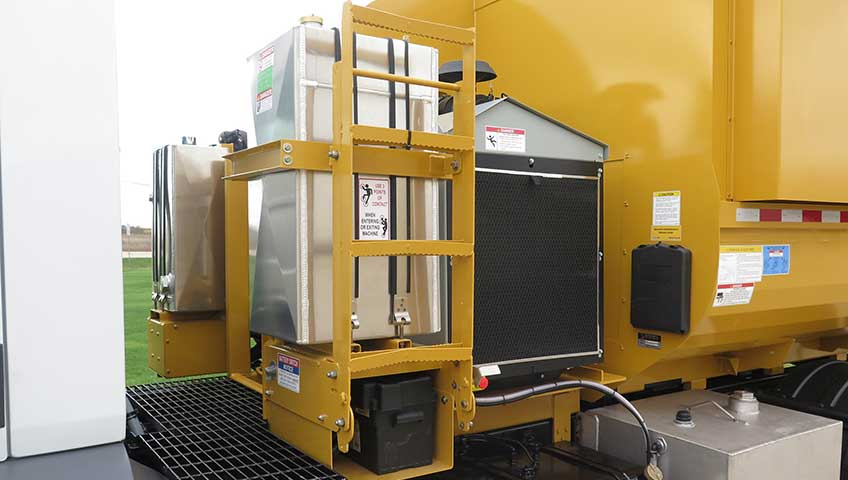

Photos
