Truxor T20 Amphibious Machine

Amphibious Machines

Truxor T20 Amphibious Machine

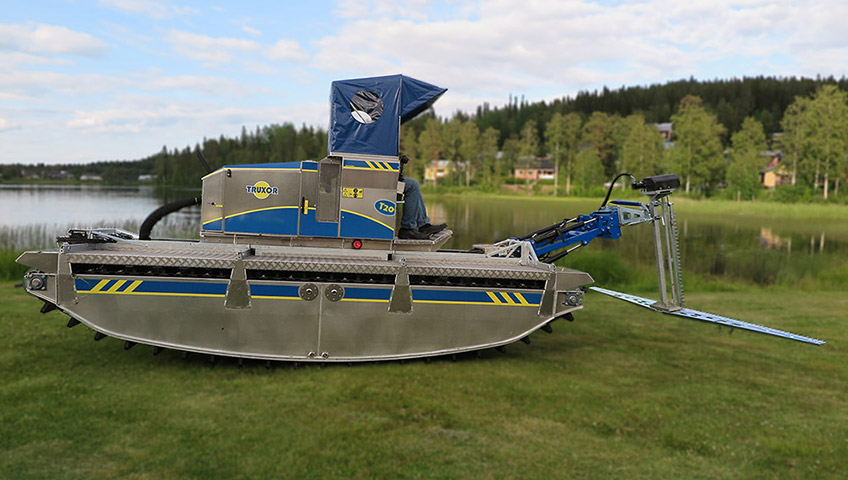

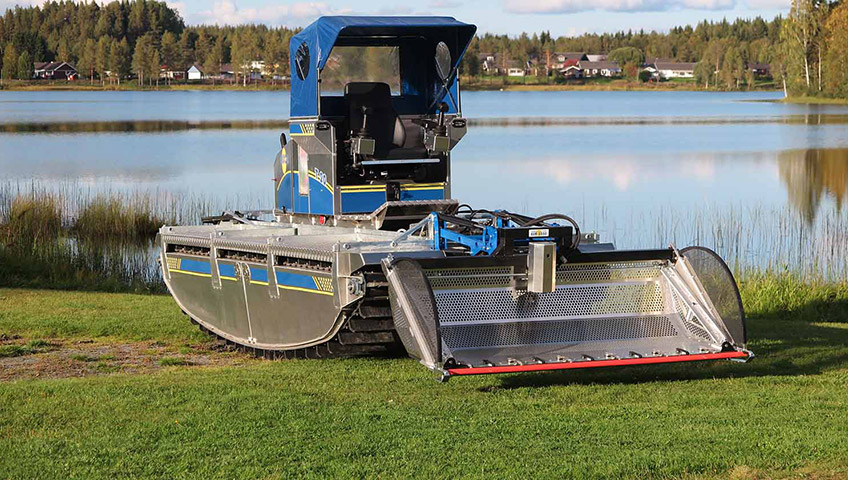

Truxor T20 is built with a 24.8 hp engine. Truxor T20 fulfils the latest environmental requirements. The model is ideal for weed cutting and collection of water plants and is equipped with one hydraulic outlet for running the cutter tool. The capacity of the Truxor is well suited for weed harvesting. For tools that require more power, we recommend machines from the T-series with higher capacity.

Production Information

Truxor T20 Features:

  • Ergonomic operator's seat.
  • Load-sensitive hydraulic system (LS).
  • Filter system of the air intake to the cooling unit.
  • Equipped with work lighting.
  • Hydraulic tool operation.
  • Electrically heated operator's seat.
  • Adjustable hydraulic outlet flow.
Truxor T20 Features
MODELTRUXOR T20
MotorDIESEL Kubota D1305 E4B-EU EPA/CARB Tier 4 + EU Stage V, 3 cylinders, 18.5 kW/24.8 hp at 2,600rpm. Max torque 80.0 Nm at 1700 rpm. FUEL TANK: 35 l
Cooling SystemCombined engine/hydraulic system. The air intake of the radiator is equipped with a filter (prevents dirt in the radiator cells). Thermostat controls the hydraulic oil temperature, improving machine performance.
Driver’s SeatErgonomically adjustable driver’s seat with thermostatically controlled electric heated seat. Folding cab. Adjustable controls.
Electrical System12V/40 Amp, 45 ah battery. Automatic stop function if the engine overheats or the oil pressure is too low. Warning system for driving at maximum slope. 4 LED work lights.
DashboardDigital screen for speed, engine temperature, oil pressure engine, timer, fuel gauge, hydraulic oil temperature, hydraulic pressure, hydraulic flow, emergency operation, clock etc.
Hydraulic SystemHydraulic pump with variable displacement (LS). Hydraulic pump: Maximum system flow 45
cm³/r 120 l/min. Hydraulic power: 14.1 hp. Hydraulic tank: 19 l, system 33 l. Cyclone technology forced ventilation.
Environmentally friendly system with automatic stop of the engine if the oil level drops by more than 8 litres. (Minimises oil spills). Hydraulic-operated valve: 6 functions. Control system: CAN bus control of all valves.
Left JoystickDriving forward/backward/right/left. Speed is controlled by a joystick and with precision driving controls. Control for hydraulic outlet 1.
Right JoystickLifting, tilting, weight distribution.
Driving Speed0-100 m/min.
Front LiftLifting power 350 kg, X4 bracket for fast change of tools. Semi-automatic locking of tools.
MaterialDrive band: (paddle track) of rubber. Paddles and slide rails in strong plastic. Pontoons manufactured of saltwater-resistant aluminium. Heat galvanised steel structure.
DimensionsTotal length max. 5030 mm, min 4700 mm, Total width 2080 mm. Total height max 2600, min 2020 mm.
Set weight T20: 1350 kg.
Weight1350 kg
OptionsHydraulic oil environmentally friendly. Panolin replaces standard hydraulic oil.
T20 33 litre Item no: 94-T20E
