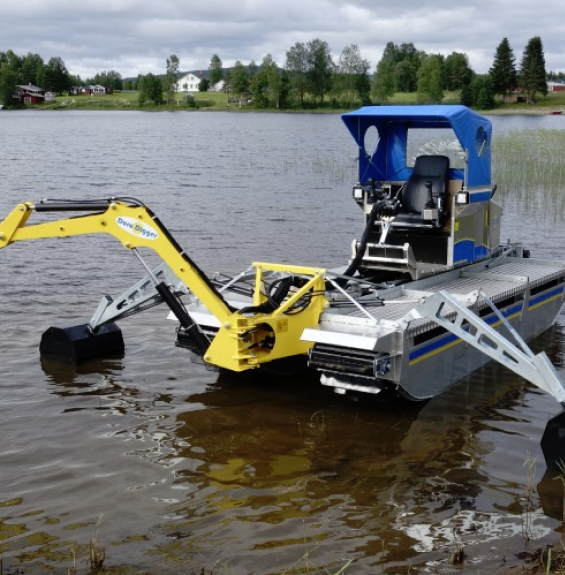

Truxor Doro Digger

The Doro Digger is an excavation aggregate and combined mounting system for other tools. The digging arm is made of high-tensile steel and has built-in brackets for attaching dredge hoses and additional hydraulic tubing.

The Doro Digger is designed to maximise the lifting height, digging depth and reach. The digging aggregate has a swing system equipped with hydraulic cylinders that provide solid flywheel capacity. Doro Digger is equipped with semi-automatic quick bracket DM X3 for fast tool change.

Examples of Doro digger accessories are excavation buckets, dredge pumps, flail mulchers and cutting knives.

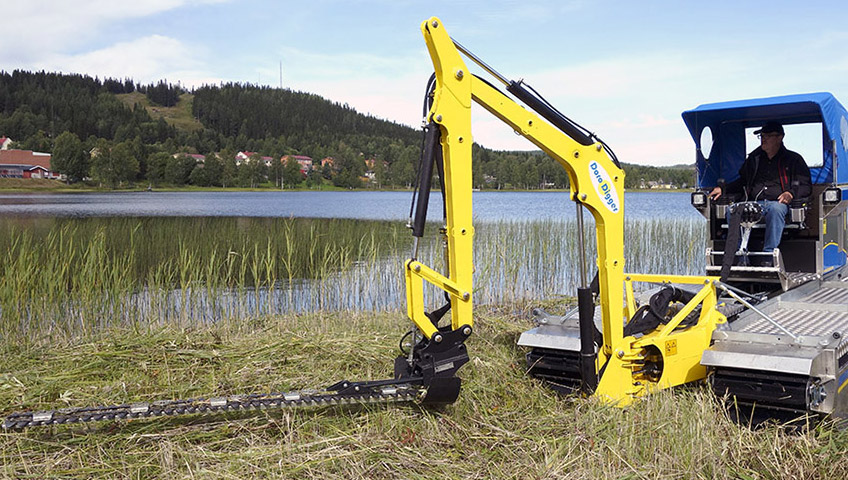

Doro Cutter ESM 60

The Doro Cutter ESM 60 effectively cuts vegetation and bushes on shorelines and in wetlands. The ESM 60 can cut most types of plants and bushes up to 25 mm in diameter. The knife beam has knives on both sides and the plants are cut from both directions by the swinging motion of the digging arm. The large working width reduces driving distances in wetlands and minimizes soil surface damage. The ESM 60 is not recommended for use under the water surface.

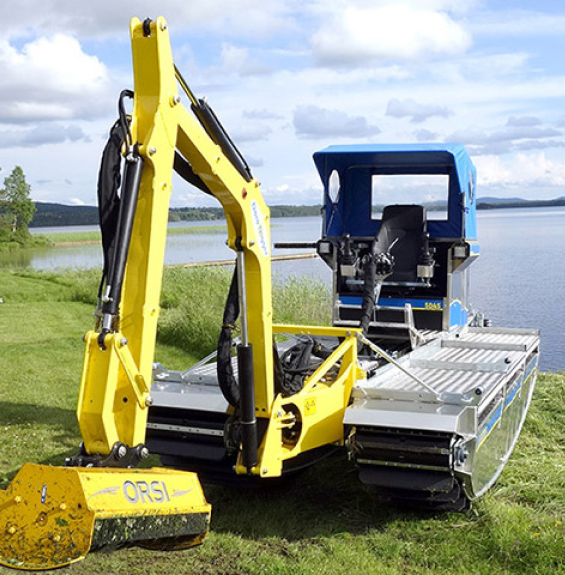

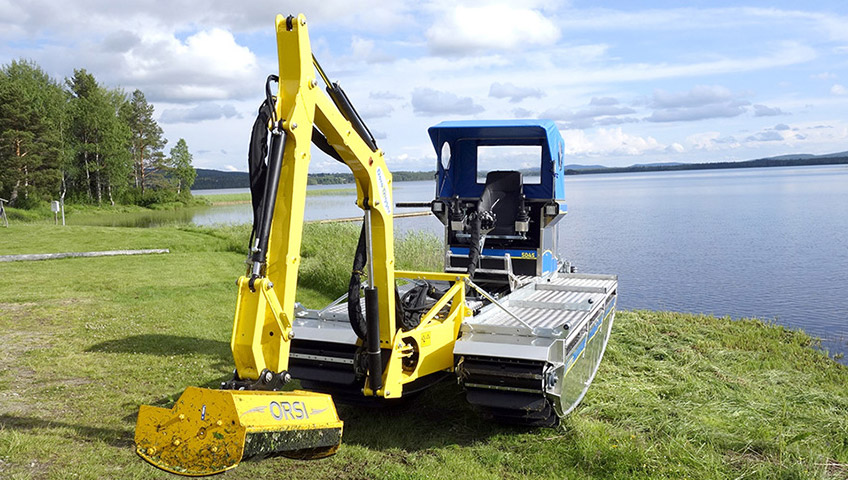

Orsi Flail Mulcher

Orsi Flail Mulcher is a perfect tool that chops vegetation without the need to collect it afterwards. It is recommended for plants and bushes with a diameter of up to 25 mm.

Doro Miller

The Doro Miller when mounted on a Doro digger gives a large radius of action. The material can be easily processed and moved using the miller in order to fill uneven ground. Recommended only in wetlands with organic material. The miller heads are not included.

Truxor Doro Digger Features:

Arm is made of high-tensile steel.
Built-in brackets for attaching dredge hoses and additional hydraulic tubing.
Swing system equipped with hydraulic cylinders that provide solid flywheel capacity.
Equipped with semi-automatic quick bracket DM X3 for fast tool change.

Specifications

Accessories

Photos

Specifications

TRUXOR DORO DIGGER
The maximum depth and reach have been measured from the water surface.
Maximum Excavation Depth	3 m
Maximum Lifting Height	2.9 m
Maximum Reach (radius)	4 m
Maximum Reach (diameter)	8 m
Maximum Turning Radius	180°
Maximum depth for outrigger pontoons, stabilisation against the bottom (excavation)	1 m
If the water depth is less than 0.1 m, the outriggers can can be removed. The machine will then be lighter and more flexible for use in wetlands, for example. Buoyancy of Outrigger Pontoons 2 x 130 kg
Valve package equipped with two-lever system. Semi-automatic quick bracket DM X3.Doro digger cannot be used at the same time as propeller (91-104200). Complete for mounting on T-series machines. Excluding prop feet and buckets.
Doro Digger Item no.	77-25700
Excavation Aggregate	232 kg
Prop feet front incl. pontoons. 2 x 58 kg	77-25900
Prop foot rear 1 pcs 47 kg.	77-26000

Accessories

TRUXOR DIGGER BUCKETS
Designed for work carried out in water. Made of high-tensile steel. The teeth of the buckets have cutting properties that facilitate excavation of root deposits which are common in water. When Doro Digger is used for excavating, the buckets (1-3) can be used if the water depth is less than 40 cm. If the water depth exceeds 40 cm, the gripbucket or grip rake (4-5) is used. The prop feet can be overloaded if the buckets are used in deep water.
			Volume	Weight	Item No.
Bucket			60 l	37 kg	77-16800
Bucket			30 l	24kg	77-16900
Excavator Rake			70 l	27 kg	77 -17000
Grip Bucket			65 l	22 kg	78-34700
Grip Rake			Working Width: 490 mm	14 kg	78-34800
ORSI FLAIL MULCHER
			Working Width	Weight	Item No.
			0.8 m	88 kg	77-19000
Capacity: Thicket of up to 25 mm.
Hydraulic operation.
Delivered with a hammer knife.
			Hammer Knife for 77-19000 Item no: 77-023077 (20 pieces needed)
TRUXOR DORO CUTTER ESM 60
Max Reach when mounted on a Doro Digger (diameter)		Working Width of Knife		Weight	Item no.
11.5 m		1.9 m		88 kg	80-10000
HYDRAULIC TUBING
Including brackets, for operation of Doro pump V3, Orsi flail mulcher and Doro cutter ESM 60.
Item no.	77-20000
DORO MILLER
The Doro miller when mounted on a Doro digger gives a large radius of action. The material can be easily processed and moved using the miller in order to fill uneven ground. Recommended only in wetlands with organic material. The miller heads are not included.
	Weight	Engine Speed		Max. Torque	Item No.
	31 kg	0-150 RPM		max 700 Nm	72-12100
	KNIFE MILLS SET
		Weight	Working Width		Item No.
		35 kg	0.8 m		72-13600
MILLER HEADS SET
		Weight	Working Width		Item No.
		32 kg	0.8 m		72-12200
		Adapter for mounting the Doro miller on the lifting arm Including hydraulic tubing.
		Weight			Item No.
		5 kg			72-14000
