Buzzard

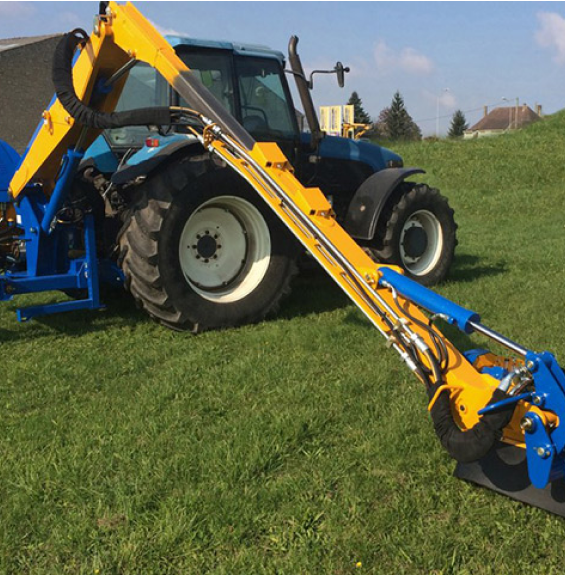

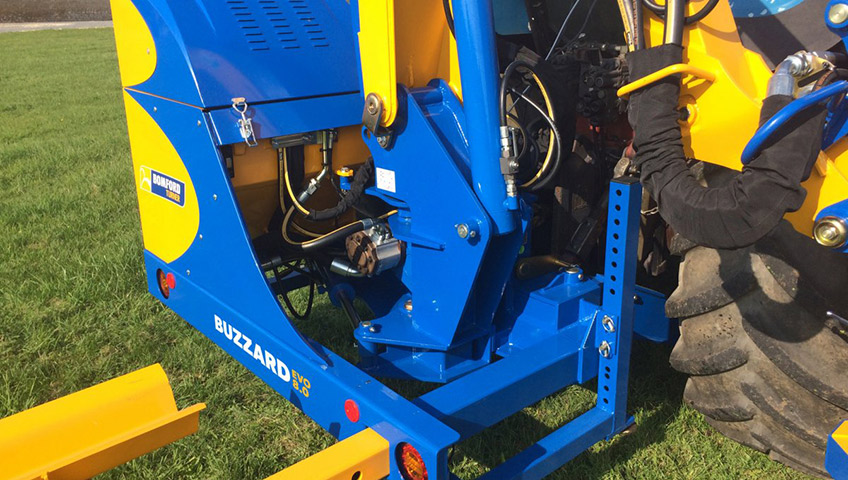

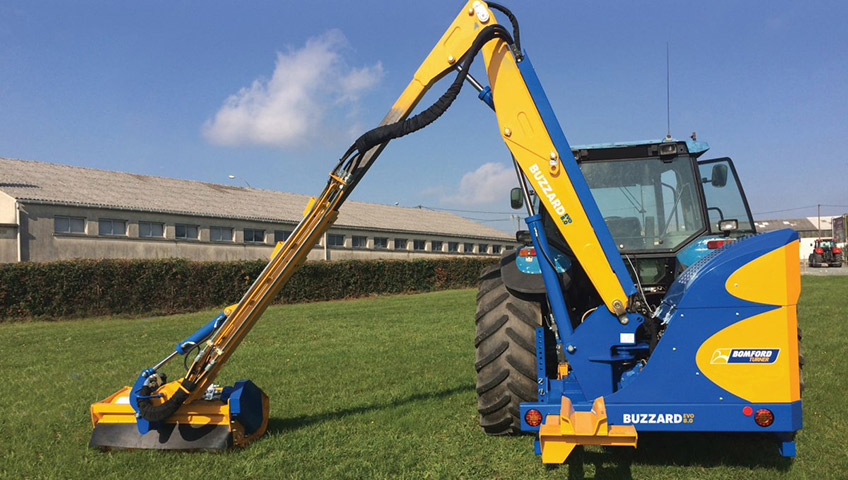

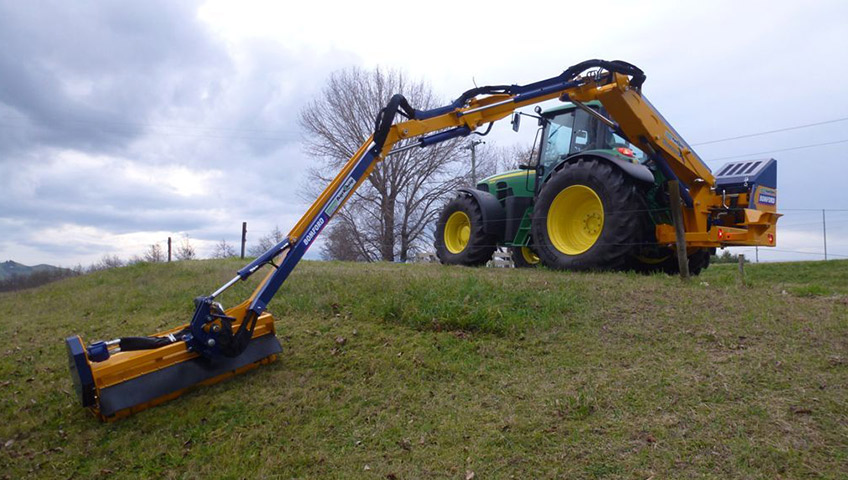

Bomford Buzzard Evo Arm Mower
The Bomford Buzzard Evo range has been specifically designed for the large scale contractor and agency. With a large choice in specification, and fully proportional controls.
Features Include:
- 7.25m or 8m reach
- 1.2m or 1.5m cutting heads
- Oil cooled as standard
- ICS fully proportional controls
Bomford Buzzard Evo Mower – Working Reach Dimensions
Head Used for Calculations: 1.2m Pro Cut
7.25m T (23'9")
8.0m T (26'3")
A
7.3m (23'11")
7.94m (26'1")
B
7.64m (25'1")
8.07m (26'6")
C
5.25m (17'7")
5.91m (19'5")
D
6.25m (20'6")
6.86m (22'6")
E
8.71m (28'7")
8.87m (29'1")
X
1.35m (4'7")
1.35m (4'7")
Y
1.00m (3'3")
1.00m (3'3")
Specifications
Attachments
Controls
Photos
Video
Specifications
| MODELS | 7.25m T (23’9″) | 8.0m T (26’3″) | |
| Tractor Requirements | |||
| Minimum Horse Power | 120hp | 140hp | |
| Minimum Weight | 4900kg / 10803lbs | 5200kg / 11464lbs | |
| Overall Machine Parameters | |||
| Machine Weight with Oil and Head | 2290kg / 5049lbs | 12490kg / 5490lbs | |
| Capacity of Oil Tank | 250 Litres / 66USG | 250 Litres / 66USG | |
| Weight of Machine with Oil but Without Head | 2000kg / 4009lbs | 2200kg / 4850lbs | |
| Hydraulic System | |||
| System Capability | 74hp | 74hp | |
| Pump Flow Rate | 125 Litres / 33USG | 125 Litres / 33USG | |
| Pump Type (Gear / Piston / Helical) | Gear | Gear | |
| Pump Arrangement (Twin / Inline) | Twin | Twin | |
| Independent Hydraulics | Standard | Standard | |
| Oil Cooler | Standard | Standard | |
| Arm Features and Main Frame | |||
| Forward Arm | Not Available | Not Available | |
| Telescopic Arm | Standard | Standard | |
| Telescopic Arm Stroke | 1300mm | 1450mm | |
| Power Slew | Standard | Standard | |
| Power Slew Angle | 94° | 94° | |
| Gravity Breakout Protection | Not Available | Not Available | |
| Hydraulic Breakout Protection | Standard | Standard | |
| Arm Float – Manual | Not Available | Not Available | |
| Arm Float – Electronic | Standard | Standard | |
| Head Float – Manual | Not Available | Not Available | |
| Head Float – Electronic | Standard | Standard | |
| Left Hand Cutting | Optional | Optional | |
| Right Hand Cutting | Optional | Optional | |
| Left and Right Cutting | Standard | Standard | |
Attachments
| MODELS | 7.25m T (23’9″) | 8.0m T (26’3″) | |
| Base Mounting Options | |||
| Front Mount | Not Available | Not Available | |
| Mid Mount | Not Available | Not Available | |
| Rear Mount | Standard | Standard | |
| Three Point Linkage (CAT II) | Not Available | Not Available | |
| Axle Bracket | Standard | Standard | |
| Arm Attachments Available | |||
| Variable Track Bracket (VTB) | Optional | Optional | |
| Sheartrim Cutter Bar | Optional | Optional | |
| Pro-Saw | Optional | Optional | |
| Ditch Cleaner | Optional | Optional | |
| Rotary Head | Optional | Optional | |
| Cutting Heads | |||
| 1.2m Pro Cut with 115mm Roller | Optional | Optional | |
| 1.2m Pro Cut with 150mm Roller | Optional | Optional | |
| 1.5m Pro Cut with 115mm Roller | Optional | Optional | |
| 1.5m Pro Cut with 150mm Roller | Optional | Optional | |
| 1.2m Pro Cut ISMP with 115mm Roller | Optional | Optional | |
| 1.2m Pro Cut ISMP with 150mm Roller | Optional | Optional | |
| 2m HD Head | Optional | Optional | |
| Accessories | |||
| Road Lights | Standard | Standard | |
| Debris Blower | Optional | Optional | |
| Warning Arrow – Magnetic/Fixed | Optional | Optional | |
| Cab Guard Kit | Standard | Standard | |
Controls
| MODELS | 7.25m T (23’9″) | 8.0m T (26’3″) | |
| Controls | |||
| Cable Control (CC) | Optional | Optional | |
| Low Pressure Hydraulics (LPH) | Not Available | Not Available | |
| Electronic Proportional Control (EPP) | Optional | Optional | |
| Intelligent Control System (ICS) | Standard | Standard | |
| Cable Rotor Reverse | Standard | Standard | |
| Electronic Rotor Reverse | Optional | Optional | |
