RBF-2C
Tiger RBF-2C Rear Boom Flail Mower with Offset
With hydraulic side shift of 2’6″, the RBF-2C series of flail mowers have a cutting width of either 63 or 80 inches. The RBF-2C is capable of cutting in a 140° arc from 90° above to 50° below horizontal. Mechanical break away protection features auto returning.
Features Include:
- Reach Out: Up to 12'
- Cutting Head Width: 63" or 80"
- Ground Roller: 6"
- Mechanical Break Away
Requirements :
- 55 Horsepower Minimum Tractor
- PTO 540/1,000 Cat. II Hitch
- 2 Hydraulic Outlets
Specifications
Options
Photos
Specifications
| MODEL | RBF 2C-63 | RBF 2C-80 |
| Cut Width | 63″ | 80″ |
| Reach Out from Center | 10′ 7″ | 12′ |
| Head Rotation | 140° (+90° to -50°) | 140° (+90° to -50°) |
| Break Away | Mechanical | Mechanical |
| Hitch | Category II | Category II |
| PTO | 540/1000 | 540/1000 |
| Hyd. Outlets | 2 | 2 |
| * Minimum Tractor Power | 60 HP | 60 HP |
| * Minimum Tractor Weight | 4500 lbs | 4500 lbs |
| Machine Weight | 1895 lbs | 2005 lbs |
| Flail Type | Boot type – Forged | Boot type – Forged |
| Number of knives | 44 | 68 |
| Additional front & left rear ballast may be required for desired tractor stability. Ballast Not included. | ||
Options
Cutter Heads Available:
- Grass Cutter Head: Drop forged steel cutter knives can cut material up to 1½” diameter. Safety rubber flap located on the front and rear of the cutter assembly. Adjustable rear roller designed for cut height of up to 6″. Unique sliding mount system gives added cutter arc for cutting in ditches or on slopes.

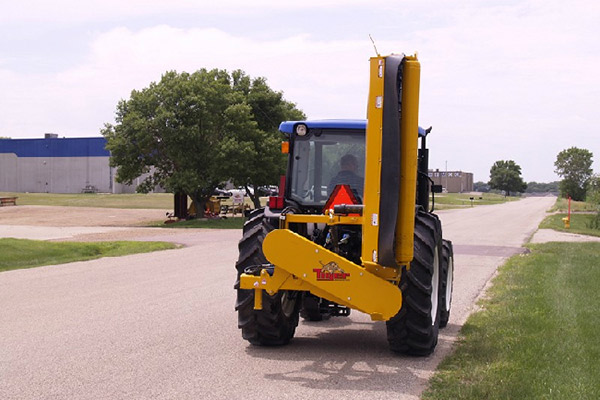

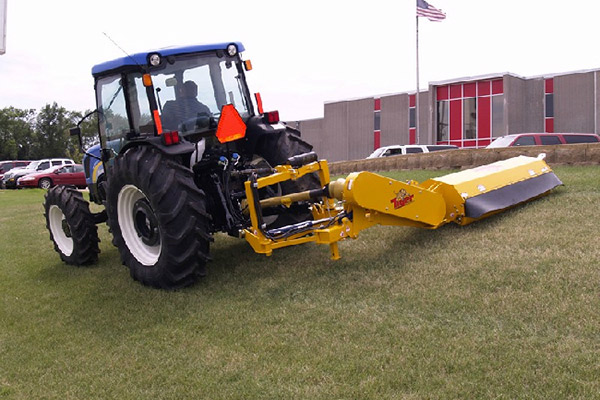

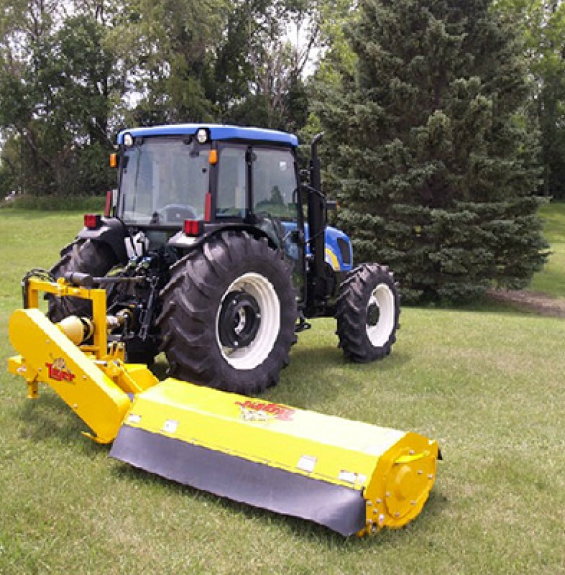

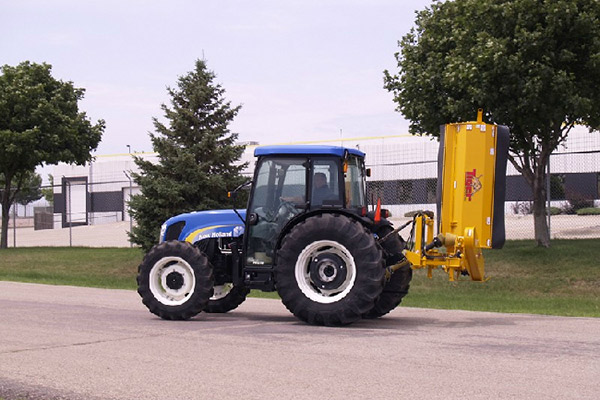

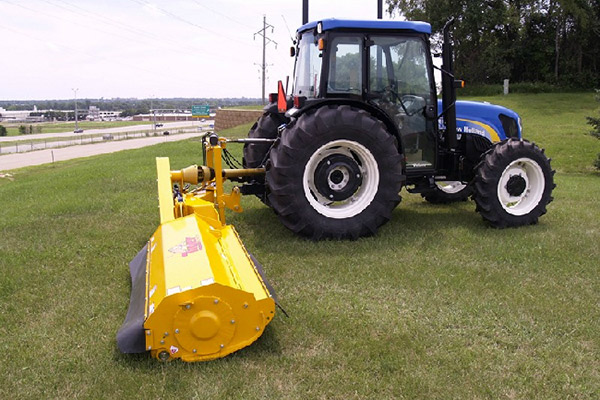

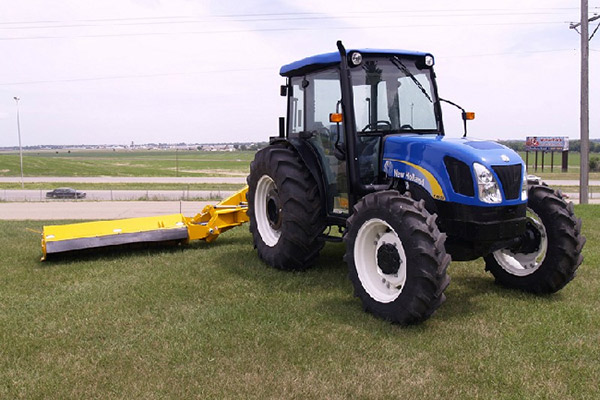

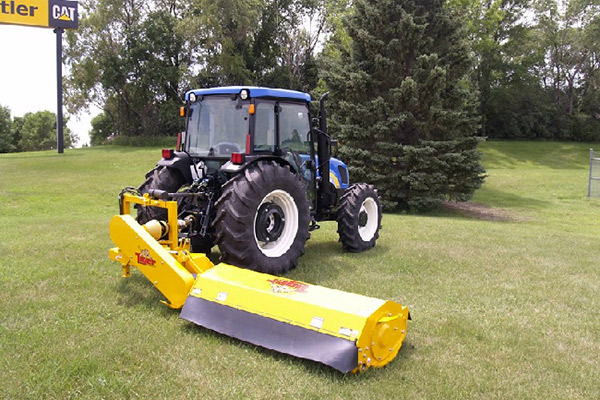

Photos
